Receiver Drier Element: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Climate Control System Health And Safety Precautions
  2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging
  3. Refer to: Jacking And Lifting - Overview

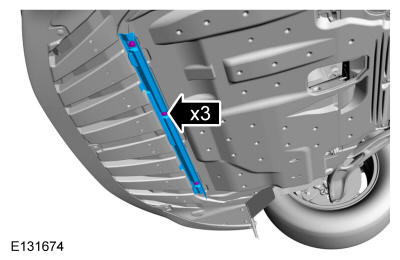

  4. GFD224076Courtesy of FORD MOTOR COMPANY

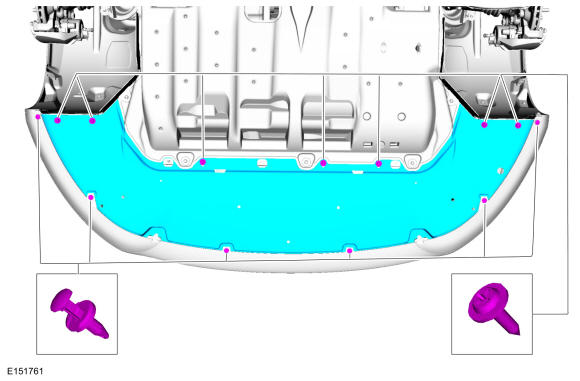

  5. GFD223562Courtesy of FORD MOTOR COMPANY

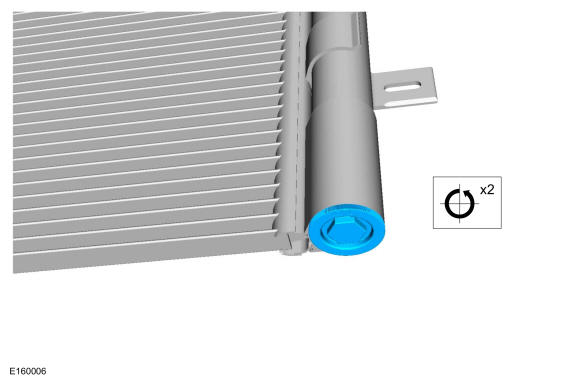

  6. GFD224077Courtesy of FORD MOTOR COMPANY

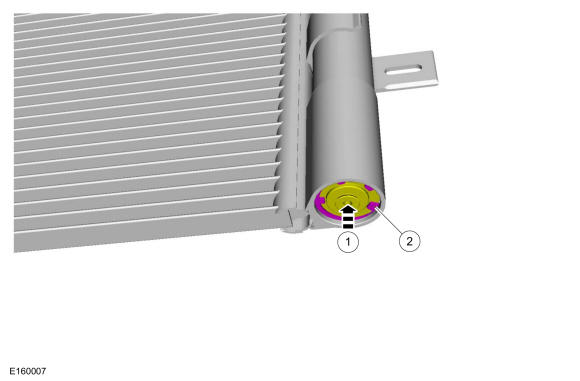

  7. GFD224078Courtesy of FORD MOTOR COMPANY

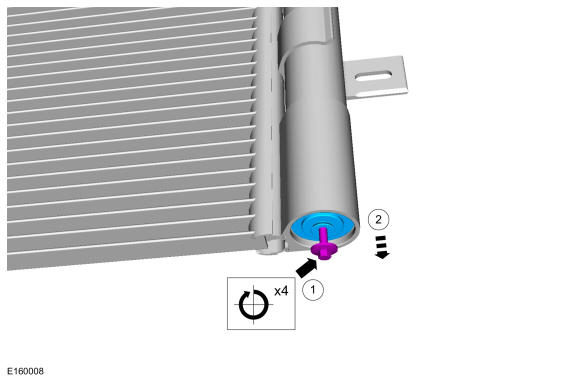

  8. GFD224079Courtesy of FORD MOTOR COMPANY

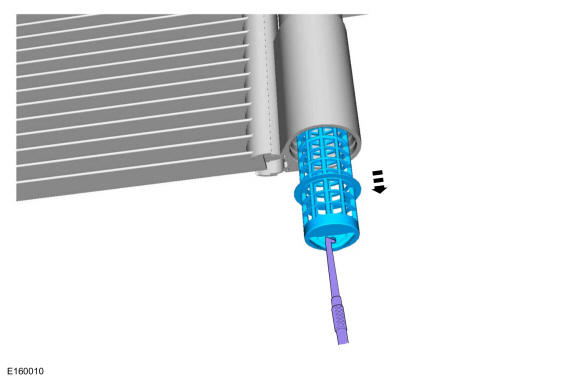

  9. GFD224080Courtesy of FORD MOTOR COMPANY
