Powertrain Control Module (PCM): Removal

• 1.


  NOTE: This step is only necessary when installing a new component.

  Download the module information to the diagnostic tool using the programmable modules installation routine. Use the General Equipment: Ford Diagnostic Equipment

• 2.

  Disconnect the battery connections. Refer to: Battery Disconnect and Connect .

• 3.

  Remove the fender splash shield. Refer to: Fender Splash Shield .

Vehicles without PCM security shield

• 4.

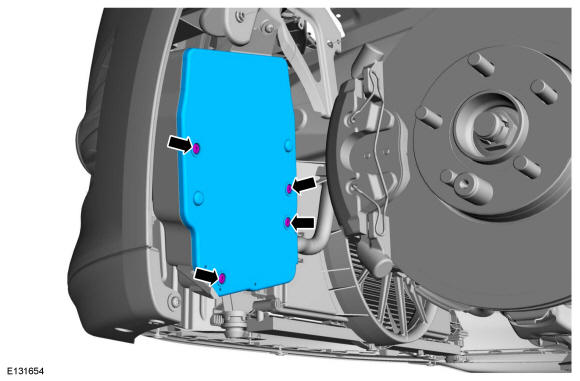

  Remove the retainers and the PCM housing cover.

Courtesy of FORD MOTOR COMPANY

Vehicles with PCM security shield

• 5.

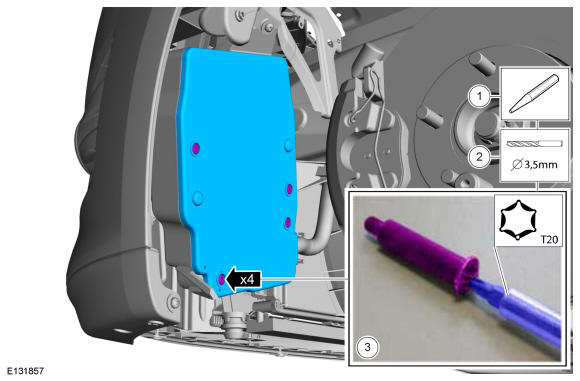

  Remove the retainers and the PCM housing cover. Use the General Equipment: Center Punch Use the General Equipment: 3.5 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

All vehicles

• 6.

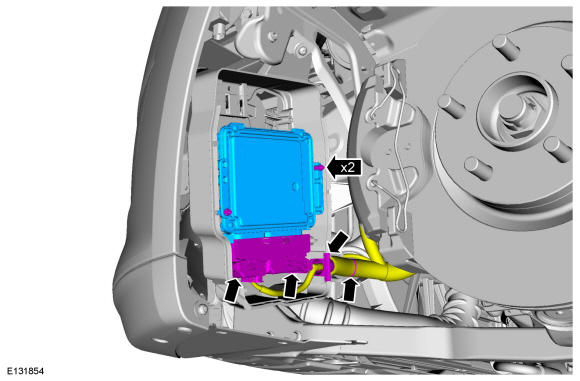

  • Disconnect the retainers and the PCM electrical connectors.
  • Remove the retainers and the PCM.
