Powertrain Control Module (PCM): Installation

WARNING: This page is about a different variant/trim than selected.

1.

To install, reverse the removal procedure.

Vehicles with PCM security shield

2.

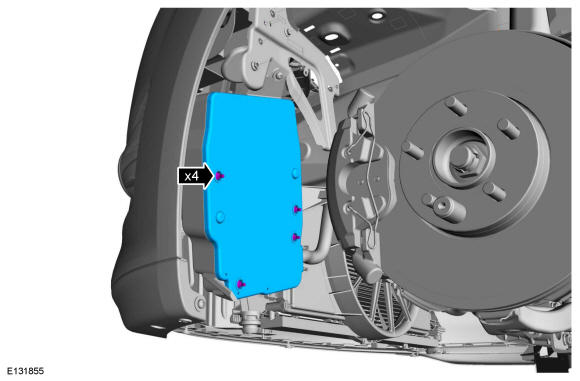

Install the PCM housing cover and tighten the shear bolt until the head is sheared off.

GFD152271

Courtesy of FORD MOTOR COMPANY

All vehicles

3.

NOTE: This step is only necessary when installing a new component.

Upload the module information from the diagnostic tool to the module using the programmable modules installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment

4.

Reprogram the PATS. Carry out the parameter reset procedure. Refer to: Passive Anti-Theft System (PATS) Parameter Reset .

5.

After completing the repairs, perform the misfire monitor neutral profile correction procedure.
