Ignition Coil-On-Plug: Removal
- 1.
Remove the engine appearance cover retaining nuts, remove the engine appearance cover retaining bolts and then remove the engine appearance cover.
- 2.NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.
- 1.

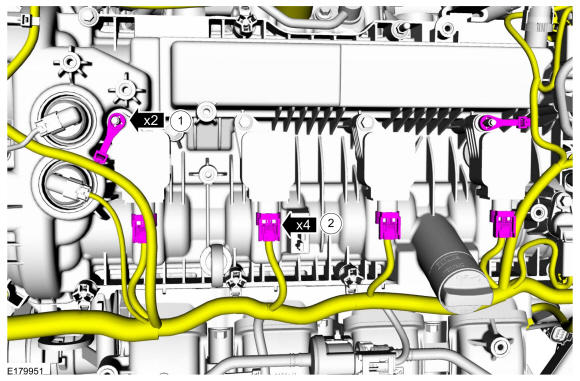

Disconnect the wiring harness retainers.
- 2.
Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect ignition coil-on-plug electrical connectors.
- 1.
- 3.NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
- 1.

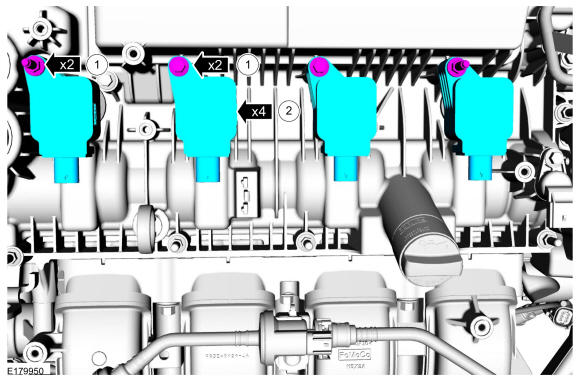

Remove the ignition coil-on-plug mounting bolts.
- 2.
Remove the ignition coil-on-plugs.
- 1.
