VC Codes

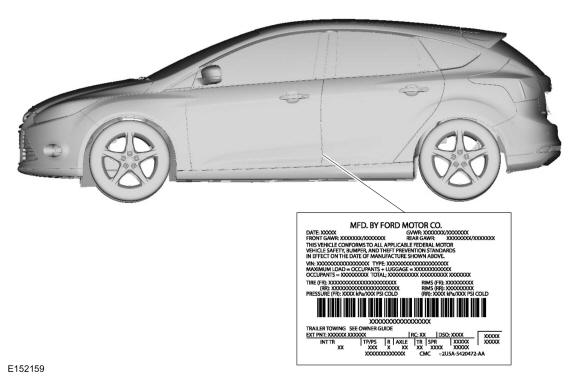

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

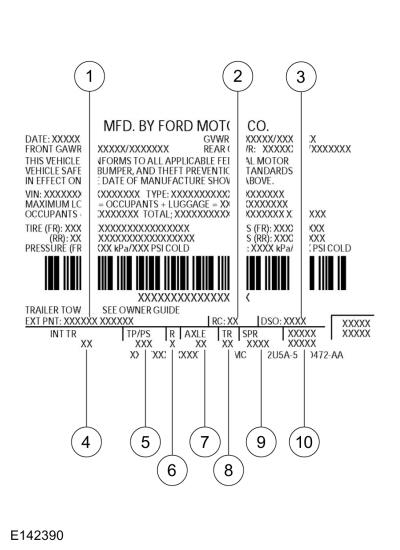

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint stripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration information |
Paint Code
Paint codes are listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- B9 - Stealth - RS only
- DW - Nitrous - RS only
- G1 - Shadow Black
- HI - Tectonic Silver
- J7 - Magnetic
- L6 - Kona Blue
- LP - Tangerine Scream
- PQ - Race Red
- RR - Ruby Red (tinted clear coat)
- UG - White Platinum (tri-coat)
- UX - Ingot Silver Metallic
- YZ - Oxford White
- Z2 - Frozen White - RS only
- Z9 - Blue Candy (tinted clear coat)
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 3 - PUR/Torino leather
- 8 - Protection cloth/Torino leather
- 9 - Windsor leather
- F - Torino leather
- K - Boost/View cloth
- M - Lux cloth - ST only
- N - Eton cloth/Salerno leather - RS only
- P - Dinamica/Salerno leather - RS only
- S - Fifth Avenue cloth - BEV only
- Y - Spectral cloth
Interior Trim Color
- G - Charcoal Black/Yellow - ST only
- L - Medium Light Stone
- R - Charcoal Black/Performance Blue - ST only
- T - Medium Soft Ceramic
- U - Light Stone - BEV only
- W - Charcoal Black
- 4 - Charcoal Black/Ebony - RS only
- 5 - Smoke Storm
- 9 - Charcoal Black/Performance Blue - RS only
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 1 - AM/ FM stereo, CD player, SYNC and 4 speakers
- 3 - AM/ FM stereo, CD player, SYNC and 6 speakers
- 4 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), SYNC
- 5 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC II and navigation
- 6 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC II and navigation
- 8 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC III, navigation and 5th channel - BEV only
- 8 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC II, navigation and 5th channel - RS only
- J - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC III, navigation and 5th channel - RS only
- K - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition), SYNC III, navigation - RS only
Axle Codes
The following lists available axle ratios:
- AU - 3.850/4.278 ratio
- BS - 7.816 ratio
- CA - 4.063/2.955 ratio
- CL - 3.44 ratio
- CP - 4.067/2.905 ratio
- KB - 3.82 ratio
- MC - 4.06 ratio - RS only
Transmission Codes
Available transmissions are as follows:
- B - 6-speed manual (B6)
- H - 1-speed automatic - BEV only
- V - 6-speed manual (MMT6)
- W - 6-speed automatic (DCPS)
- Z - 6-speed manual (MTX75)
- 7 - 6-speed automatic (6F15)
Spring Codes
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Springs
- BB - CV61-5310-DG
- DD - BV61-5310-MD
- FF - BV61-5310-NF
- GG - BV61-5310-NG
- SS - CV60-5310-SG
Rear Springs
- BB - CV61-5560-DG
- DD - BV61-5560-MD
- FF - BV61-5560-NF
- GG - BV61-5560-NG
- SS - CV61-5560-SG
