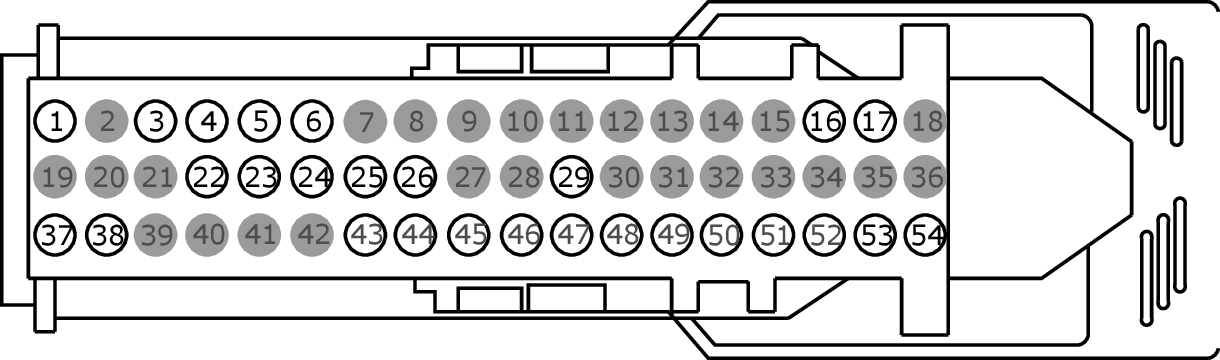

Connector End View (C3342) - ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
Connector: C3342
Description
ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
Color
BK
Harness
14401
Base Part #
14D212
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP06 (BN-RD) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VME80 (VT-GN) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 4 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 5 | VMM13 (BN) | 22 | MICROPHONE - PHONE/VOICE CONTROL + | |
| 6 | RMM13 (BU) | 22 | MICROPHONE - PHONE/VOICE CONTROL D | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 17 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | DME52 (*) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D | |
| 23 | VME53 (VT-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + | |
| 24 | RME53 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - | |
| 25 | VME52 (BU) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + | |
| 26 | RME52 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | DMM13 (*) | 20 | #N/A | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | * | * | Not Used | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | GD135 (BK-GY) | 20 | GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T) | |
| 38 | GD135 (BK-GY) | 20 | GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T) | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | * | * | Not Used | |
| 43 | * | * | Not Used | |
| 44 | * | * | Not Used | |
| 45 | * | * | Not Used | |
| 46 | * | * | Not Used | |
| 47 | * | * | Not Used | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | * | * | Not Used | |
| 51 | * | * | Not Used | |
| 52 | * | * | Not Used | |
| 53 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 54 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
