Powertrain Control Module (PCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.NOTE: This step is only necessary when installing a new component.

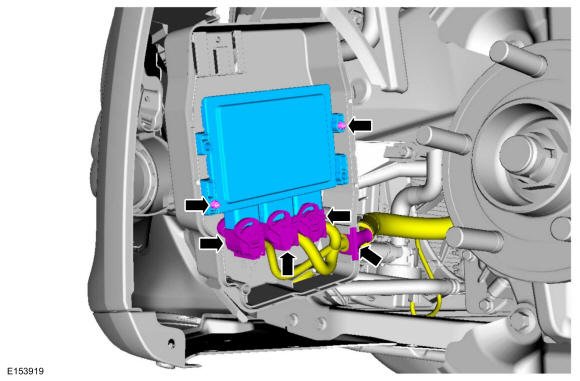

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment
- 3.

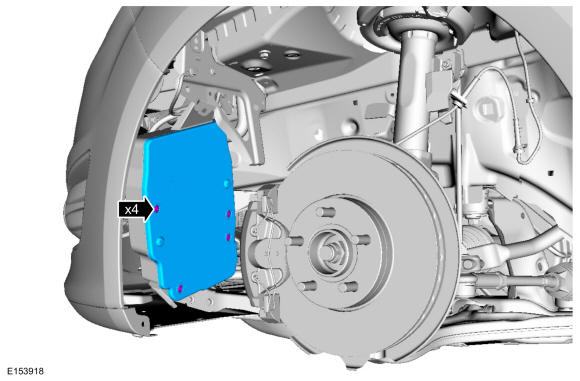

Remove the LH inner fender splash shield. Refer to: Fender Splash Shield .
