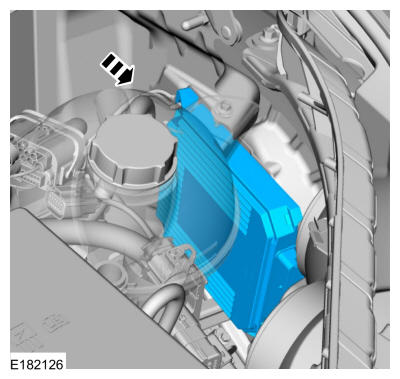

Transmission Control Module (TCM) - 3.2L Duratorq-TDCi (148kW/200PS) - Puma: Installation

1.

Install the TCM.

GFD75669

Courtesy of FORD MOTOR COMPANY

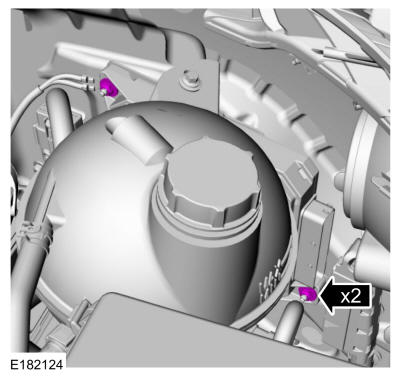

2.

Install the TCM nuts.
Torque: 97 lb.in (11 Nm)

GFD75667

Courtesy of FORD MOTOR COMPANY

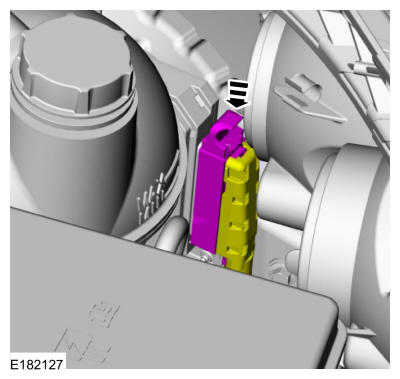

3.

NOTE: Keep the TCM electrical connector straight when connecting it or damage the connector terminals can occur.

Connect the TCM electrical connector and slide the lock tab in to lock the connector.

GFD75670

Courtesy of FORD MOTOR COMPANY

4.

NOTE: This step is only necessary when installing a new component.

Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

5.

Using the scan tool, download the solenoid body strategy. Refer to: Transmission Strategy Download .
