Connector End View (C548) - DRIVER DOOR LATCH
Connector:C548
Description
DRIVER DOOR LATCH
Color
BK
Harness
14A631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL02 (VT-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER LOCK | |
| 2 | CPL51 (BU-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |

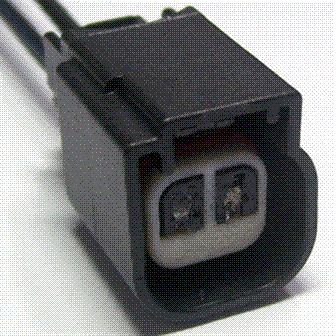

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1052 |
Service Part Number: 3U2Z-14S411-JLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses A/C Compressor Clutch Actuator - Door Lock Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Actuator - Door Lock - RH - Sliding Door Actuator - Liftgate Glass Lamp - Headlamp - Low Beam Lamp - License Lamp - Side Marker Motor - Power Window - LH - Rear Pump - Fuel (External) Sensor - Side Impact Solenoid - Brake Shift Park Interlock Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear |
