Connector End View (C138) - LOW WASHER FLUID WARNING INDICATOR SWITCH
Connector:C138
Description
LOW WASHER FLUID WARNING INDICATOR SWITCH
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMC20 (VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID | |
| 2 | GD125 (BK) | 20 | GROUND - FENDER FRONT RIGHT # 3RD POINT |

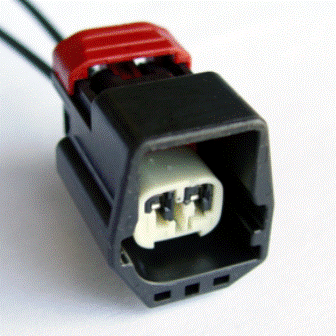

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-273 |
Service Part Number: 3U2Z-14S411-GVA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat |
