Receiver Drier Element: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

2.

Recover the refrigerant. REFER to: Air Conditioning (A/C) System Recovery, Evacuation and Charging

3.

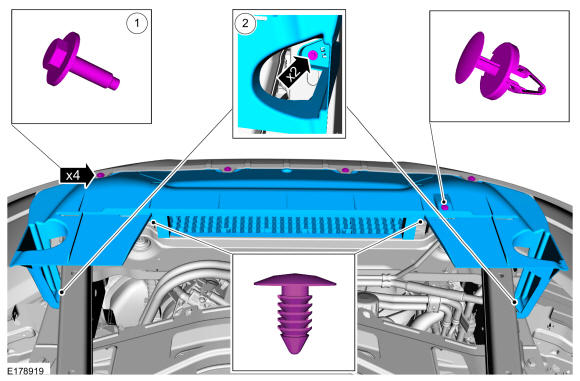

Remove the push pins, retainers and the underbody shield.
Torque

1: 97 lb.in (11 Nm)

2: 44 lb.in (5 Nm)

GFD73191

Courtesy of FORD MOTOR COMPANY

4.

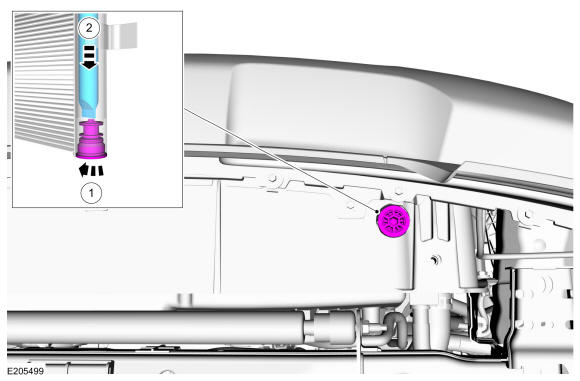

Remove the receiver drier plug and the receiver drier element.
Torque

: 16 lb.ft (22 Nm)

GFD76236

Courtesy of FORD MOTOR COMPANY
