Removal And Installation: Condenser: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL position it on a hoist. REFER to: Jacking and Lifting - Overview

2.

Recover the refrigerant. REFER to: Air Conditioning (A/C) System Recovery, Evacuation and Charging

3.

Remove the front bumper cover. REFER to: Front Bumper Cover

4.

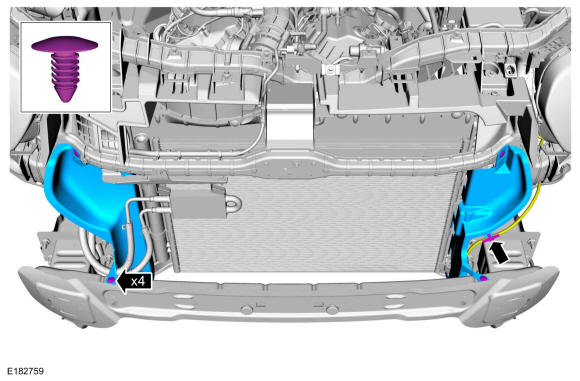

Detach the wiring harness retainer and remove the push pins.

GFD76220

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Make sure that all openings are sealed.

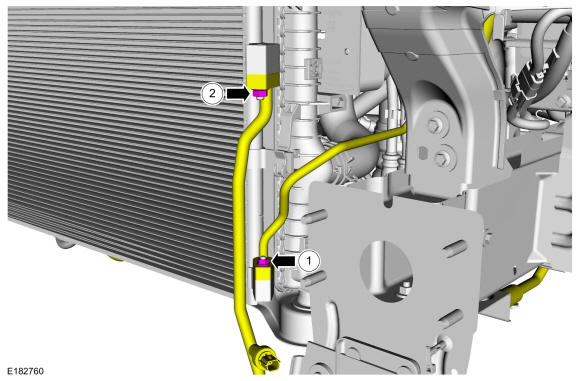

Remove the nuts and disconnect A/C lines from the condenser.

Torque

1: 71 lb.in (8 Nm)

2: 133 lb.in (15 Nm)

GFD76221

Courtesy of FORD MOTOR COMPANY

6.

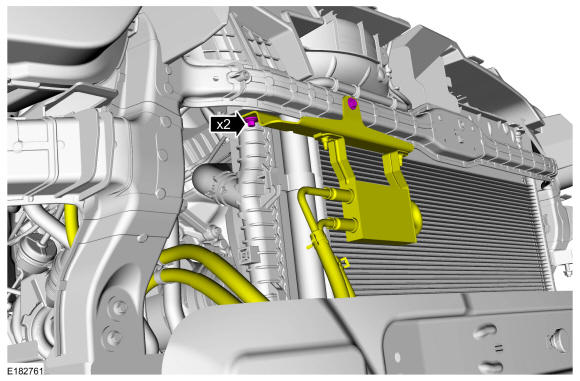

Remove the bolts and position the power steering cooler aside.
Torque

: 62 lb.in (7 Nm)

GFD76222

Courtesy of FORD MOTOR COMPANY

7.

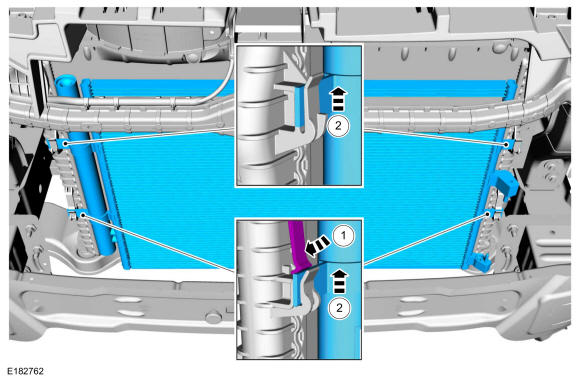

Release the tabs and remove the condenser.

GFD76223

Courtesy of FORD MOTOR COMPANY
