Jacking Points
All Vehicles
WARNING:
Never get underneath a vehicle that is supported only by a jack. The jack could unintentionally lower. Always support vehicle with floor stands. Failure to follow these instructions may result in serious personal injury.
WARNING:
Only raise the vehicle when positioned on a hard, level surface. Attempting to raise the vehicle on an uneven or soft surface may result in vehicle slipping or falling from the jack or jackstand. Failure to follow this instruction may result in serious personal injury.
WARNING:

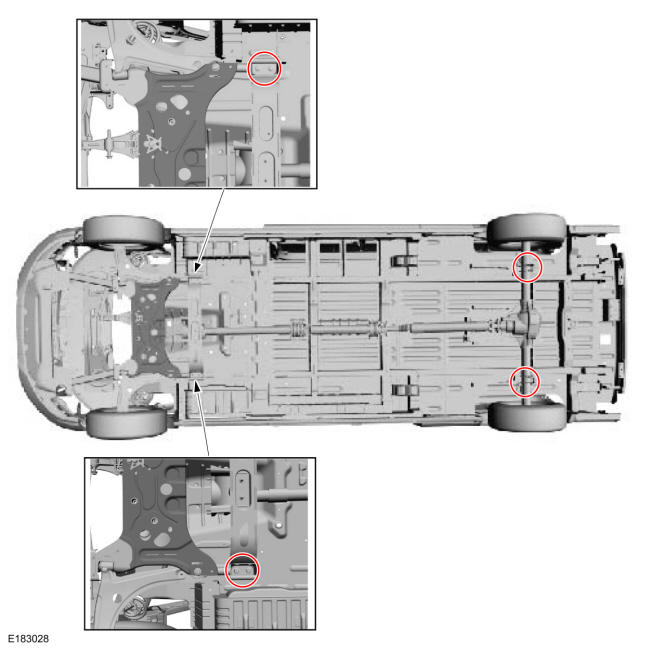

Before lifting the vehicle with a jack, make sure the jack capacity is adequate for the vehicle weight, including any vehicle cargo or modifications. Identify the correct jacking points in illustration. Position the vehicle on a hard, level surface. After jacking, always support vehicle with jack stands. Never get under a vehicle supported only by a jack. Set the parking brake and block all wheels remaining on the ground. Failure to follow these instructions may result in unintended vehicle movement and serious personal injury or death.
NOTE:
Do not attempt to use jack pressure on either the front bumper or the rear bumper on any vehicle. Damage to bumper covers will occur.
