Windshield Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

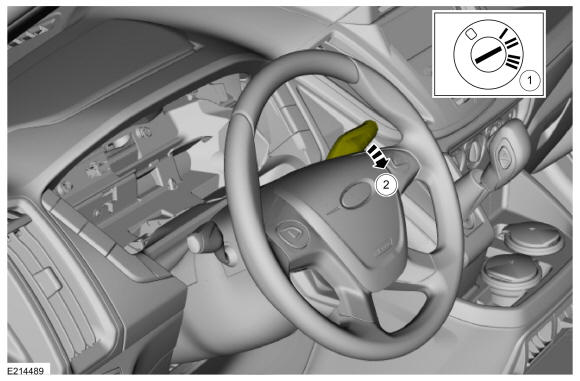

1.

Verify the wiper motor is in the PARK position.
1. 1.

  Set the ignition switch to the ON position.
1. 2.

  Set the windshield wiper switch to run the wipers one complete cycle.

Courtesy of FORD MOTOR COMPANY

2.

Install the windshield wiper pivot arms.
1. 1.

  Align the windshield wiper blades with the marks on the windshield.
1. 2.

  Install the windshield wiper pivot arm nuts.
  Torque: 26 lb.ft (35 Nm)
1. 3.

  Turn the ignition switch off.

Courtesy of FORD MOTOR COMPANY

3.

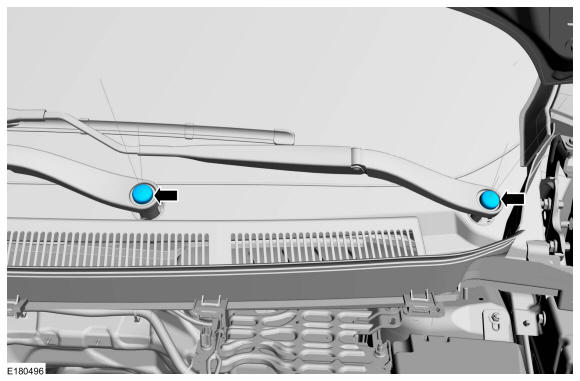

Install the windshield wiper pivot arm nut cover.

Courtesy of FORD MOTOR COMPANY
