Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

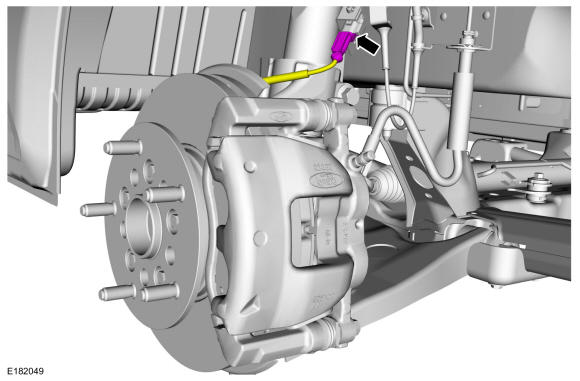

Disconnect the front wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

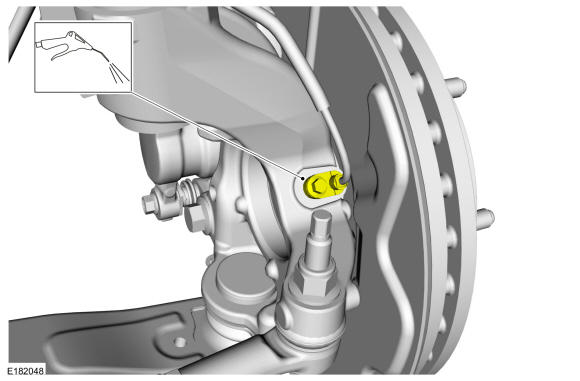

Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

4.

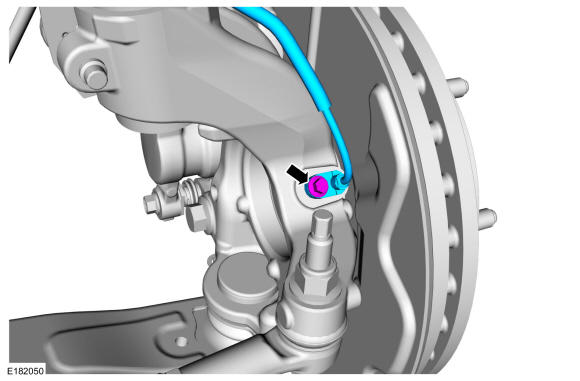

Remove the bolt and the front wheel speed sensor.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
