Overhead Console: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

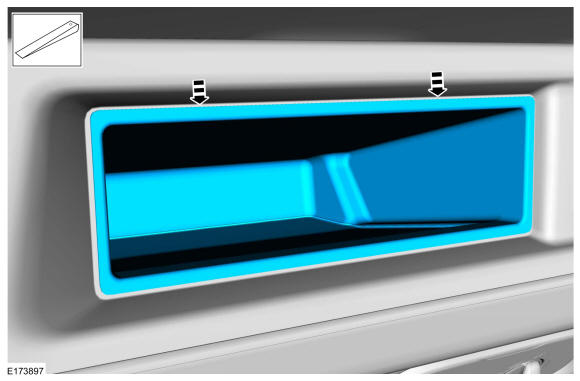

1.

NOTE: On both sides.

Remove the overhead console storage compartment bin.

GFD147097

Courtesy of FORD MOTOR COMPANY

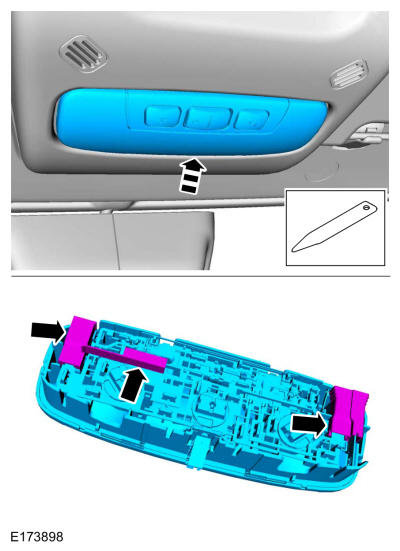

2.

Lower the dome lamp assembly, disconnect the 3 electrical connectors and remove the dome lamp assembly.

GFD147098

Courtesy of FORD MOTOR COMPANY

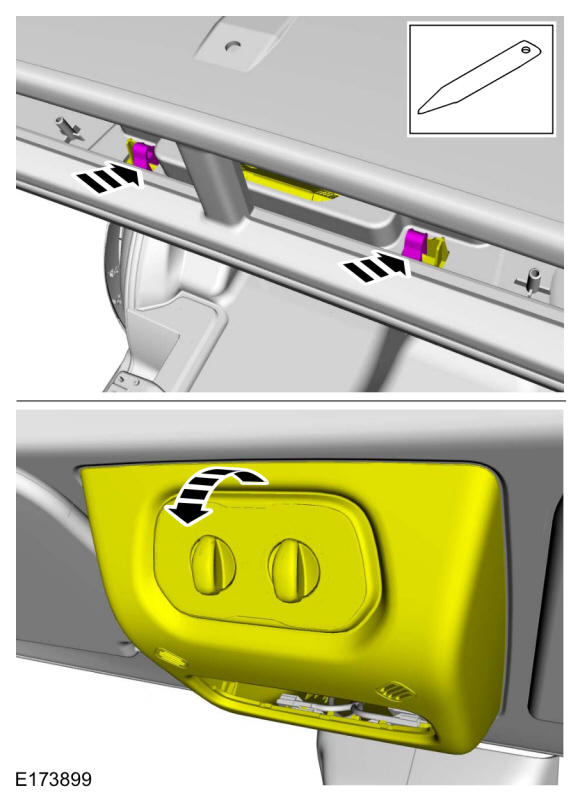

3.

Release the 2 tabs and rotate the overhead console assembly downward.

GFD147099

Courtesy of FORD MOTOR COMPANY

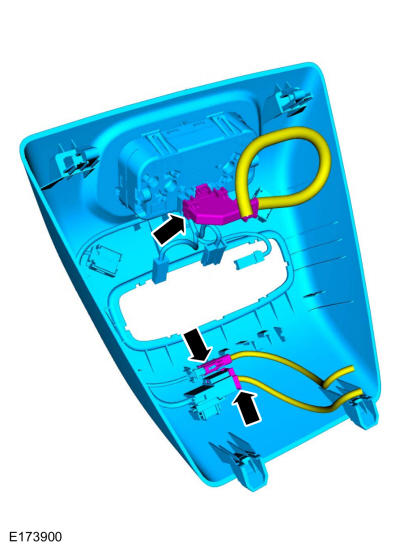

4.

Disconnect the 3 electrical connectors and remove the overhead console.

GFD147100

Courtesy of FORD MOTOR COMPANY

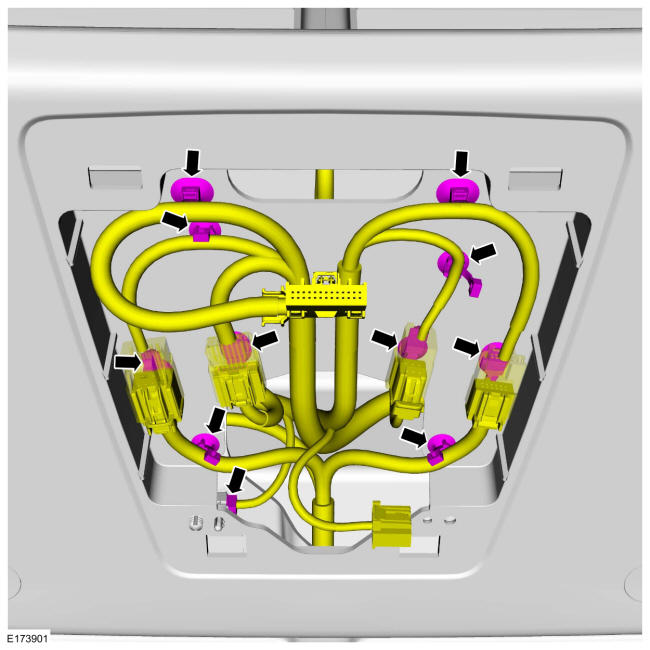

5.

Release the 10 harness retainers, disconnect the electrical connector and position the harness through the opening.

GFD147101

Courtesy of FORD MOTOR COMPANY

6.

NOTE: On both sides.

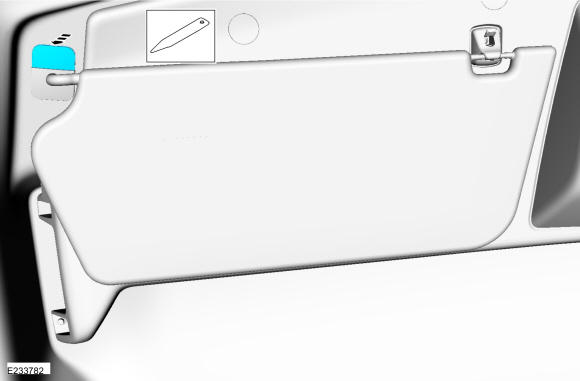

Remove the cover. Use the General Equipment: Interior Trim Remover

GFD147102

Courtesy of FORD MOTOR COMPANY

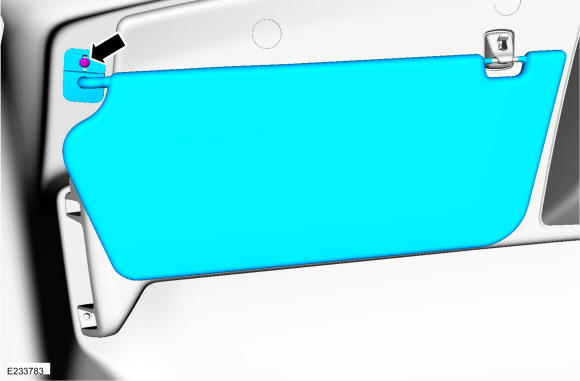

7.

NOTE: On both sides.

Remove the screw and the sunvisor.

GFD147103

Courtesy of FORD MOTOR COMPANY

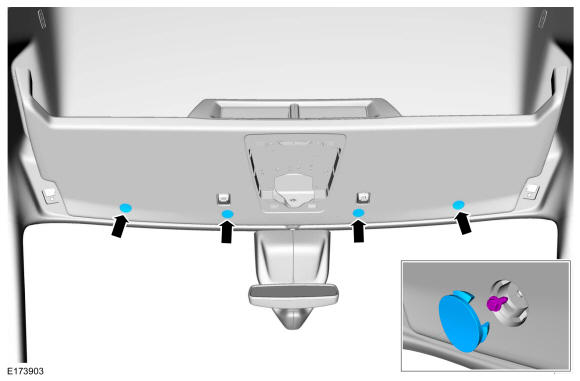

8.

Remove the 4 trim covers and remove the 4 screws.
Torque: 53 lb.in (6 Nm)

GFD147104

Courtesy of FORD MOTOR COMPANY

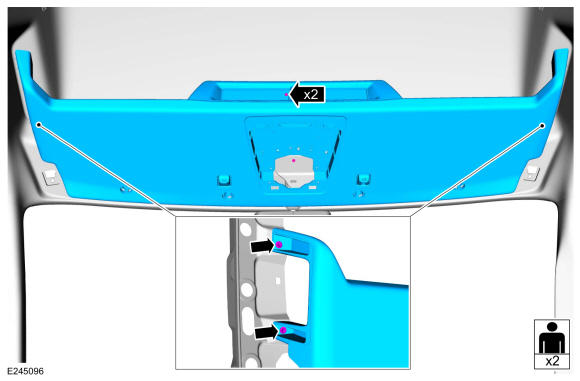

9.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the overhead console storage compartment or damage to the components may occur.

Remove the 6 screws and the overhead console storage compartment.

Torque: 53 lb.in (6 Nm)

GFD147105

Courtesy of FORD MOTOR COMPANY
