Power Distribution

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

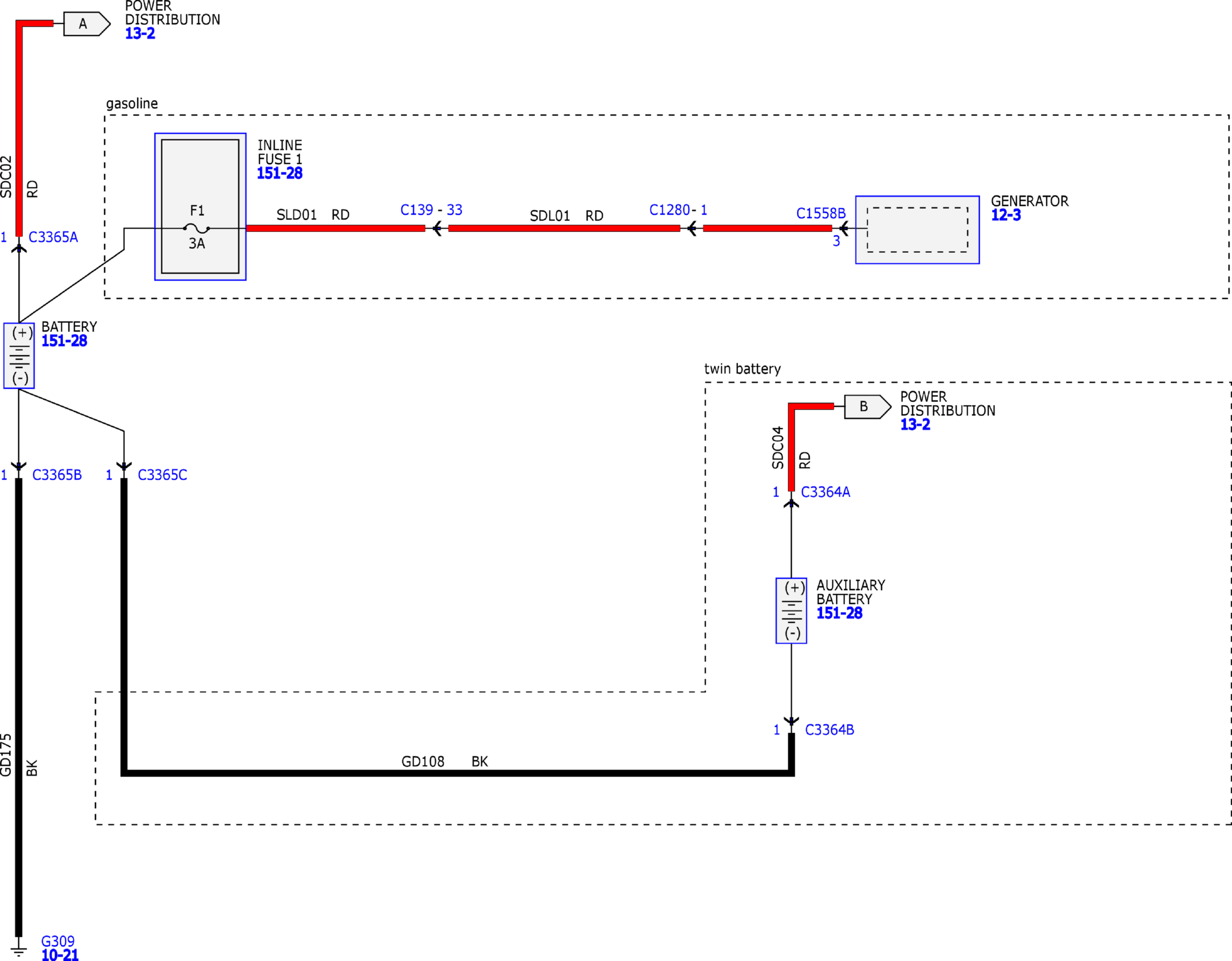

Fig 1: Power Distribution Wiring Diagram (1 of 65)

GFDW61630

Courtesy of FORD MOTOR COMPANY

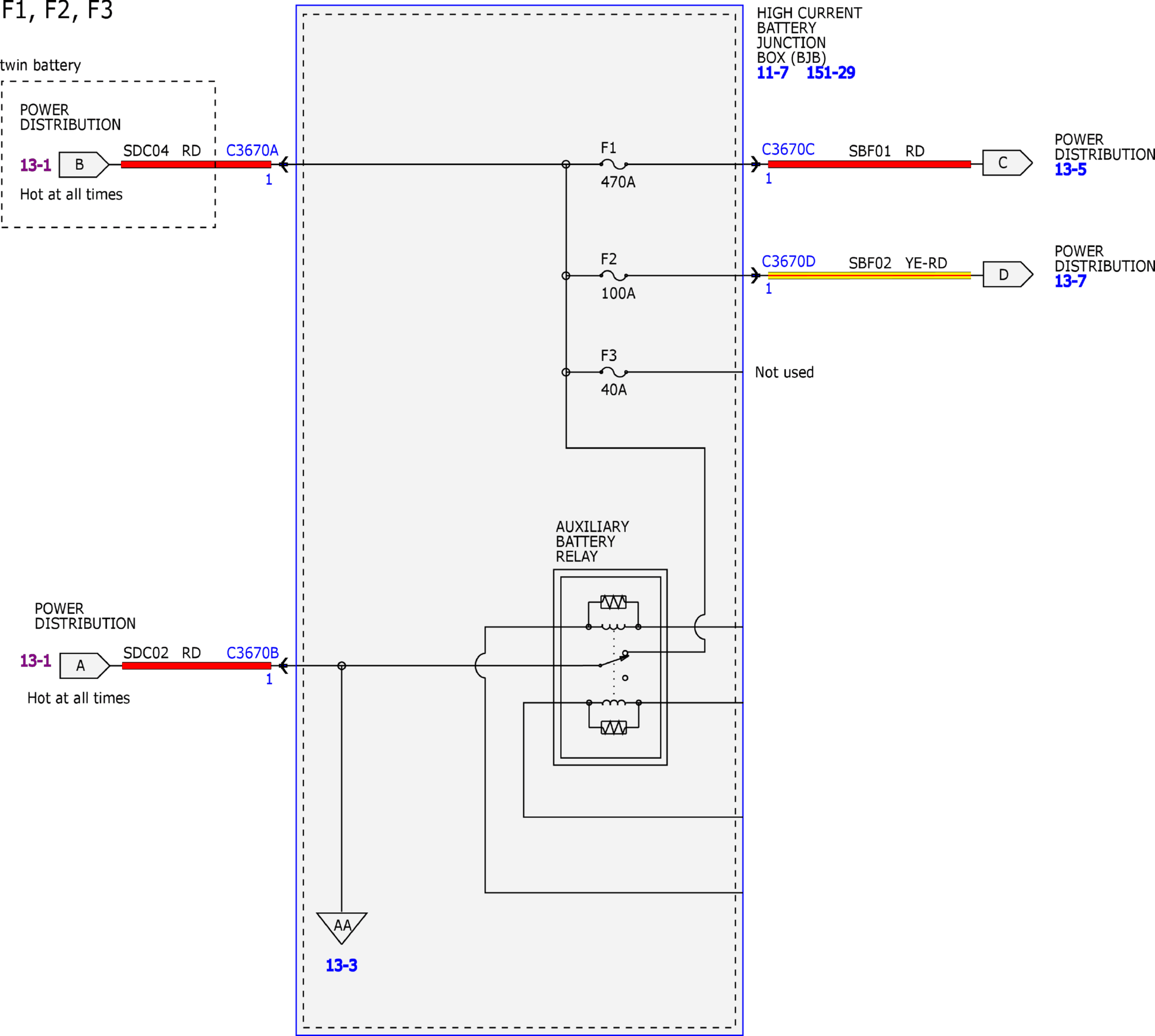

Fig 2: Power Distribution Wiring Diagram (2 of 65)

GFDW61631

Courtesy of FORD MOTOR COMPANY

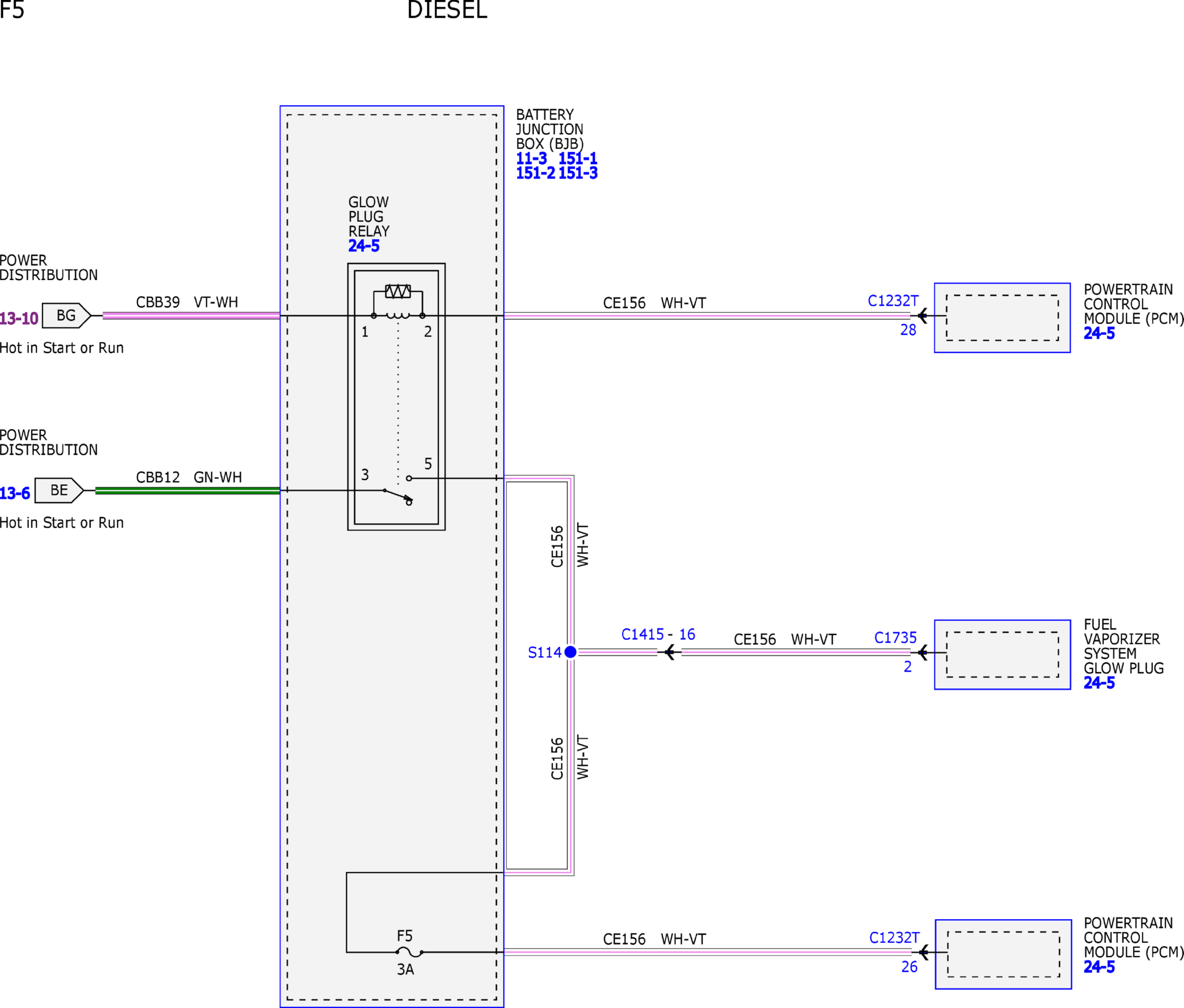

Fig 3: Power Distribution Wiring Diagram (3 of 65)

GFDW61632

Courtesy of FORD MOTOR COMPANY

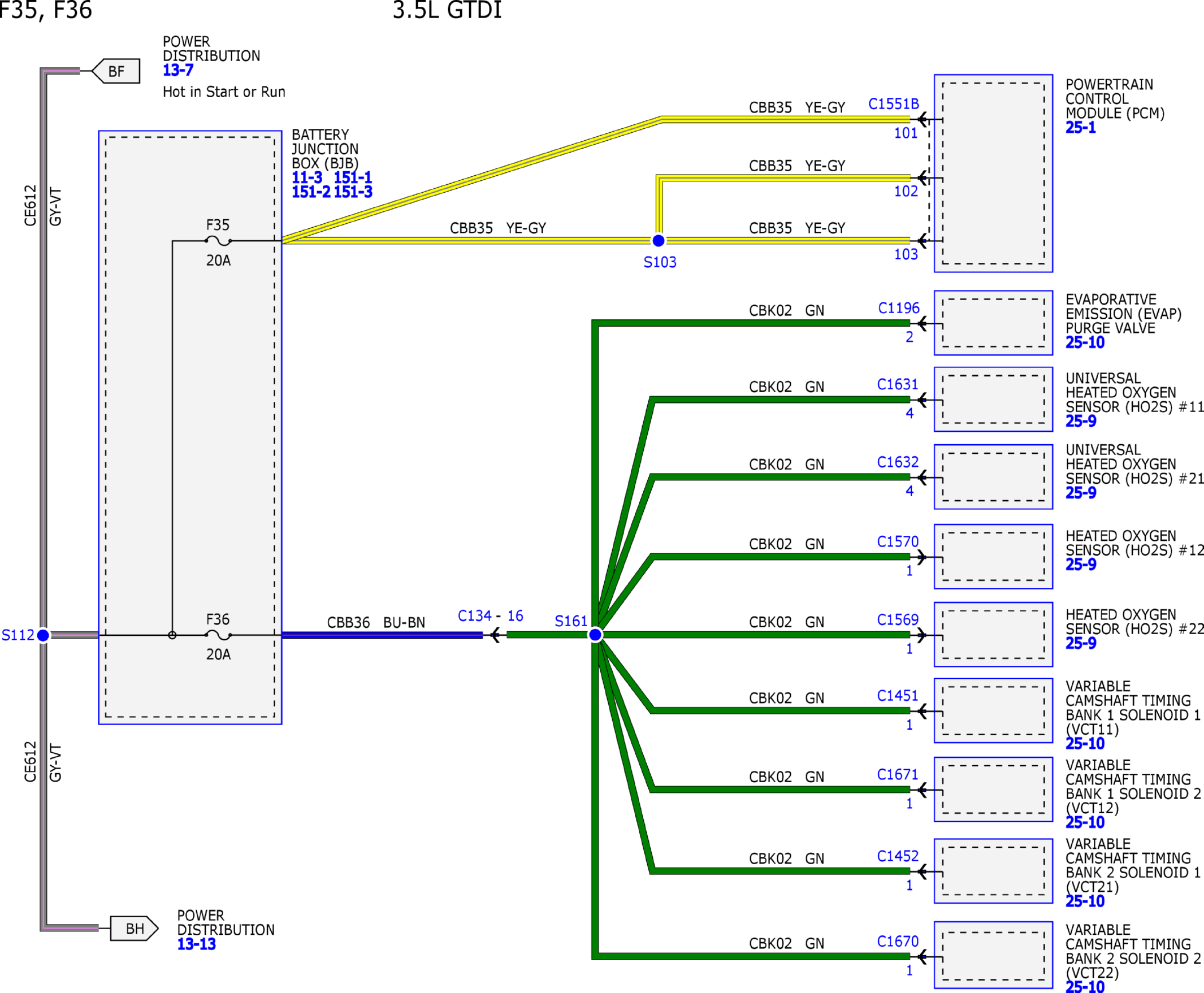

Fig 4: Power Distribution Wiring Diagram (4 of 65)

GFDW61633

Courtesy of FORD MOTOR COMPANY

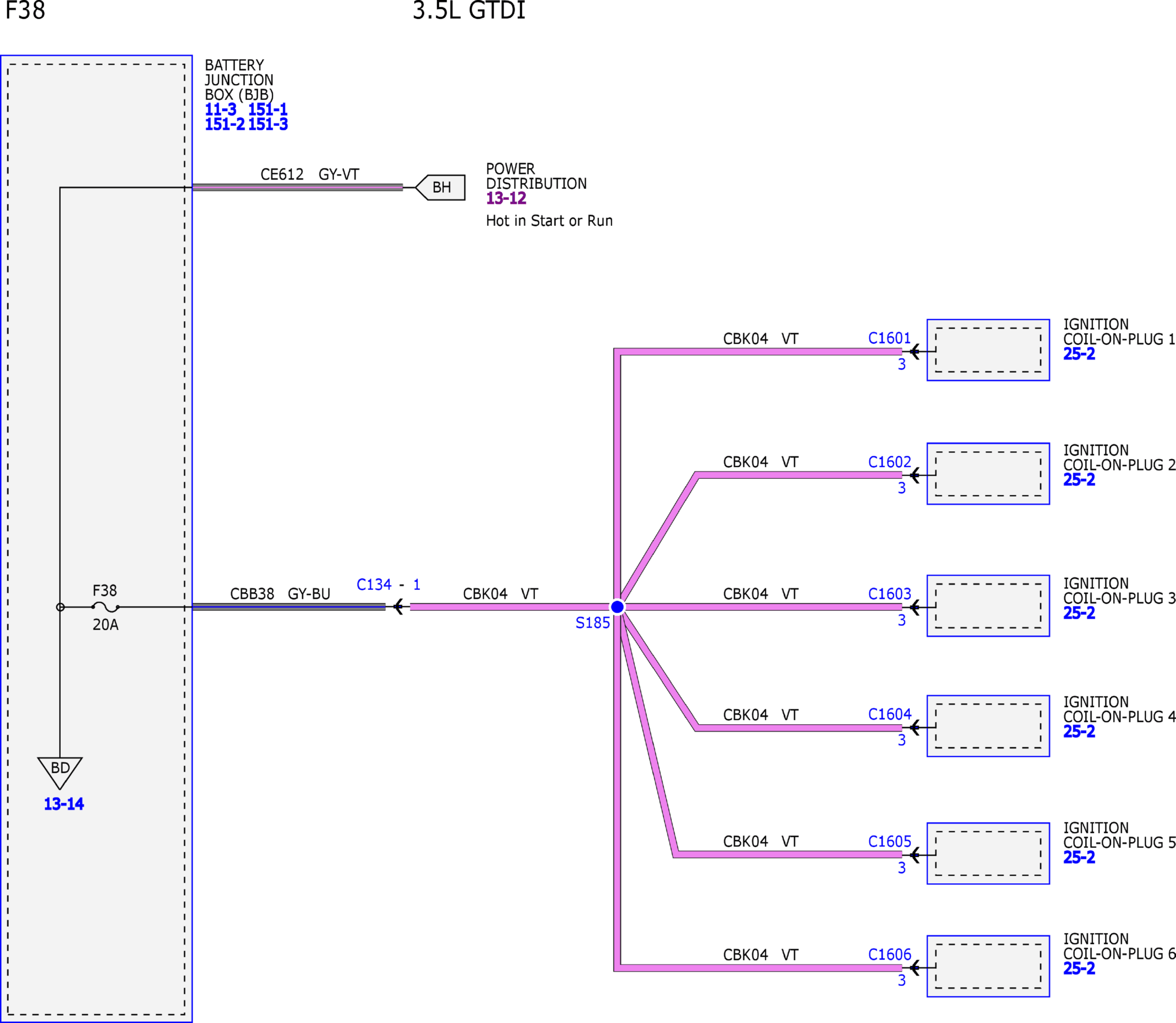

Fig 5: Power Distribution Wiring Diagram (5 of 65)

GFDW61634

Courtesy of FORD MOTOR COMPANY

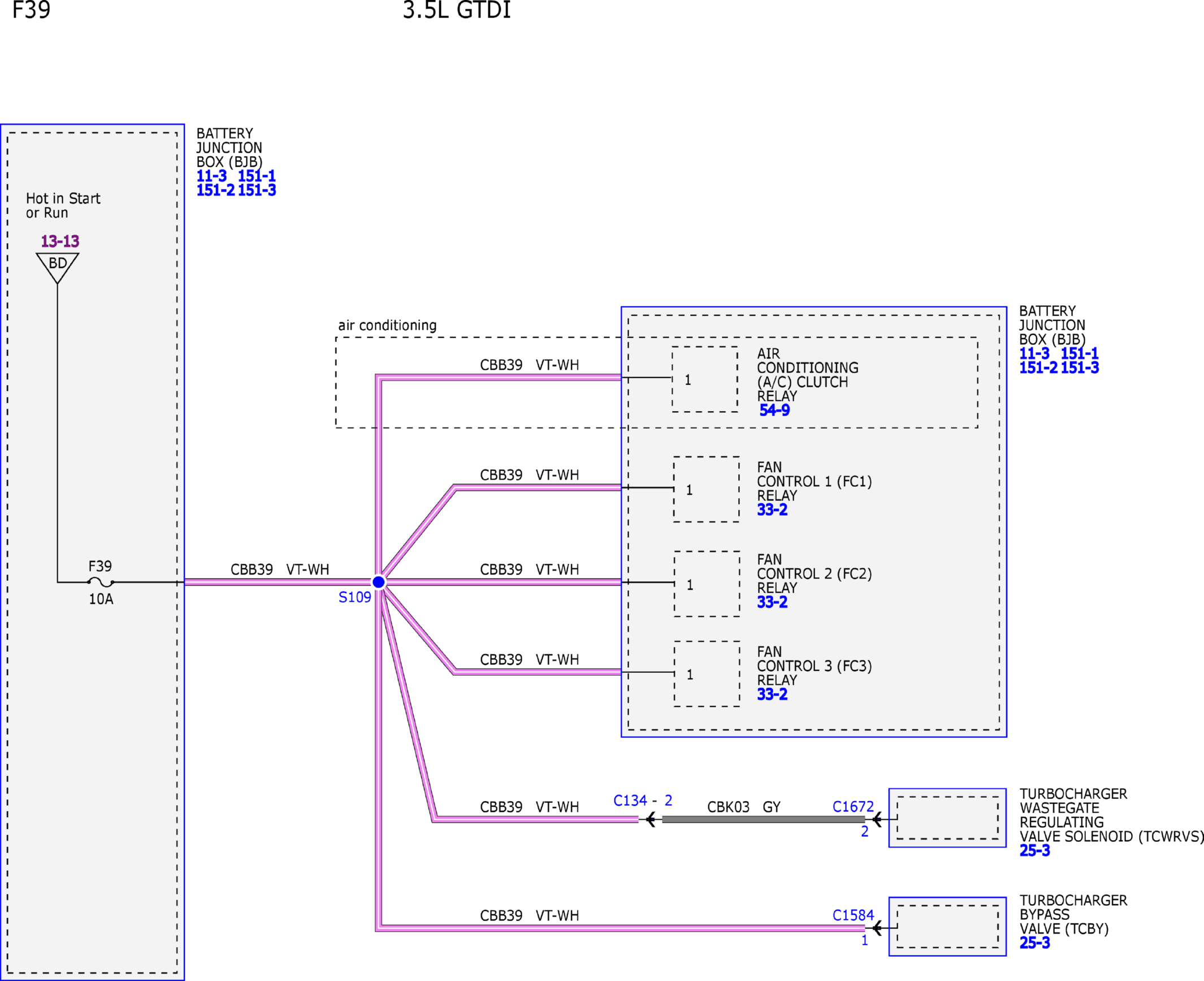

Fig 6: Power Distribution Wiring Diagram (6 of 65)

GFDW61635

Courtesy of FORD MOTOR COMPANY

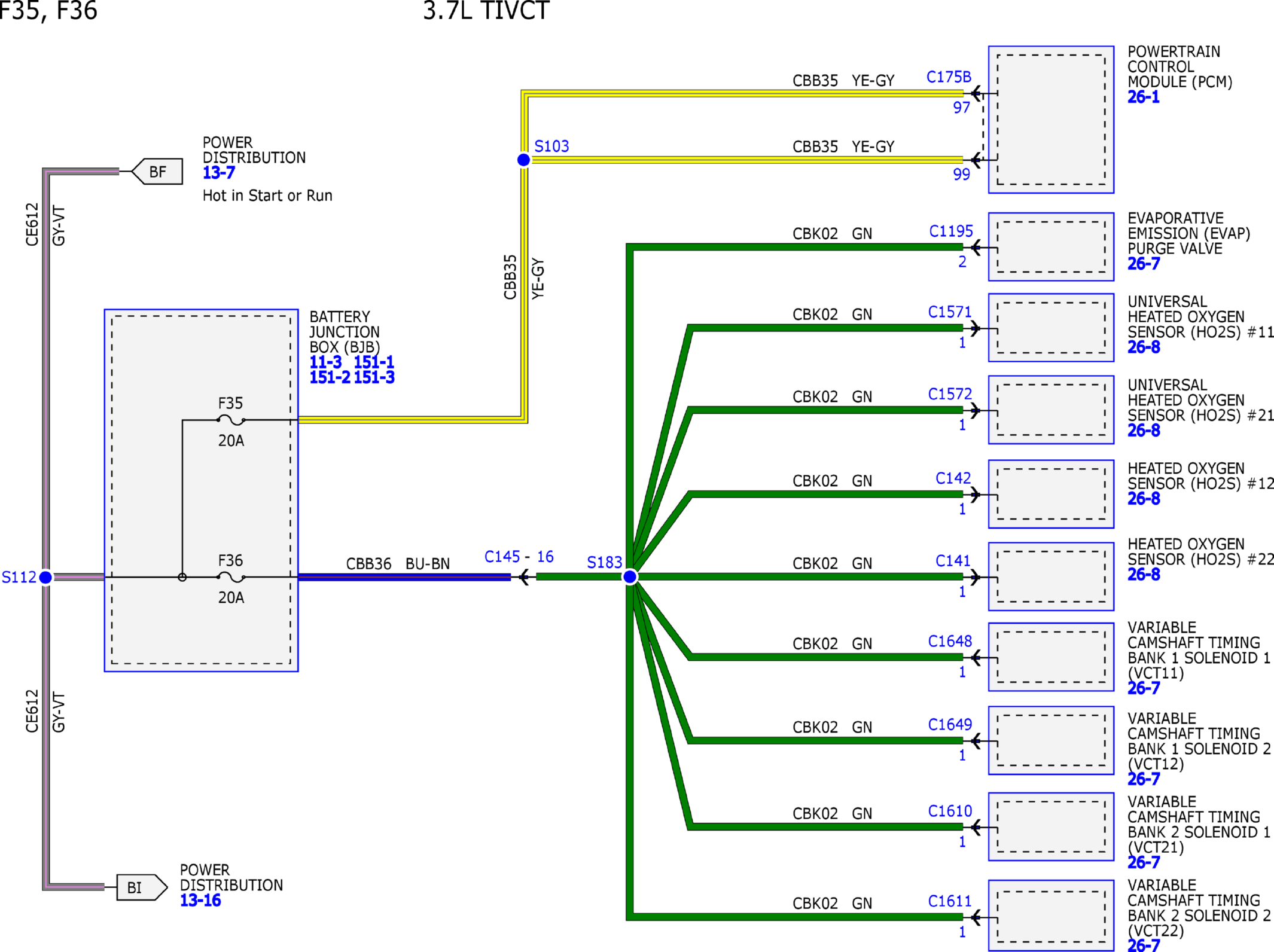

Fig 7: Power Distribution Wiring Diagram (7 of 65)

GFDW61636

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Distribution Wiring Diagram (8 of 65)

GFDW61637

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution Wiring Diagram (9 of 65)

GFDW61638

Courtesy of FORD MOTOR COMPANY

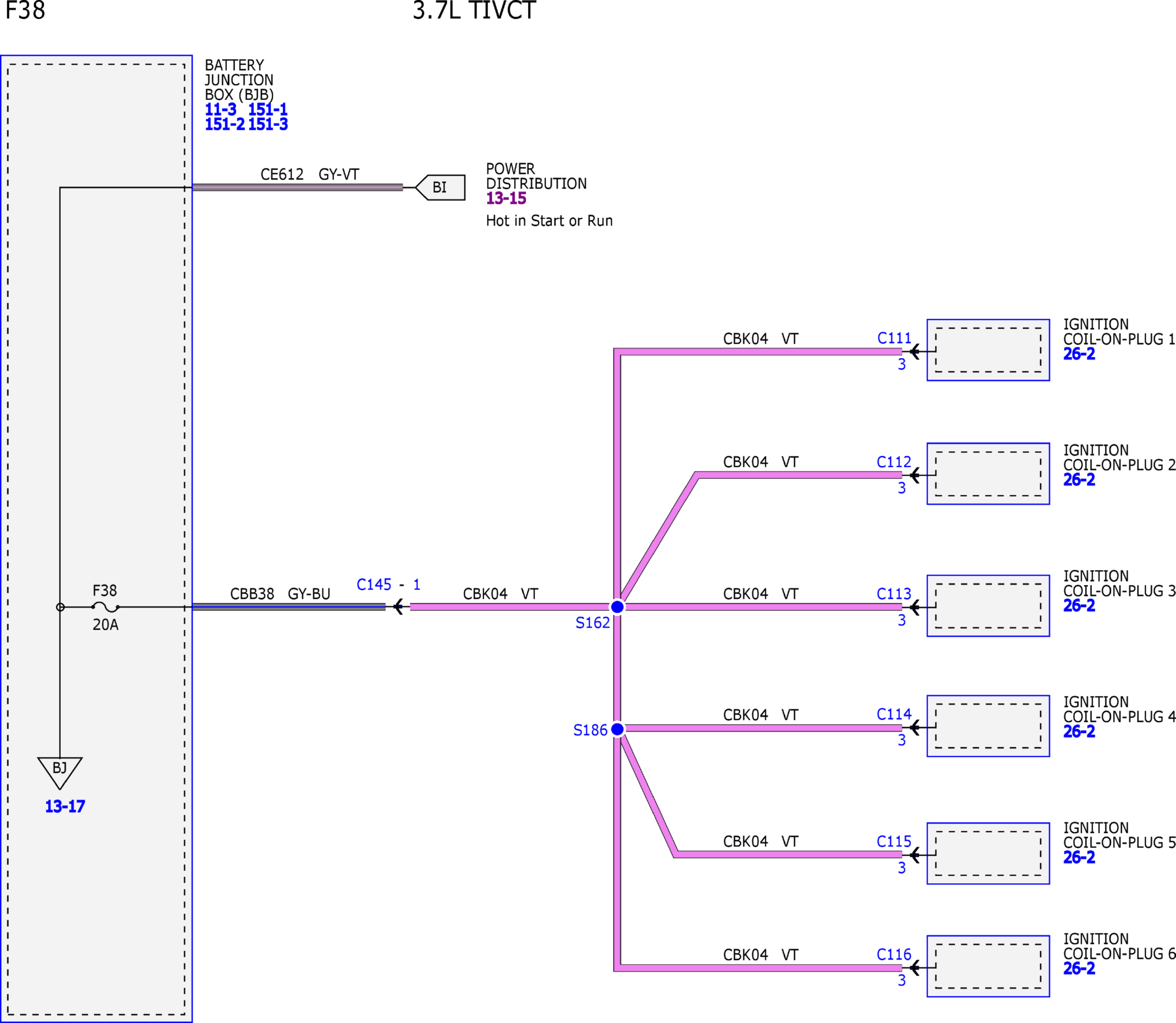

Fig 10: Power Distribution Wiring Diagram (10 of 65)

GFDW61639

Courtesy of FORD MOTOR COMPANY

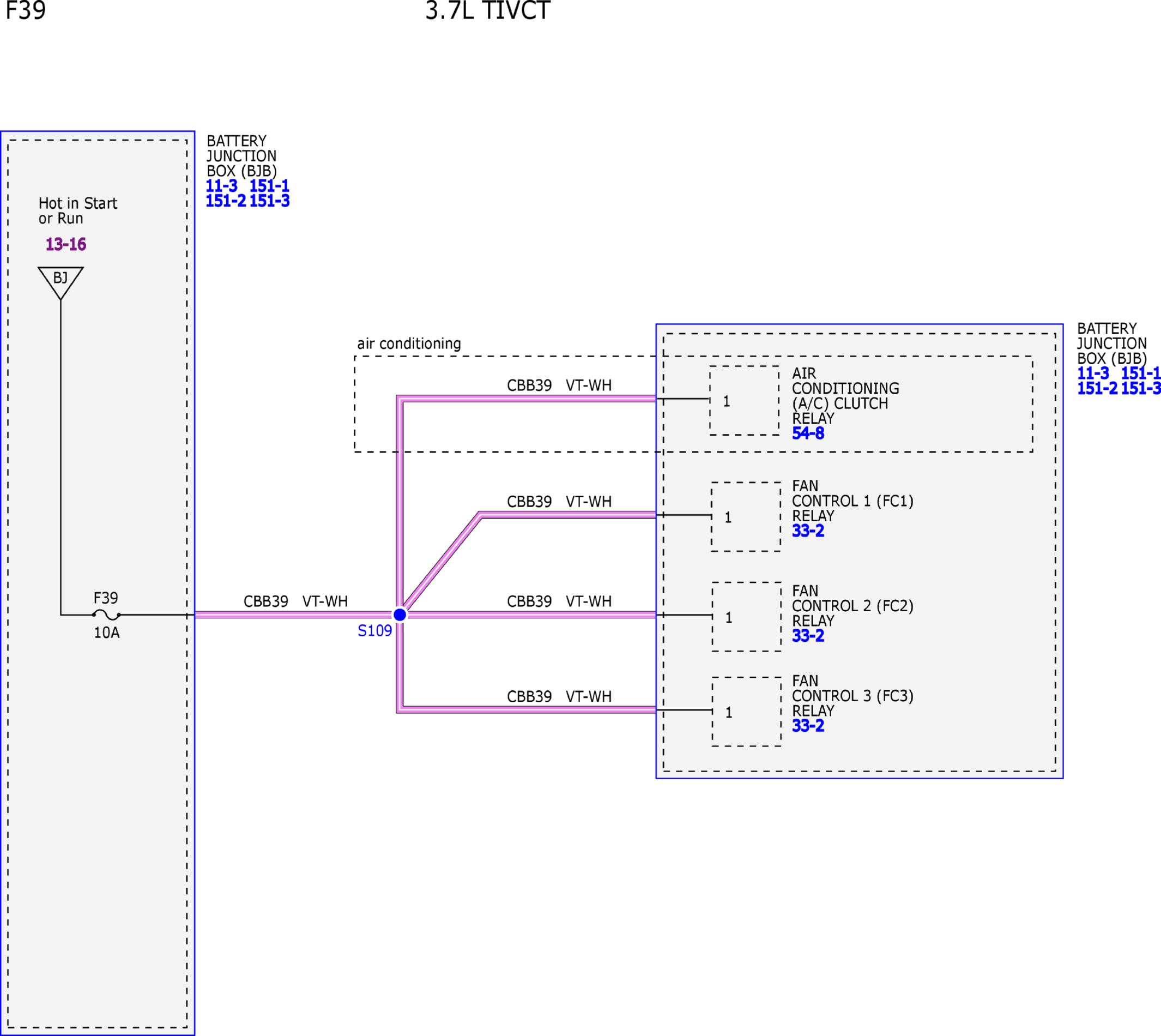

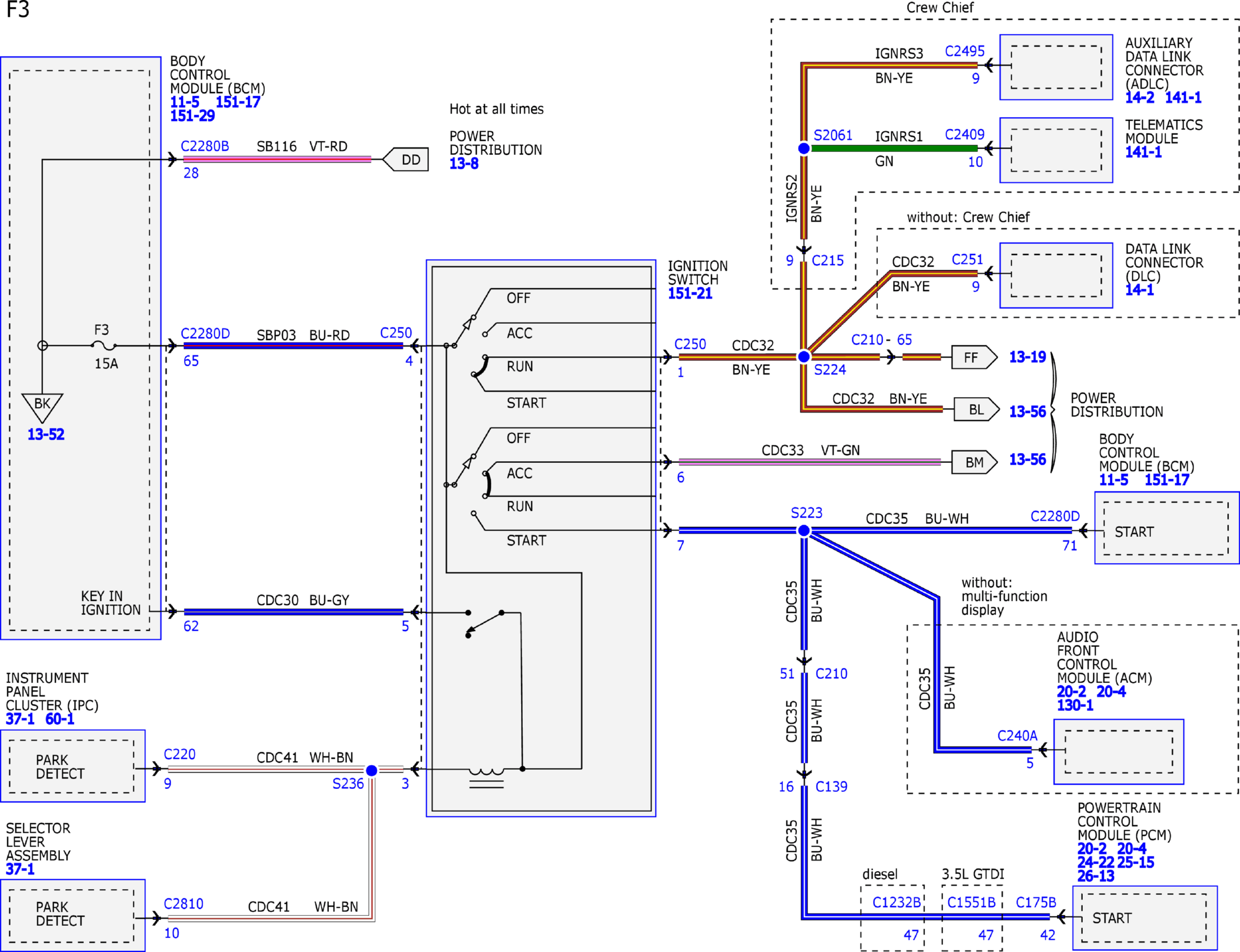

Fig 11: Power Distribution Wiring Diagram (11 of 65)

GFDW61640

Courtesy of FORD MOTOR COMPANY

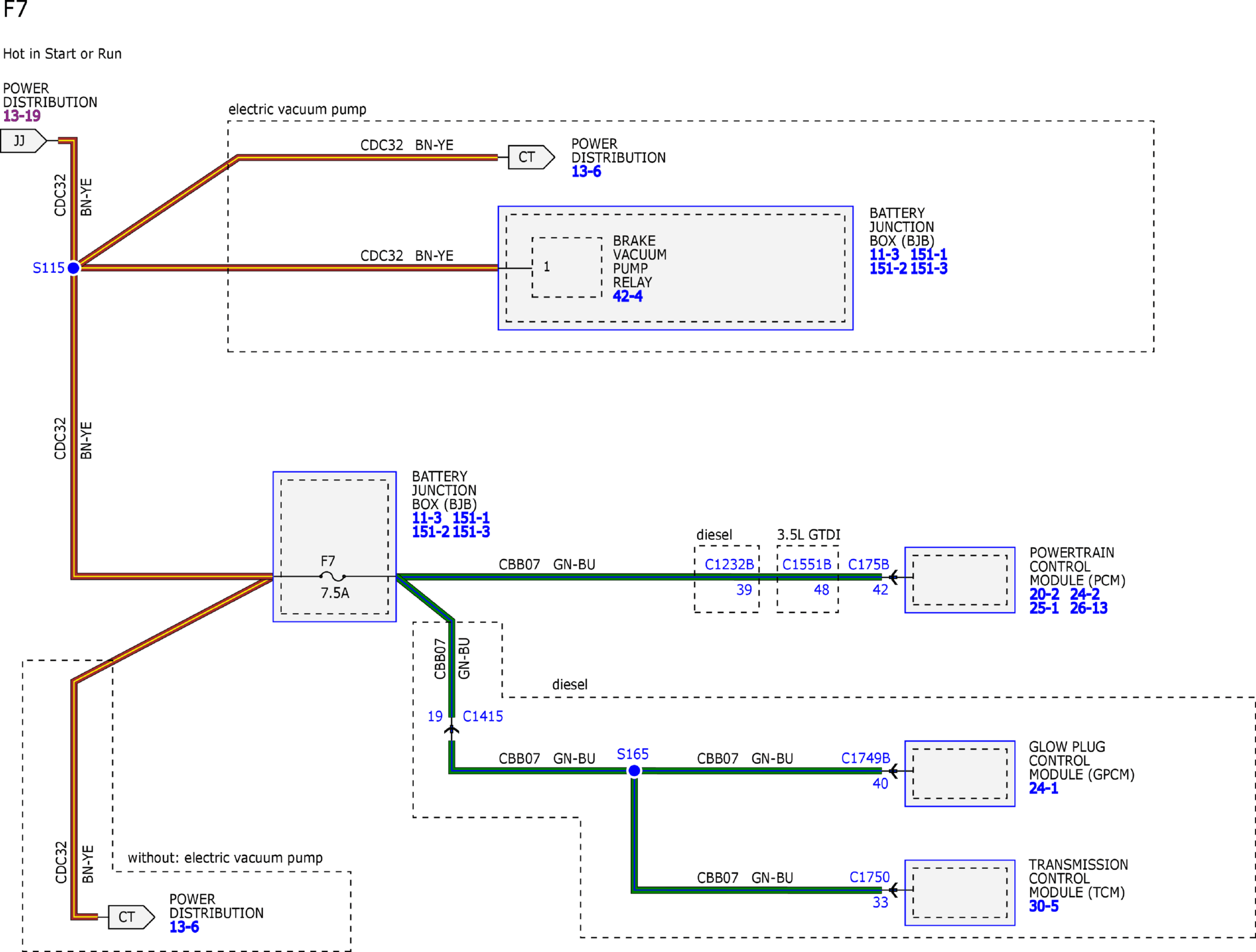

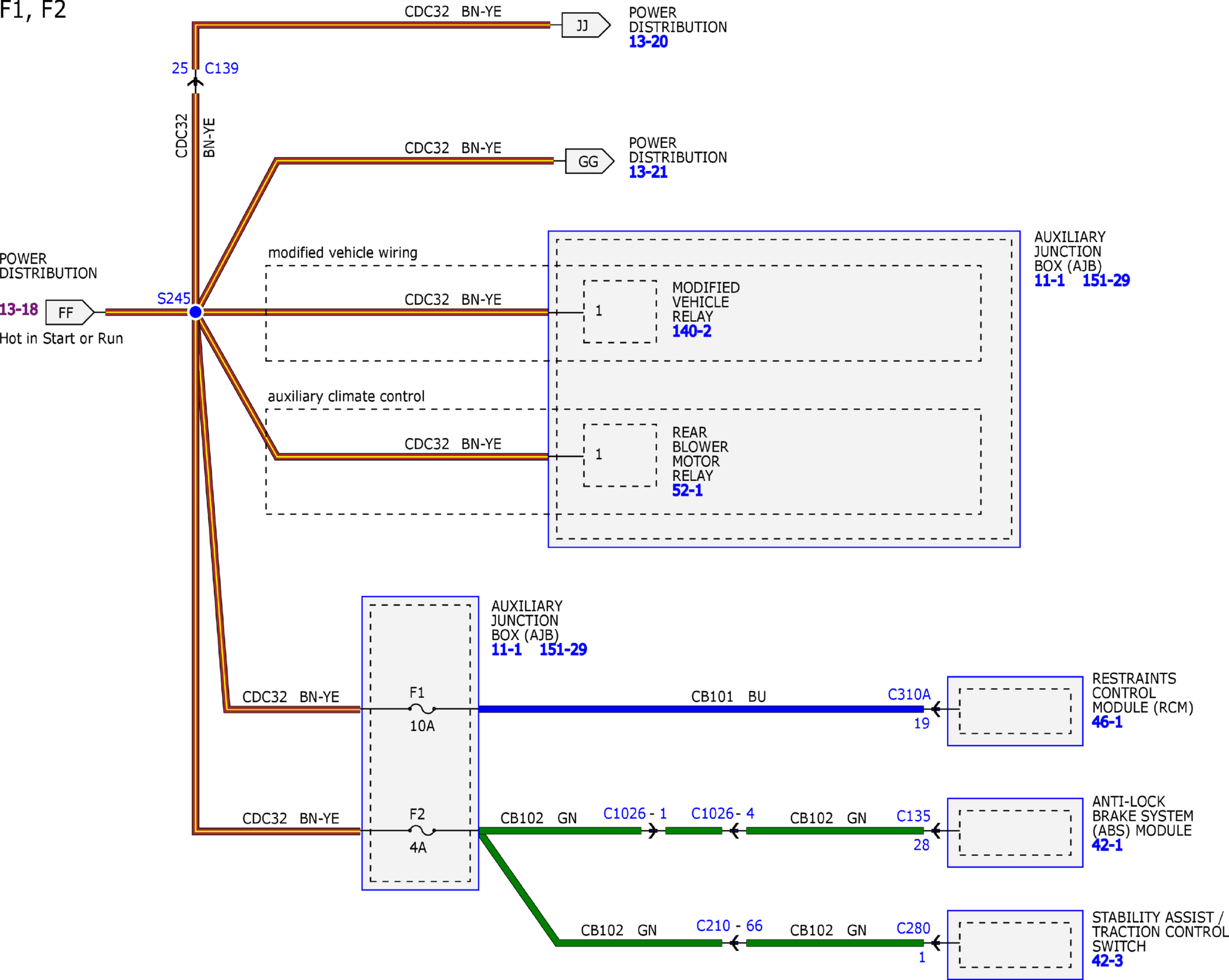

Fig 12: Power Distribution Wiring Diagram (12 of 65)

GFDW61641

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 of 65)

GFDW61642

Courtesy of FORD MOTOR COMPANY

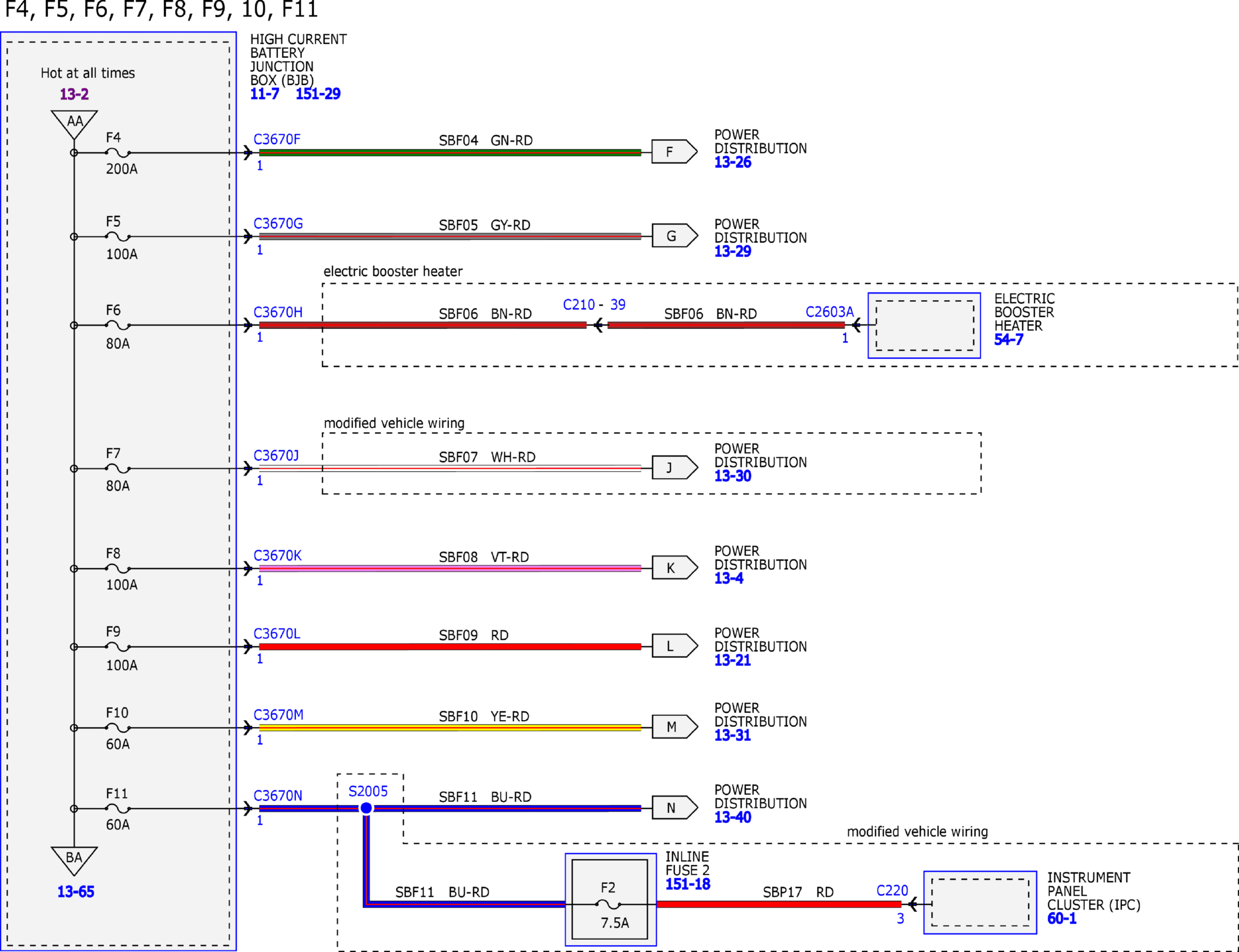

Fig 14: Power Distribution Wiring Diagram (14 of 65)

GFDW61643

Courtesy of FORD MOTOR COMPANY

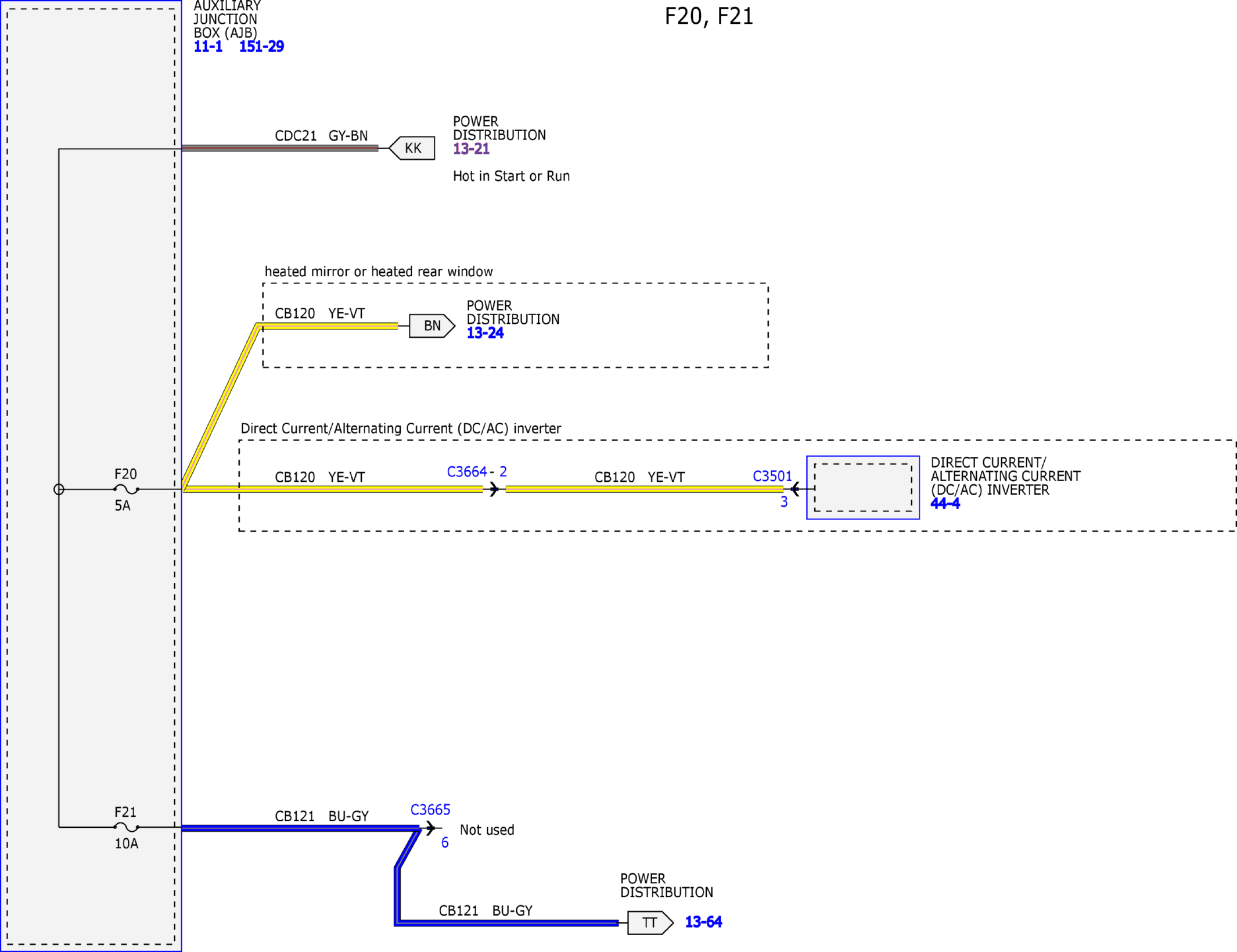

Fig 15: Power Distribution Wiring Diagram (15 of 65)

GFDW61644

Courtesy of FORD MOTOR COMPANY

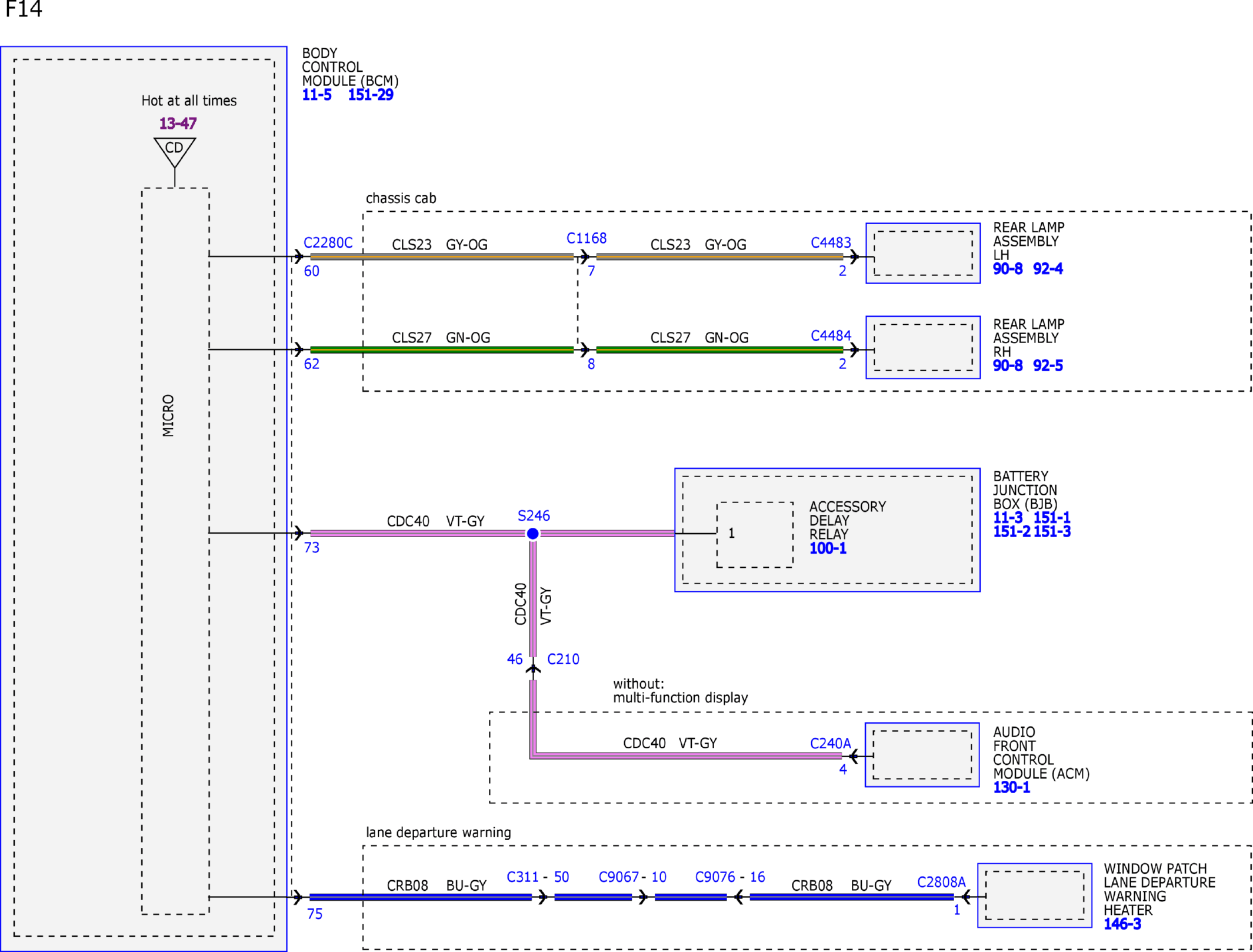

Fig 16: Power Distribution Wiring Diagram (16 of 65)

GFDW61645

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 of 65)

GFDW61646

Courtesy of FORD MOTOR COMPANY

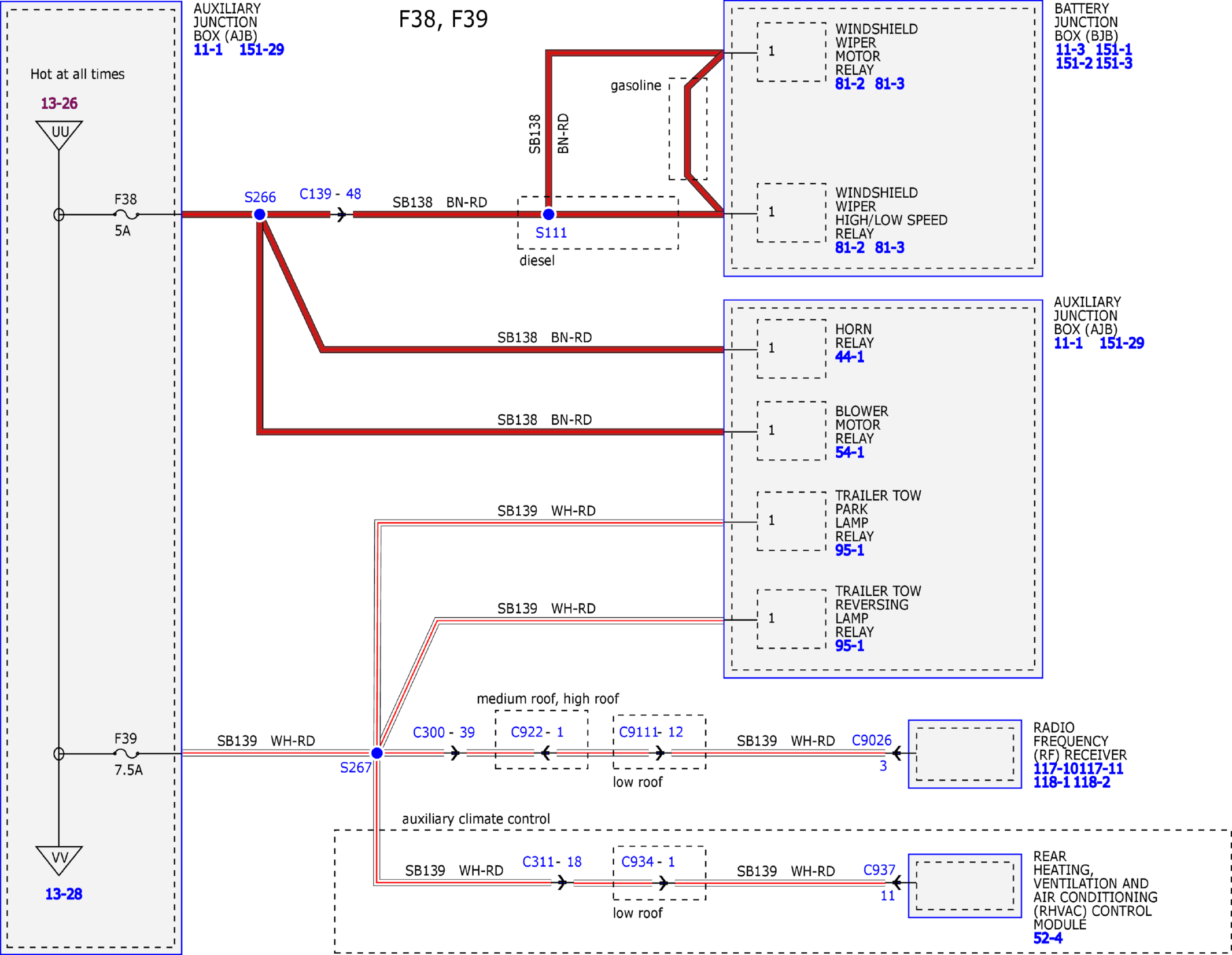

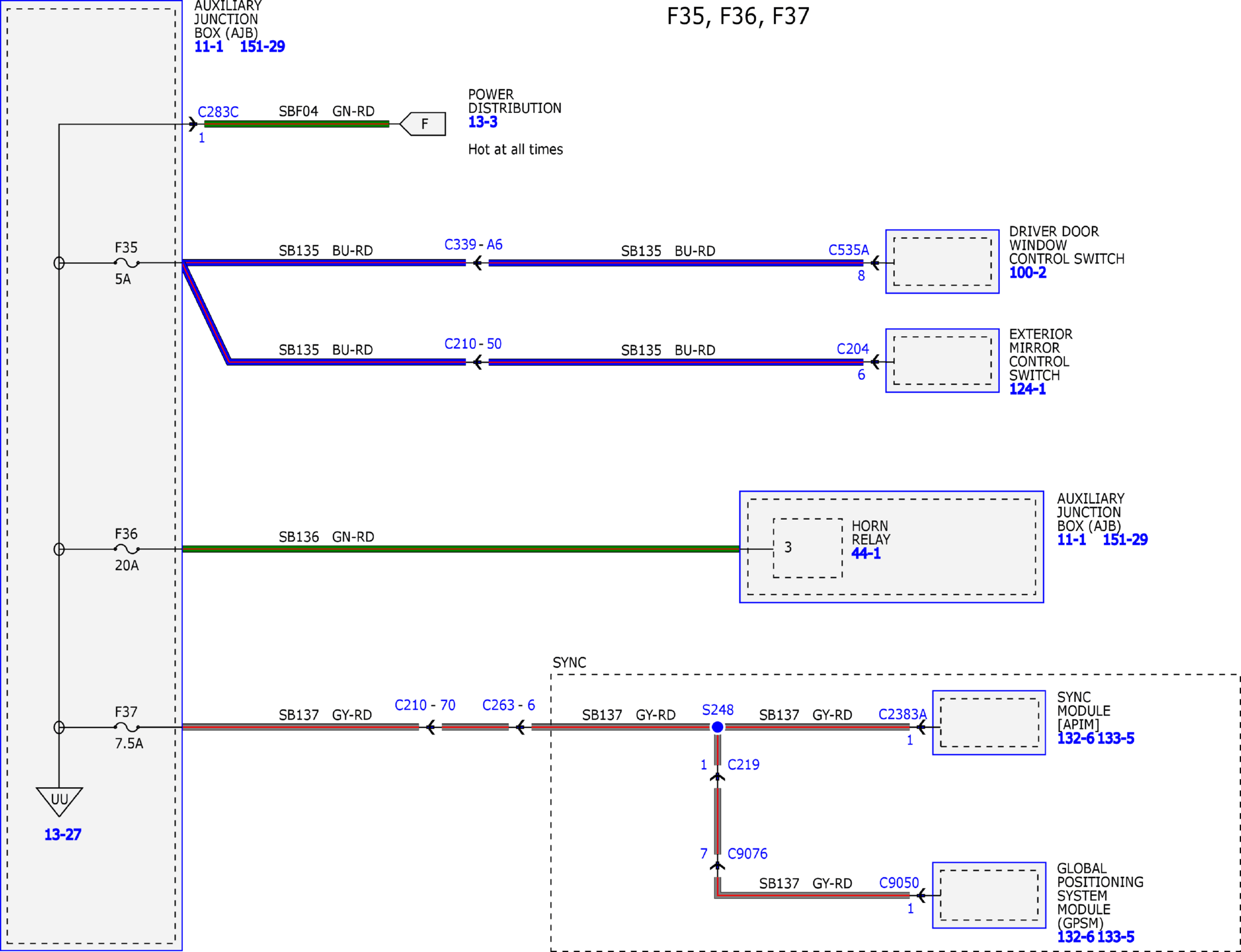

Fig 18: Power Distribution Wiring Diagram (18 of 65)

GFDW61647

Courtesy of FORD MOTOR COMPANY

Fig 19: Power Distribution Wiring Diagram (19 of 65)

GFDW61648

Courtesy of FORD MOTOR COMPANY

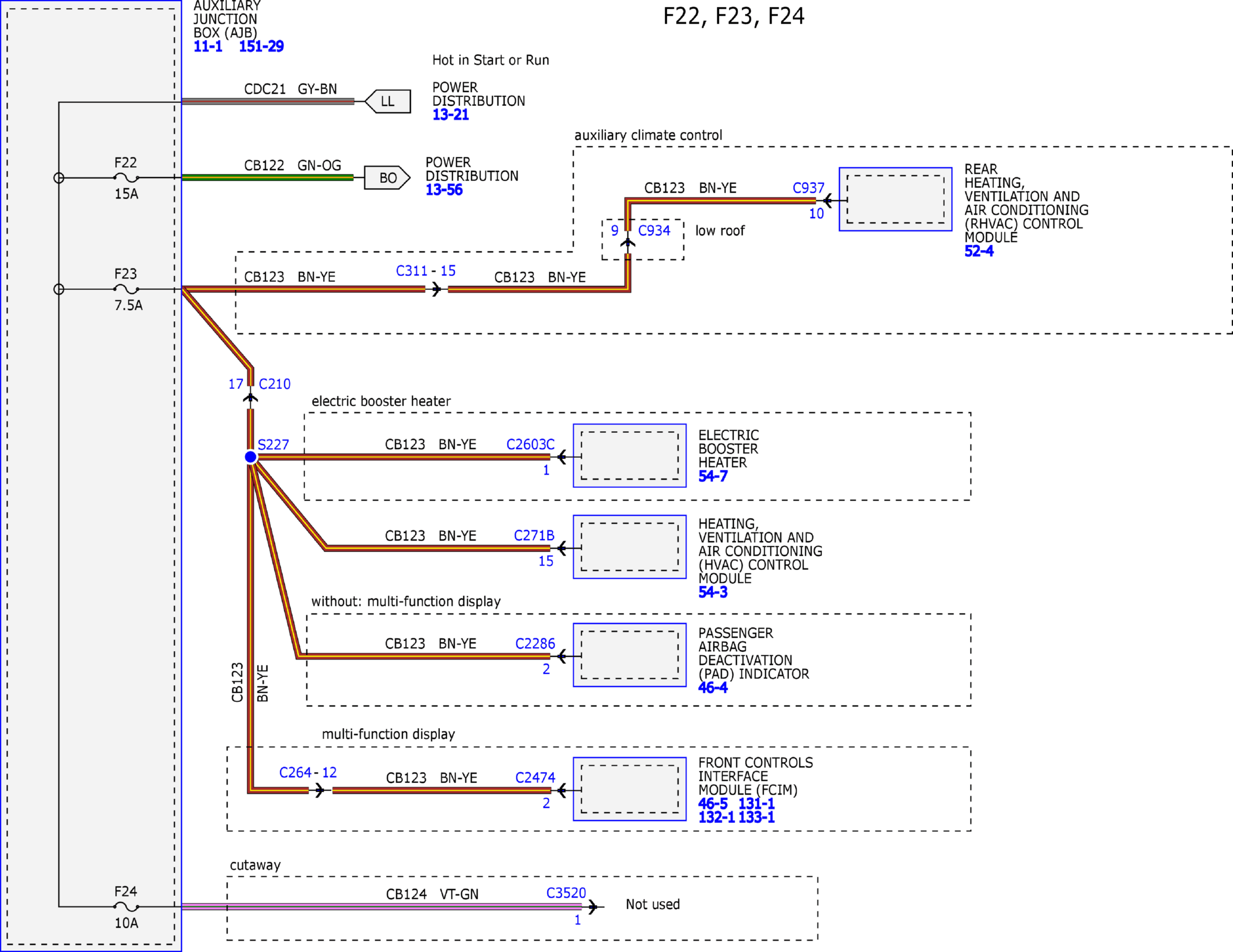

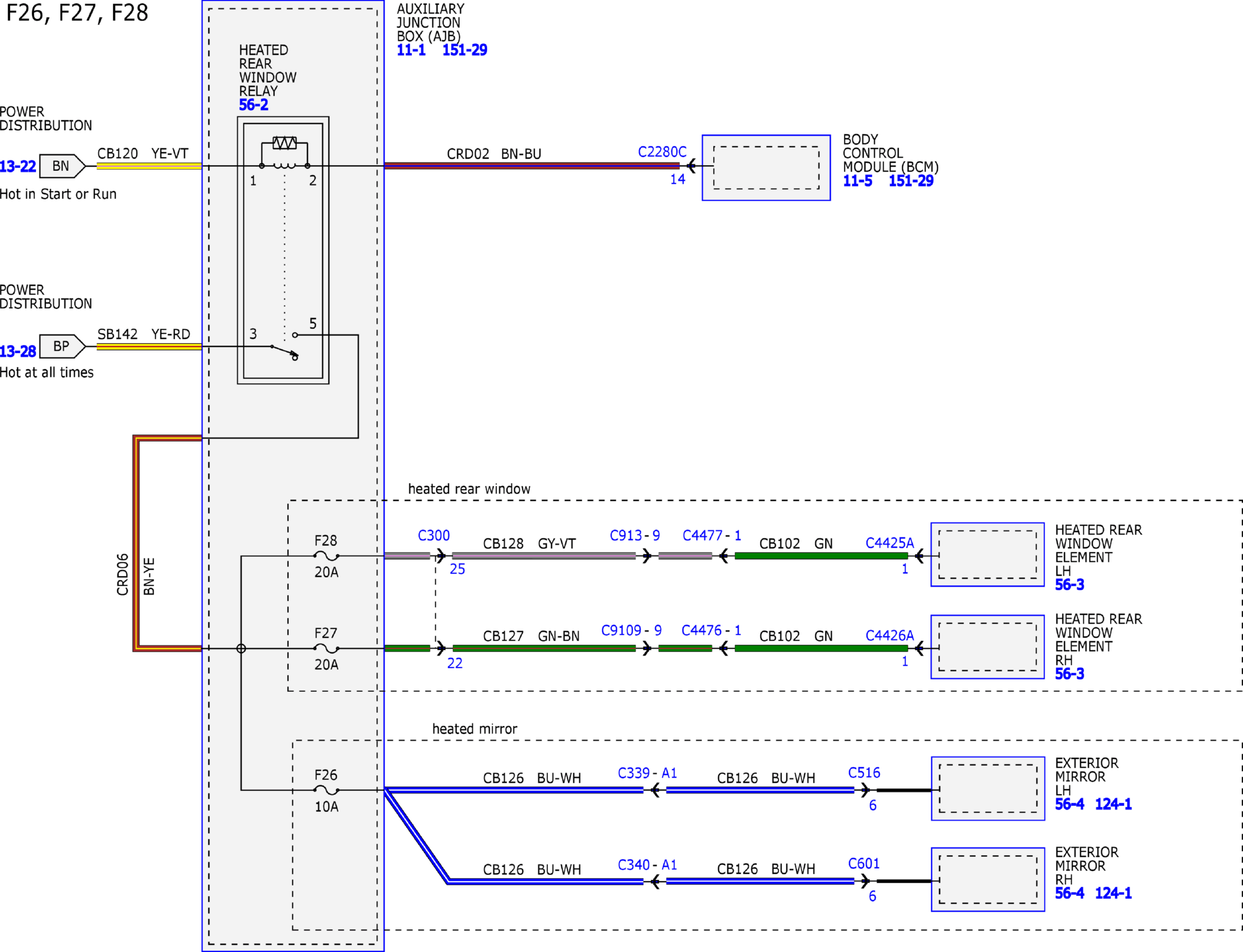

Fig 20: Power Distribution Wiring Diagram (20 of 65)

GFDW61649

Courtesy of FORD MOTOR COMPANY

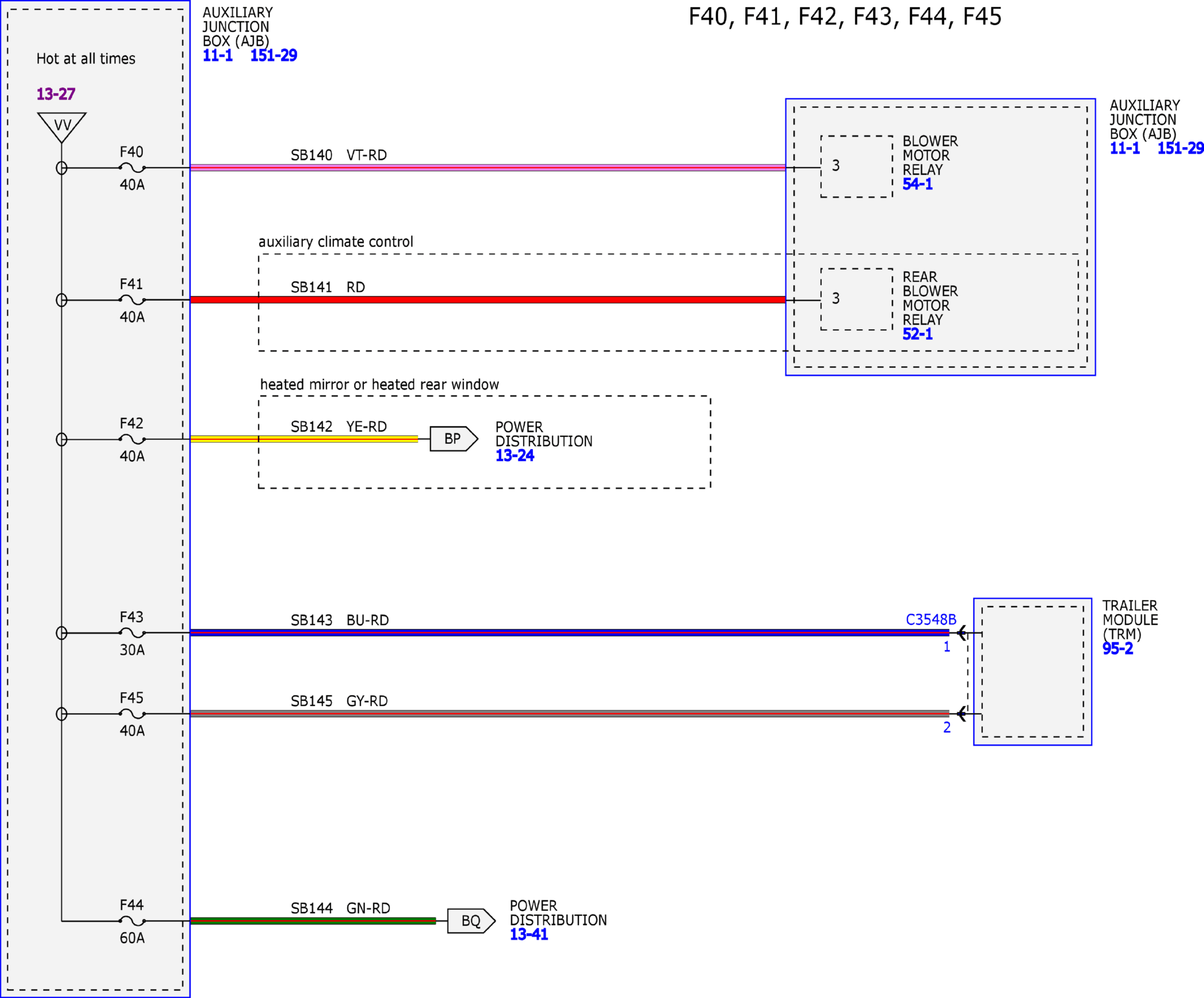

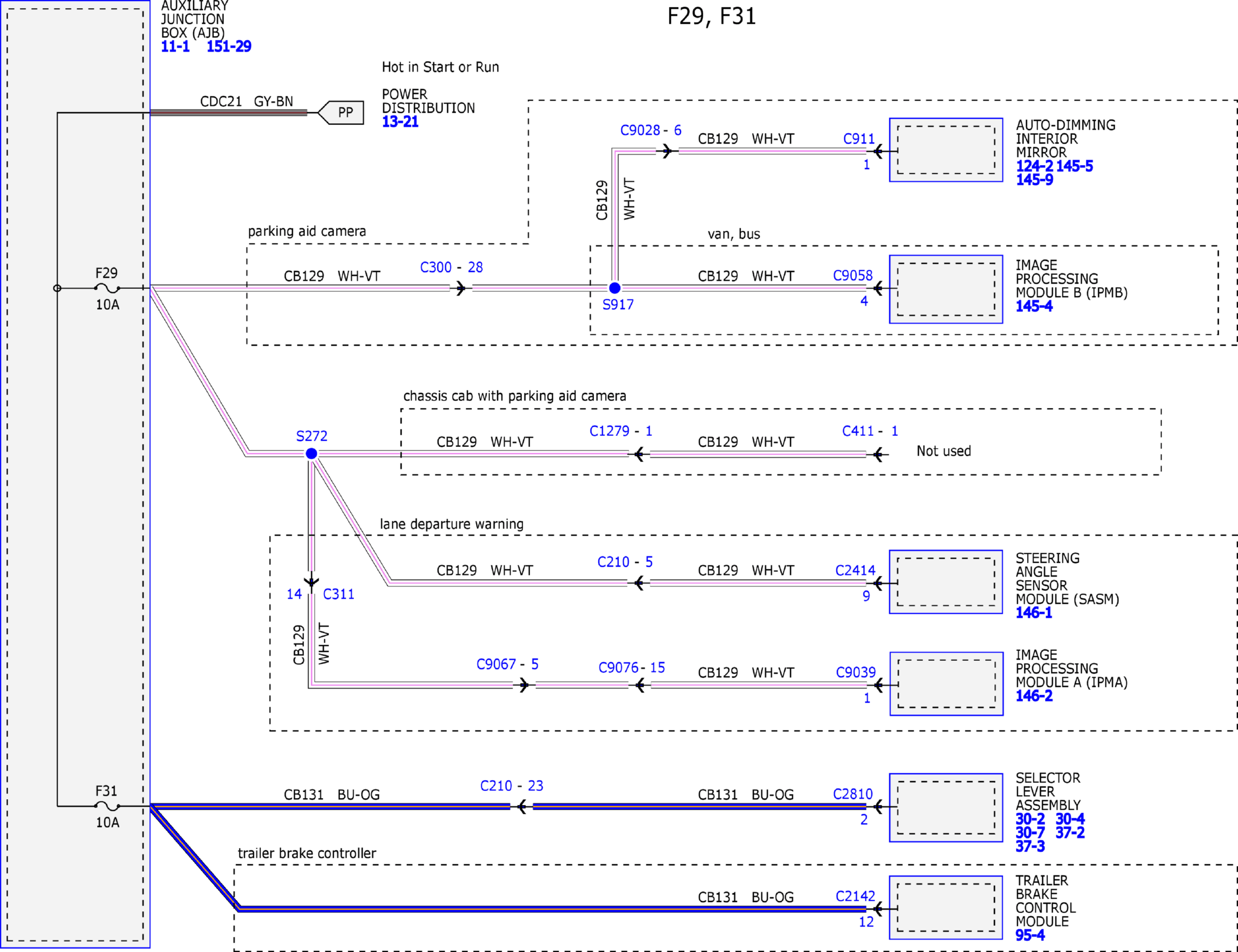

Fig 21: Power Distribution Wiring Diagram (21 of 65)

GFDW61650

Courtesy of FORD MOTOR COMPANY

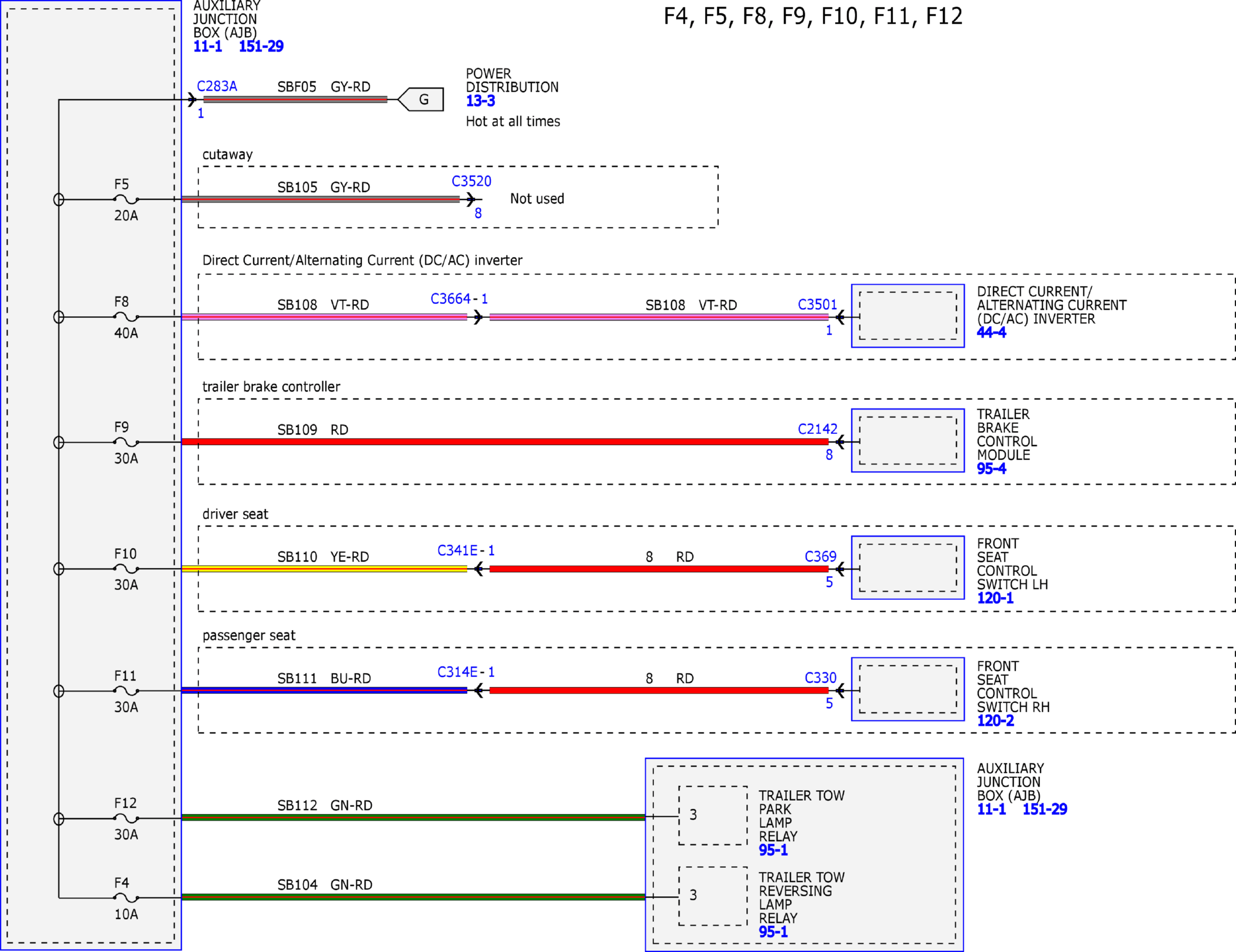

Fig 22: Power Distribution Wiring Diagram (22 of 65)

GFDW61651

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 of 65)

GFDW61652

Courtesy of FORD MOTOR COMPANY

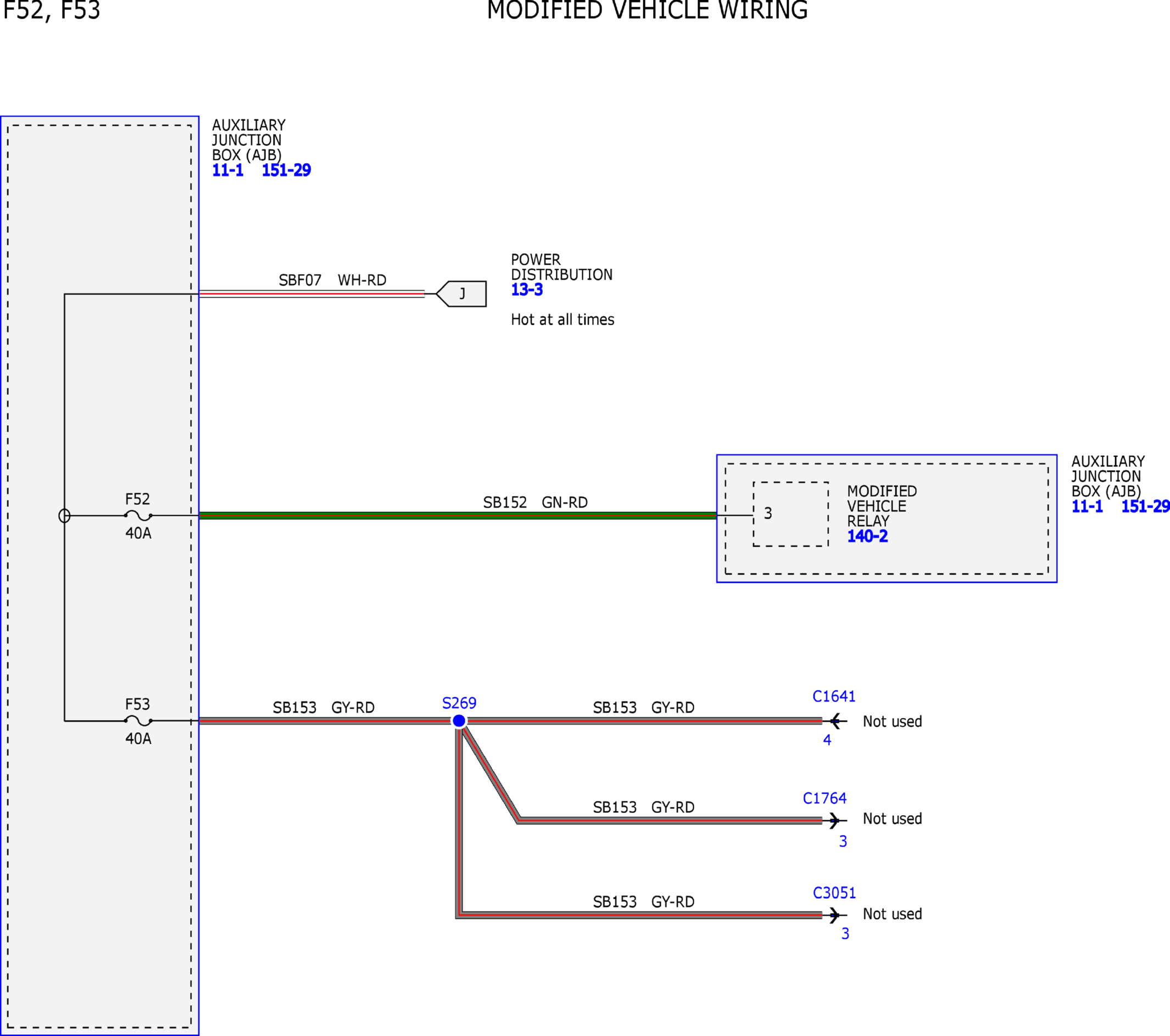

Fig 24: Power Distribution Wiring Diagram (24 of 65)

GFDW61653

Courtesy of FORD MOTOR COMPANY

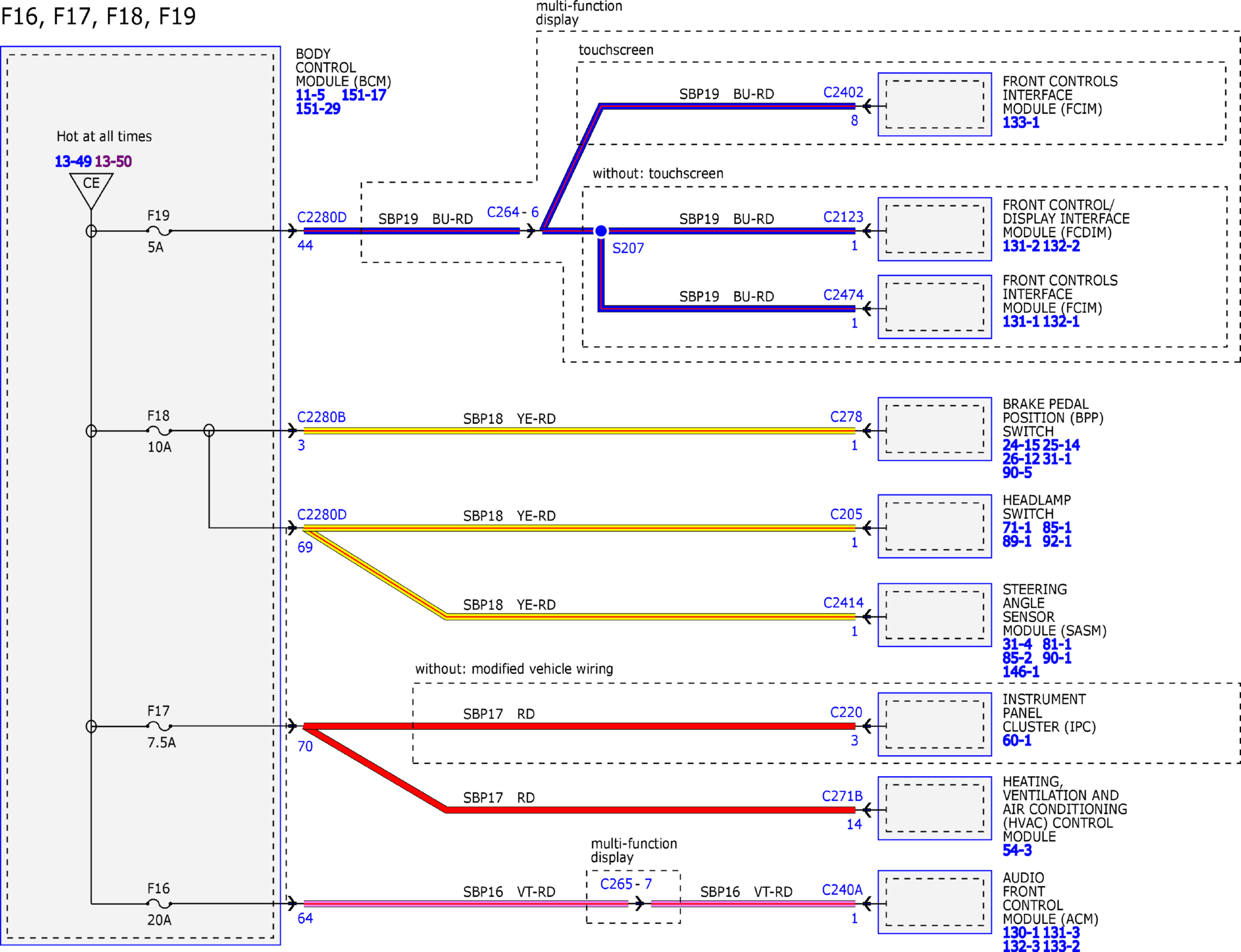

Fig 25: Power Distribution Wiring Diagram (25 of 65)

GFDW61654

Courtesy of FORD MOTOR COMPANY

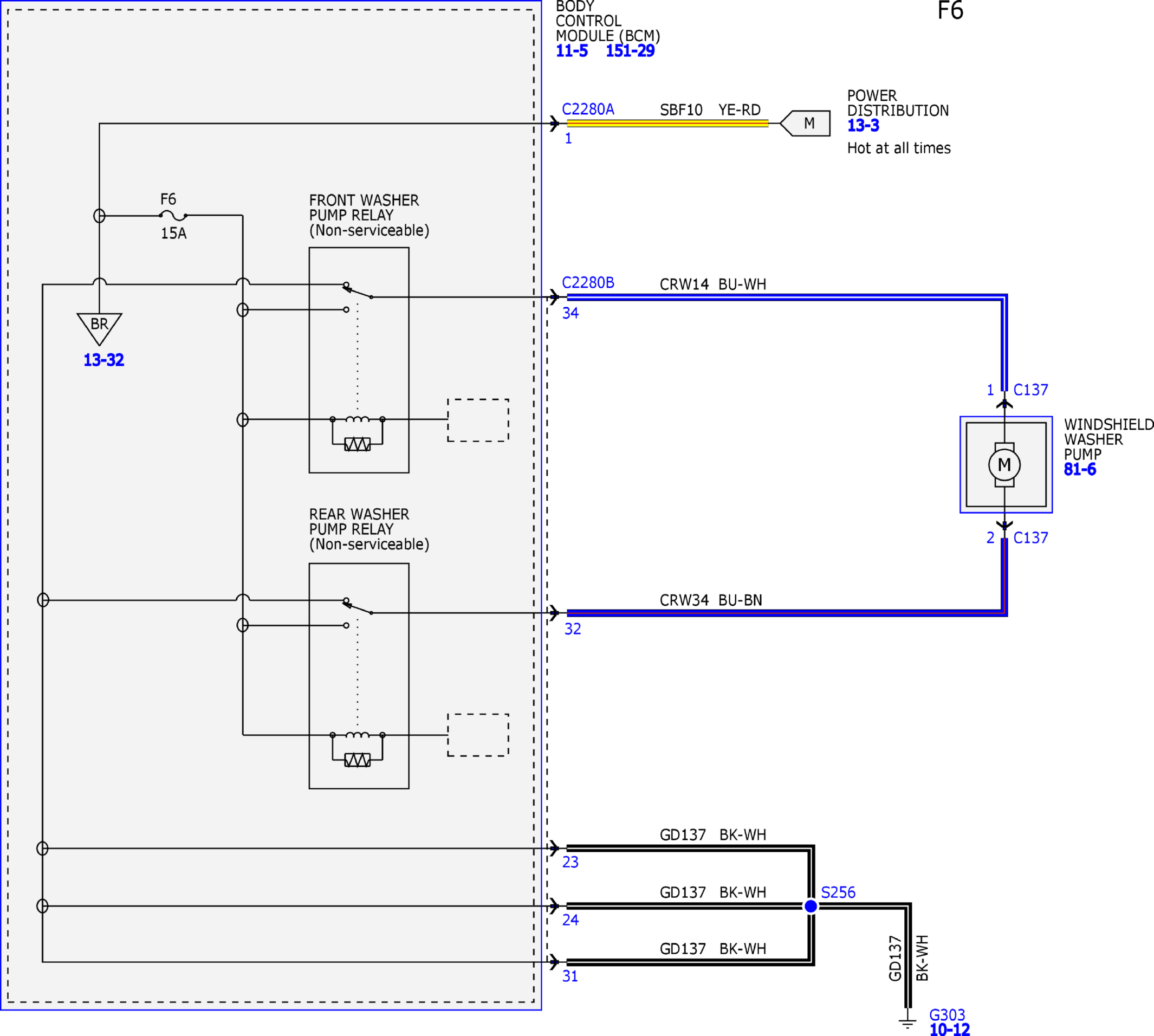

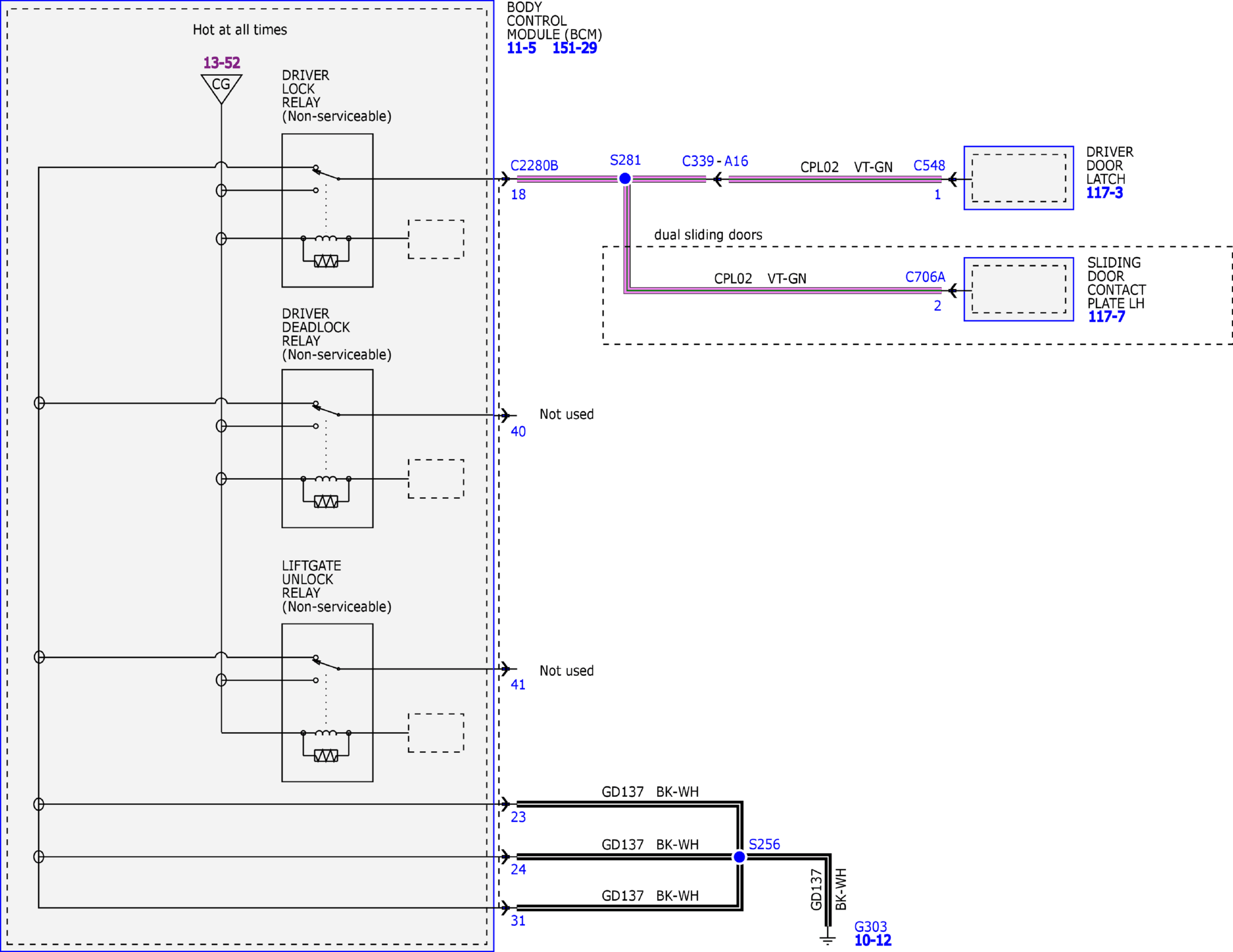

Fig 26: Power Distribution Wiring Diagram (26 of 65)

GFDW61655

Courtesy of FORD MOTOR COMPANY

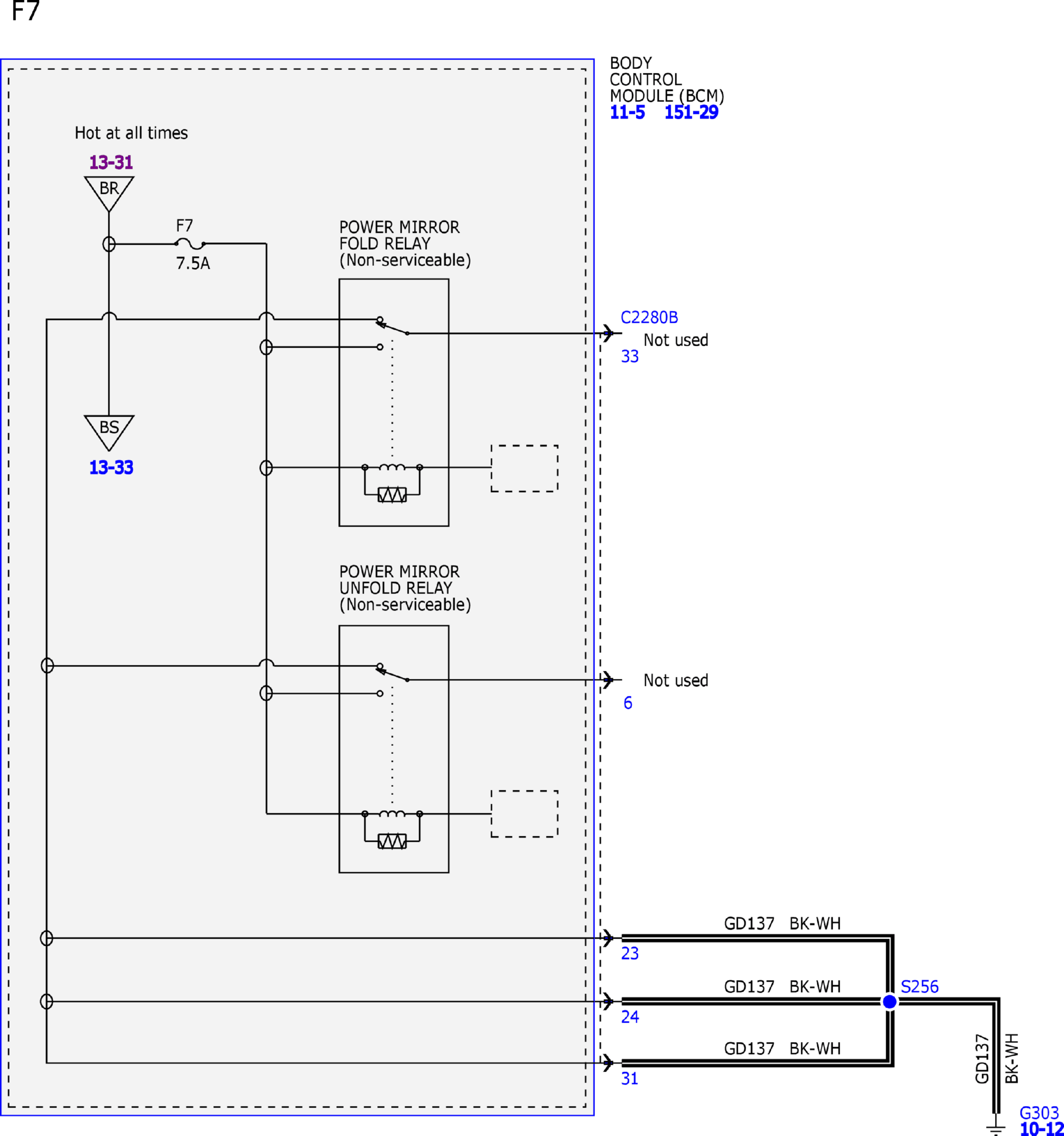

Fig 27: Power Distribution Wiring Diagram (27 of 65)

GFDW61656

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 of 65)

GFDW61657

Courtesy of FORD MOTOR COMPANY

Fig 29: Power Distribution Wiring Diagram (29 of 65)

GFDW61658

Courtesy of FORD MOTOR COMPANY

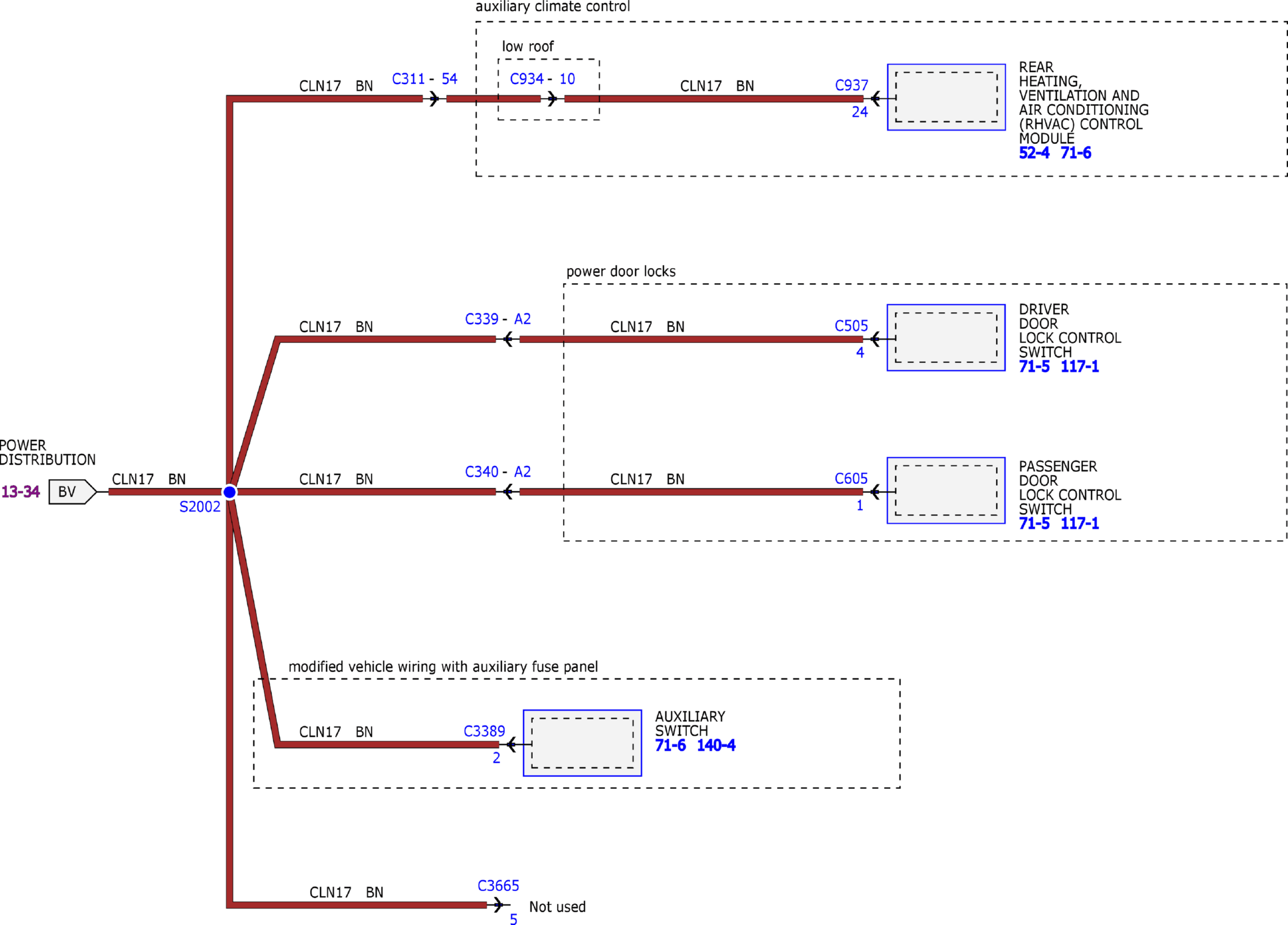

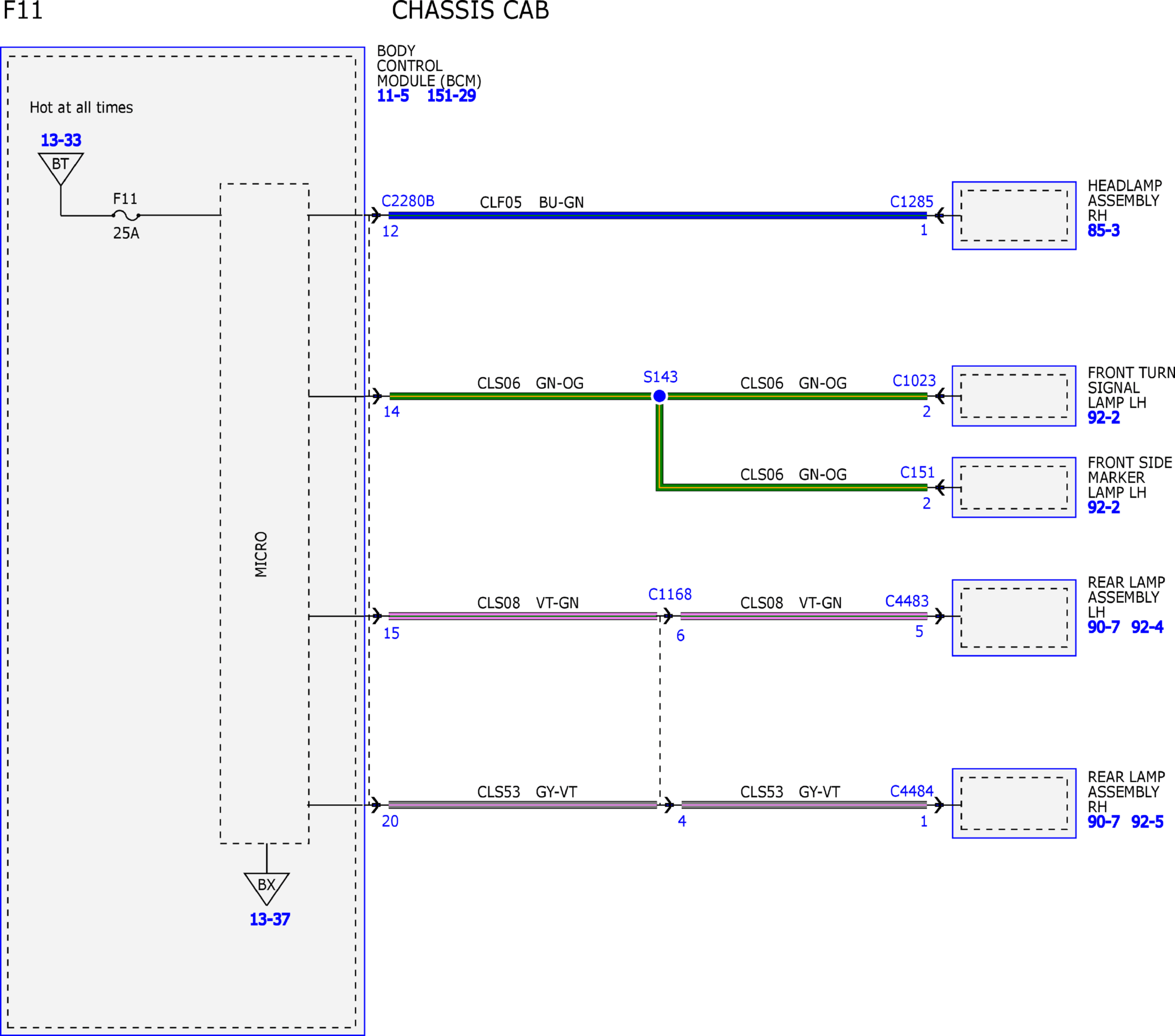

Fig 30: Power Distribution Wiring Diagram (30 of 65)

GFDW61659

Courtesy of FORD MOTOR COMPANY

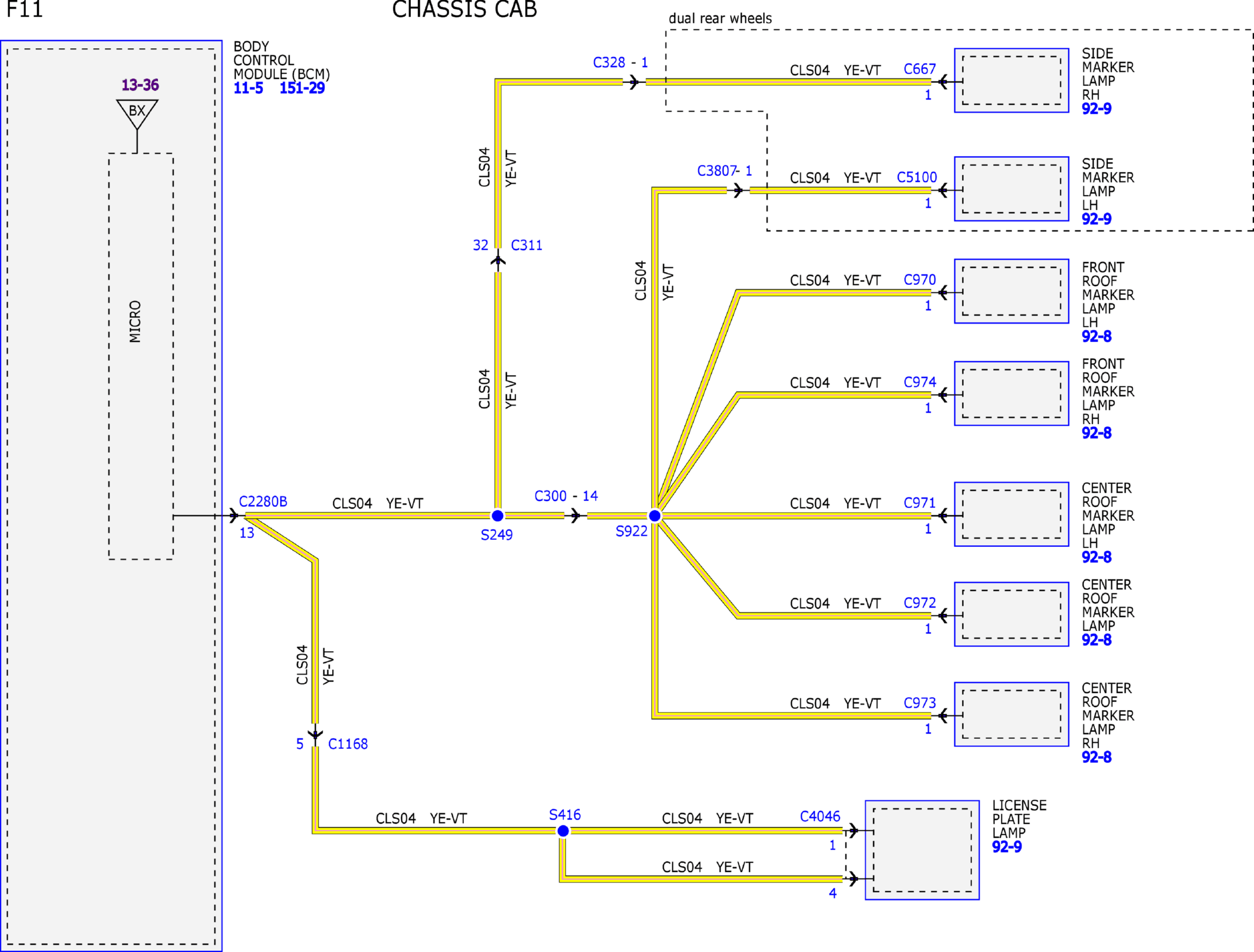

Fig 31: Power Distribution Wiring Diagram (31 of 65)

GFDW61660

Courtesy of FORD MOTOR COMPANY

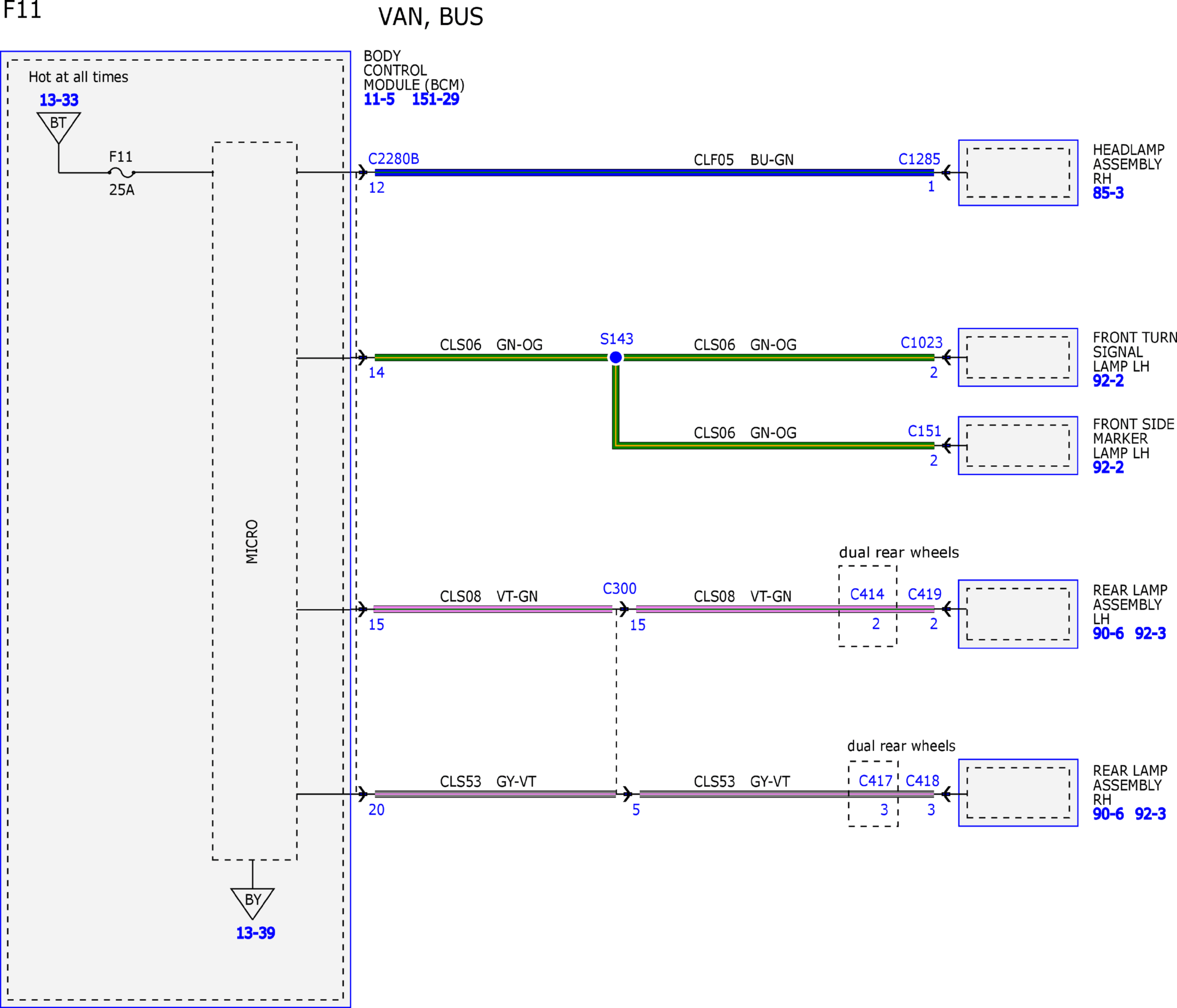

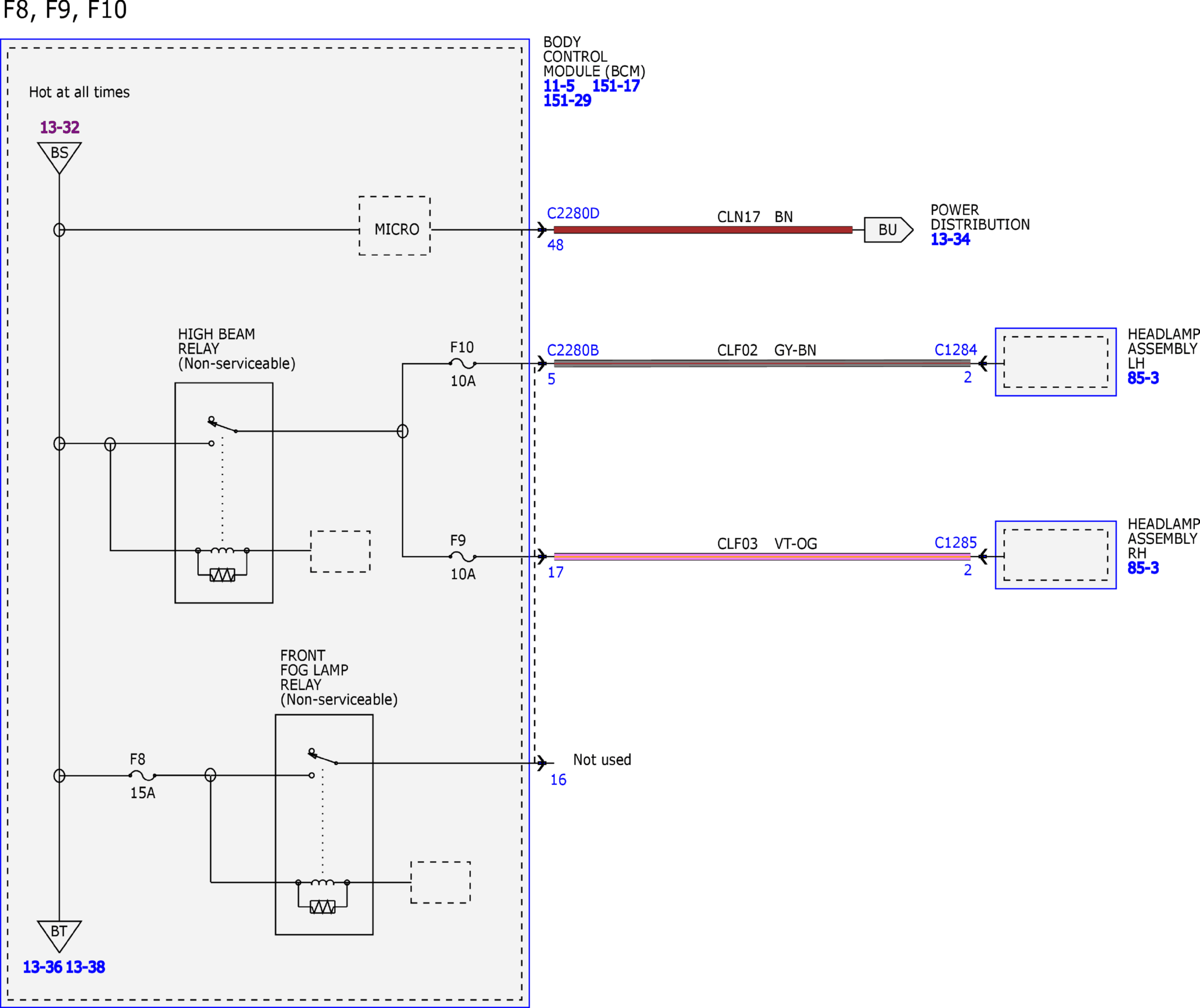

Fig 32: Power Distribution Wiring Diagram (32 of 65)

GFDW61661

Courtesy of FORD MOTOR COMPANY

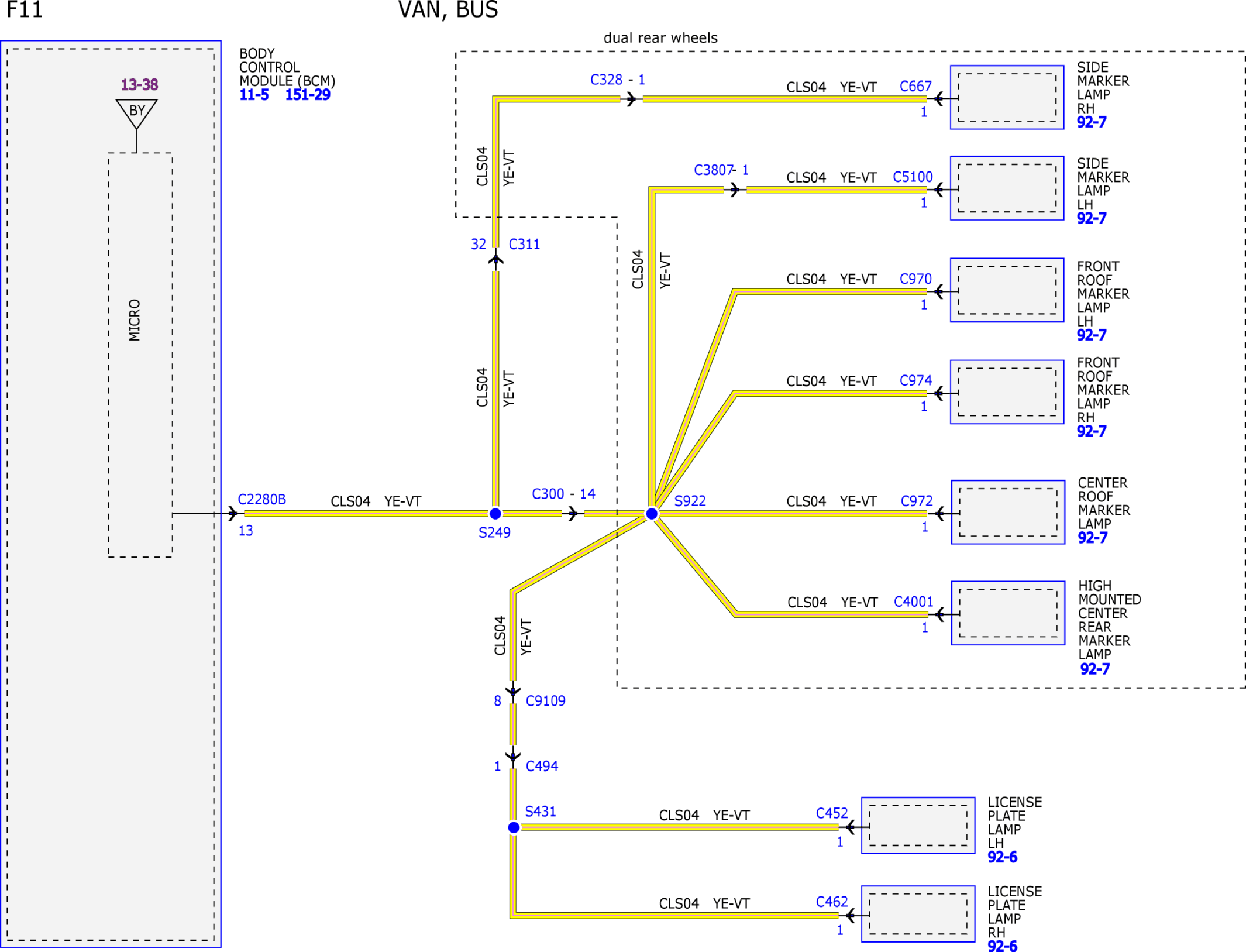

Fig 33: Power Distribution Wiring Diagram (33 of 65)

GFDW61662

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 of 65)

GFDW61663

Courtesy of FORD MOTOR COMPANY

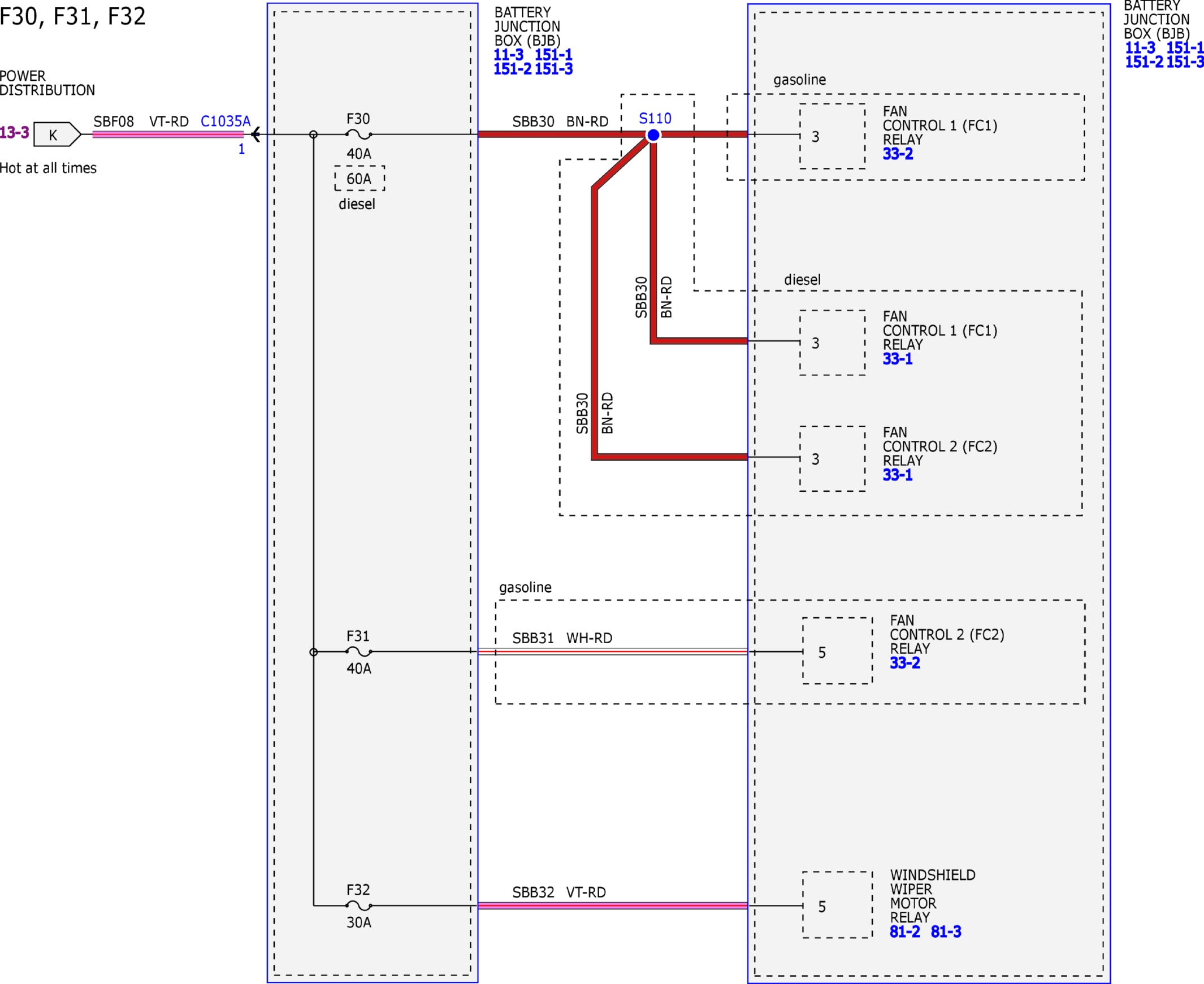

Fig 35: Power Distribution Wiring Diagram (35 of 65)

GFDW61664

Courtesy of FORD MOTOR COMPANY

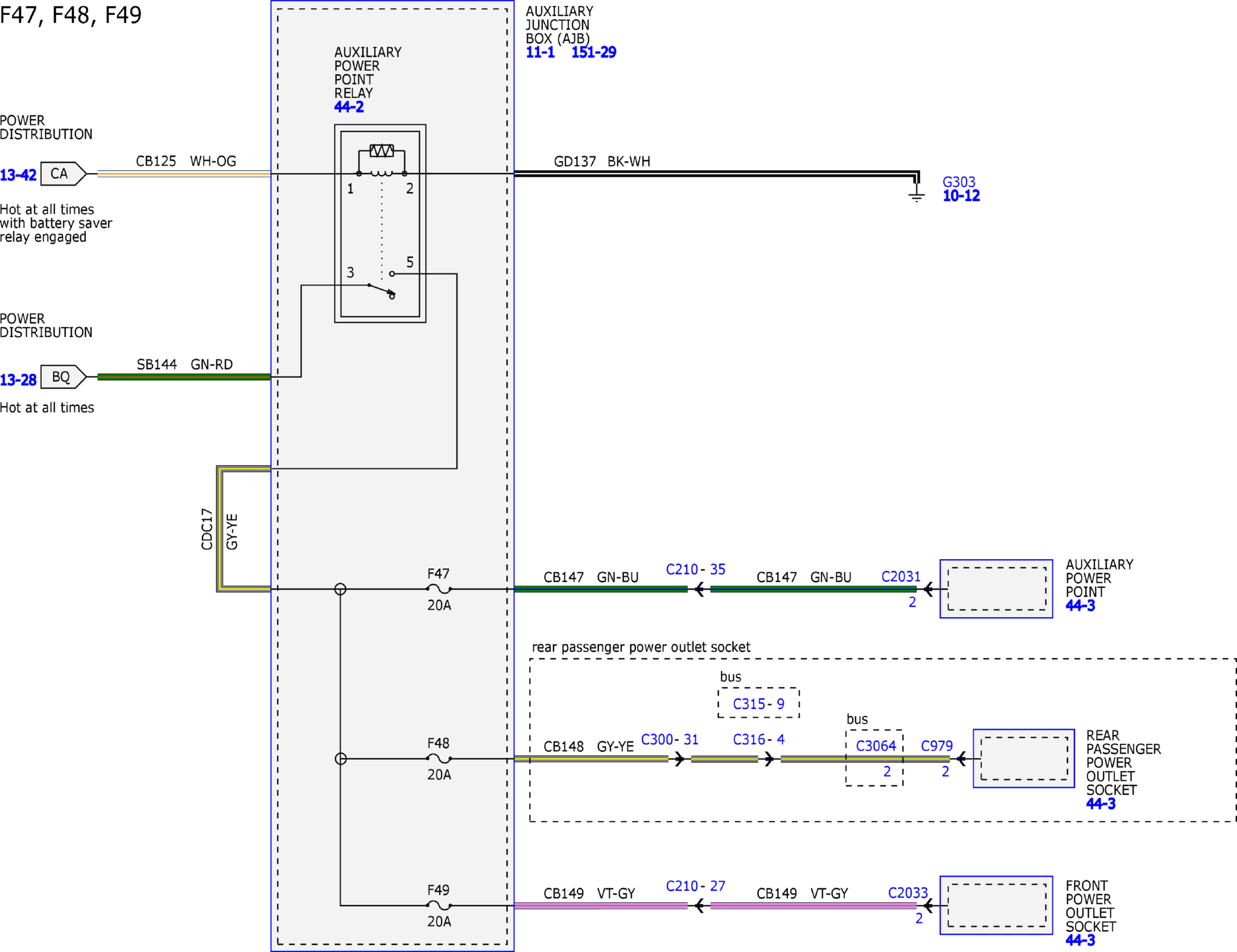

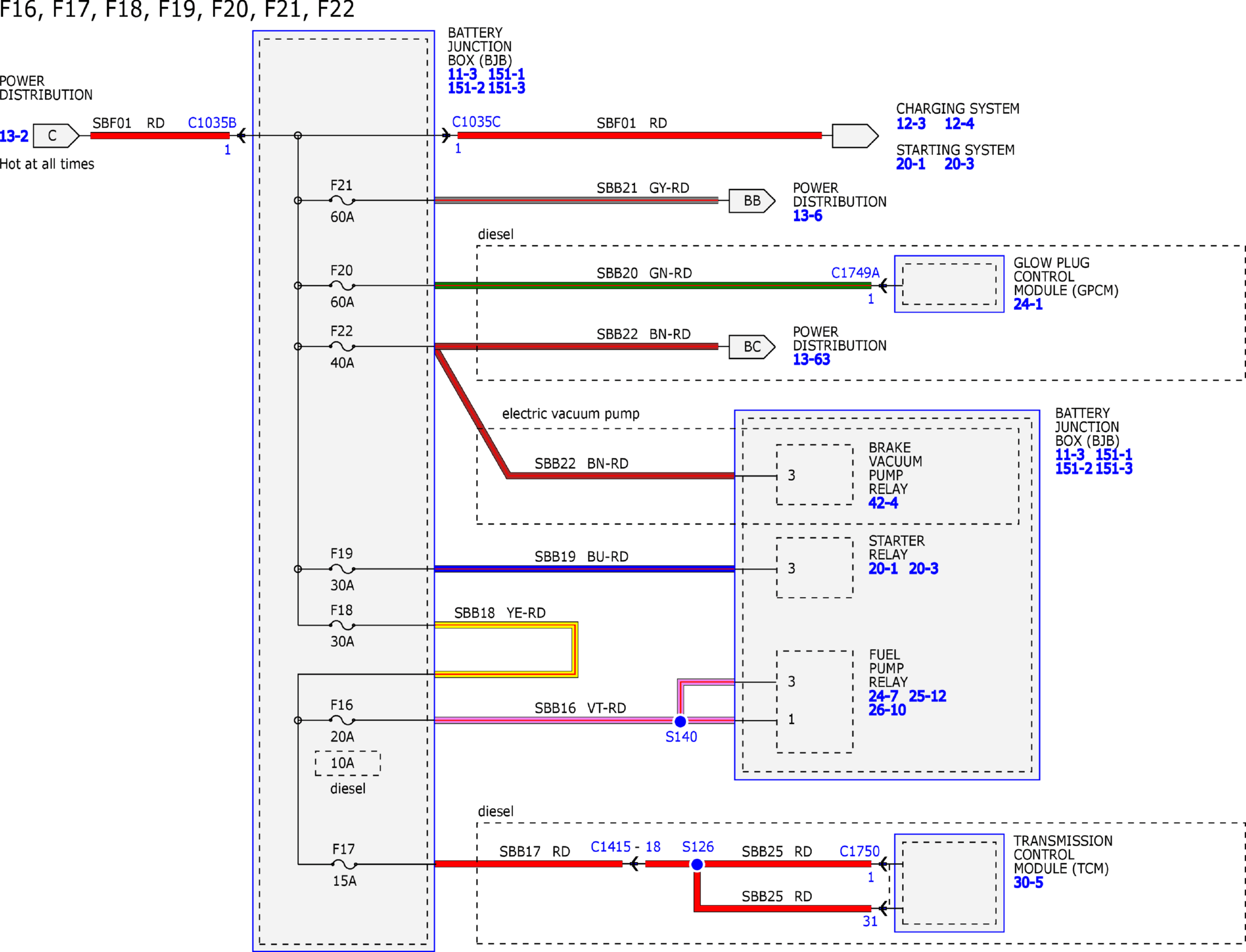

Fig 36: Power Distribution Wiring Diagram (36 of 65)

GFDW61665

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution Wiring Diagram (37 of 65)

GFDW61666

Courtesy of FORD MOTOR COMPANY

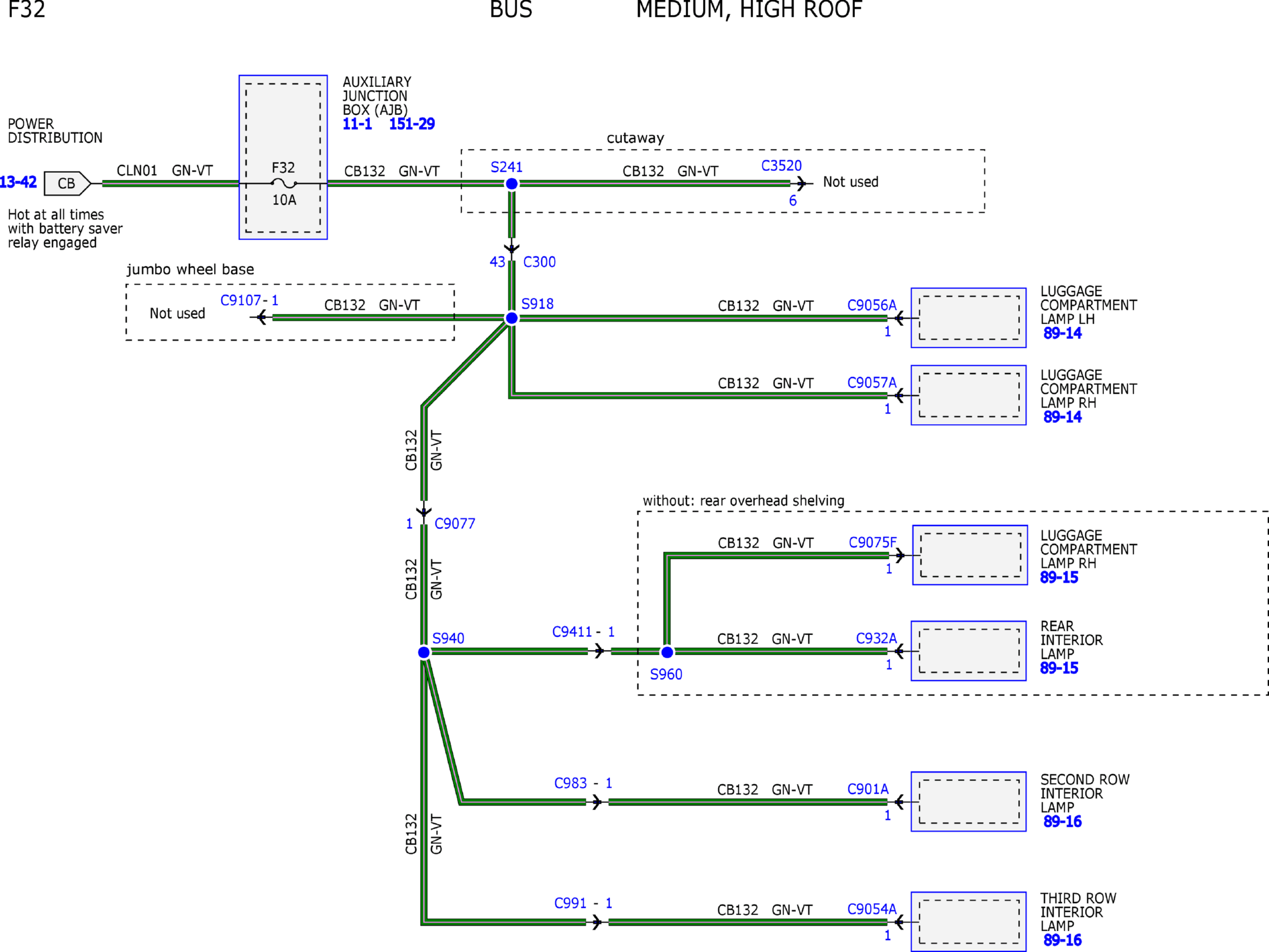

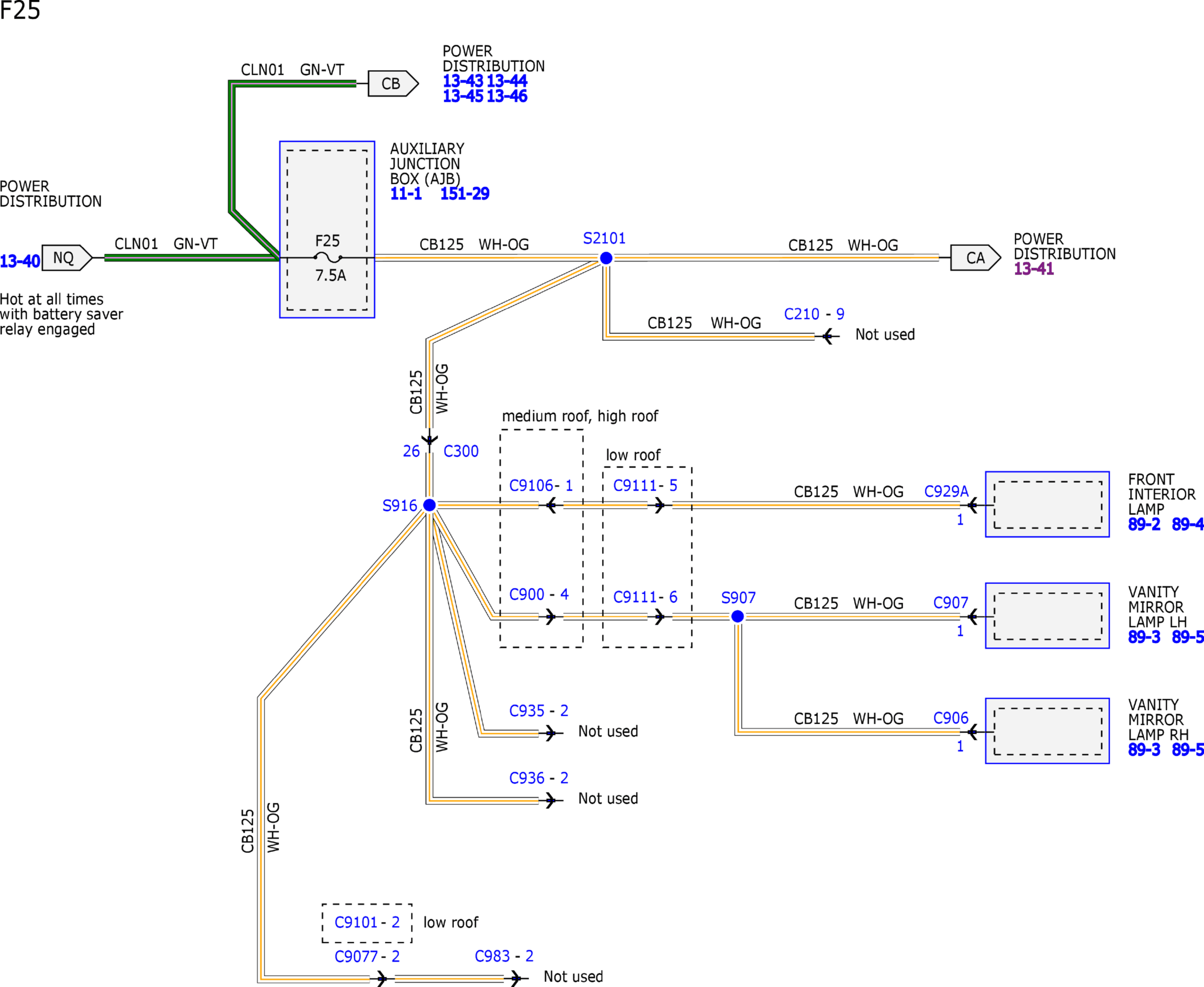

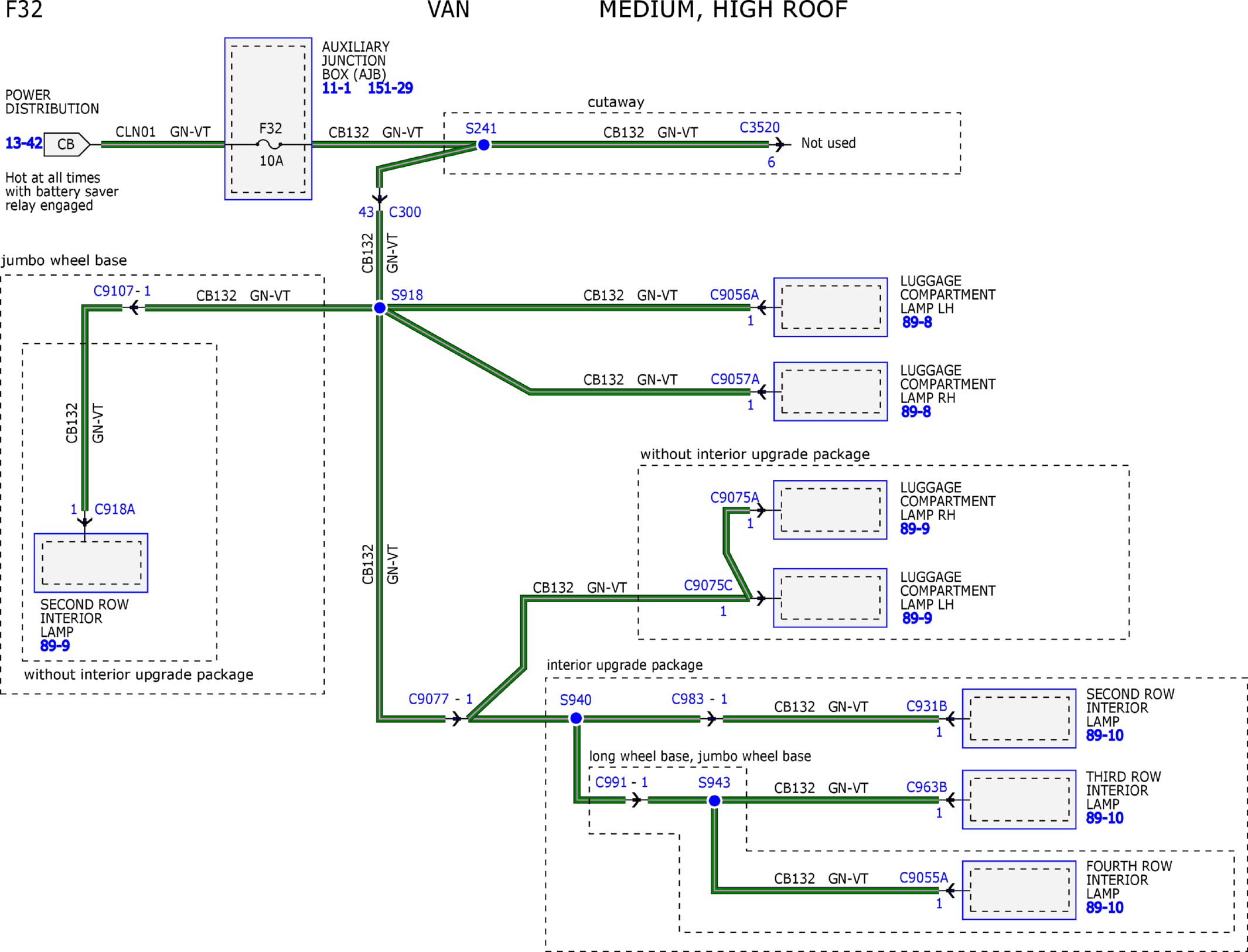

Fig 38: Power Distribution Wiring Diagram (38 of 65)

GFDW61667

Courtesy of FORD MOTOR COMPANY

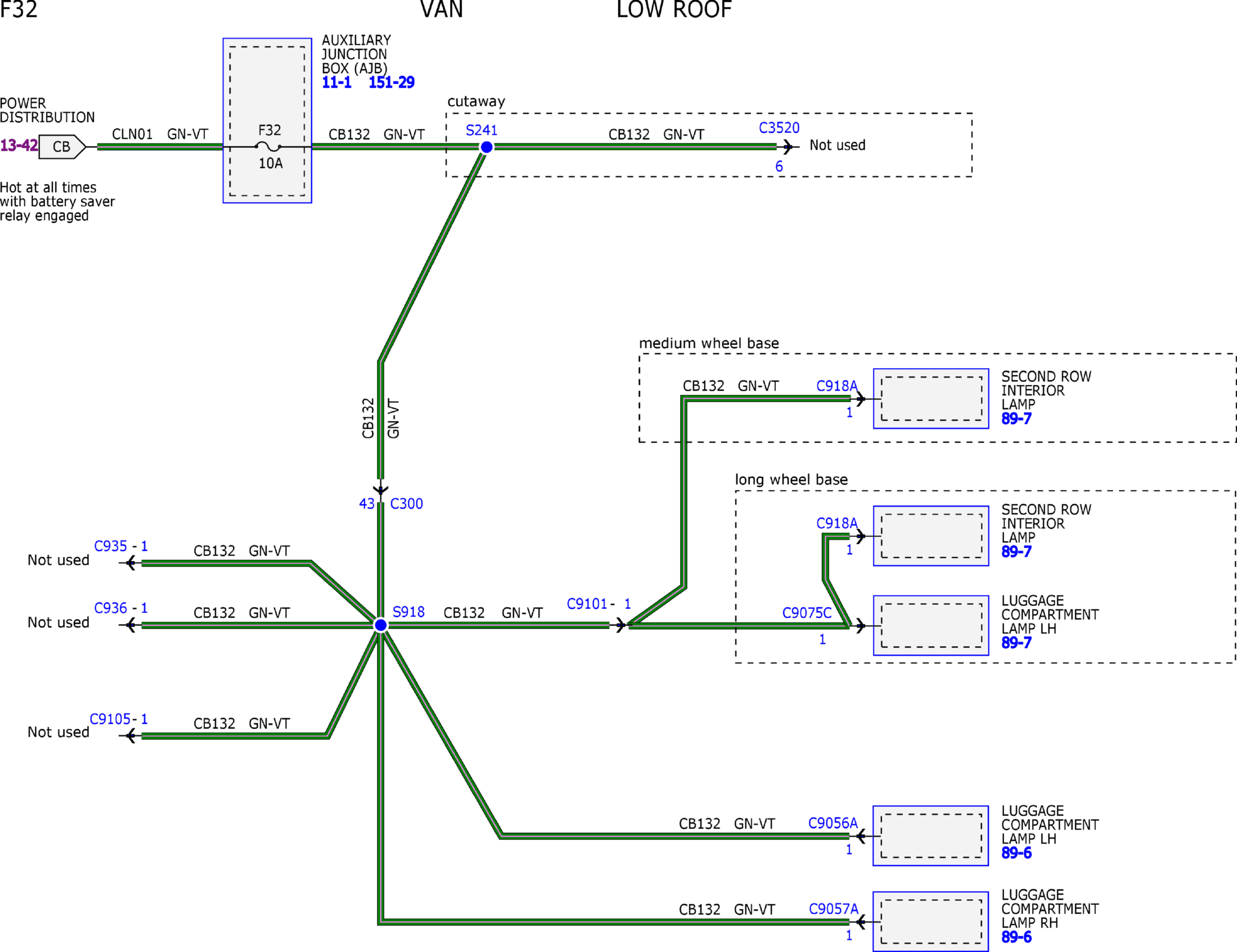

Fig 39: Power Distribution Wiring Diagram (39 of 65)

GFDW61668

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution Wiring Diagram (40 of 65)

GFDW61669

Courtesy of FORD MOTOR COMPANY

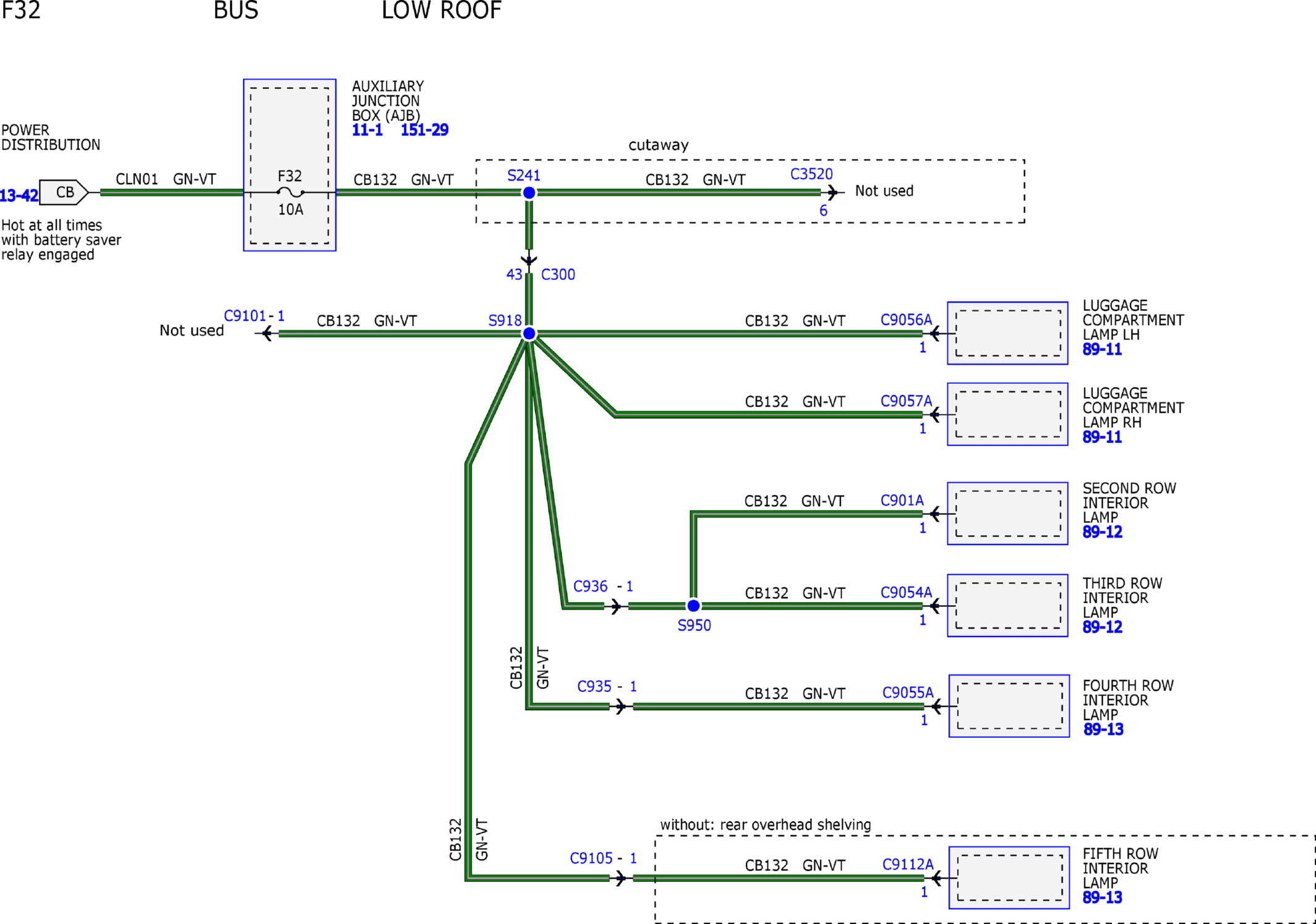

Fig 41: Power Distribution Wiring Diagram (41 of 65)

GFDW61670

Courtesy of FORD MOTOR COMPANY

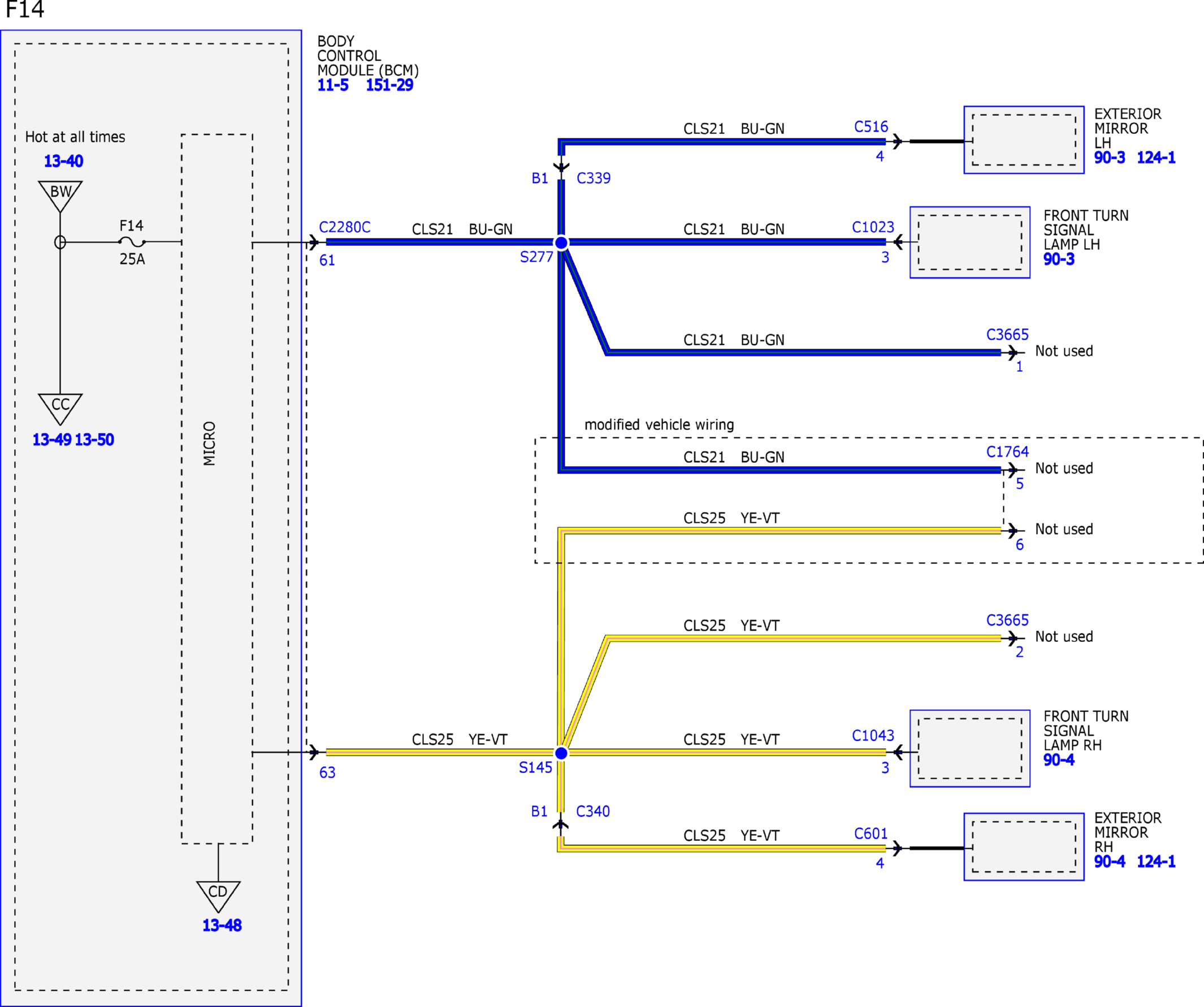

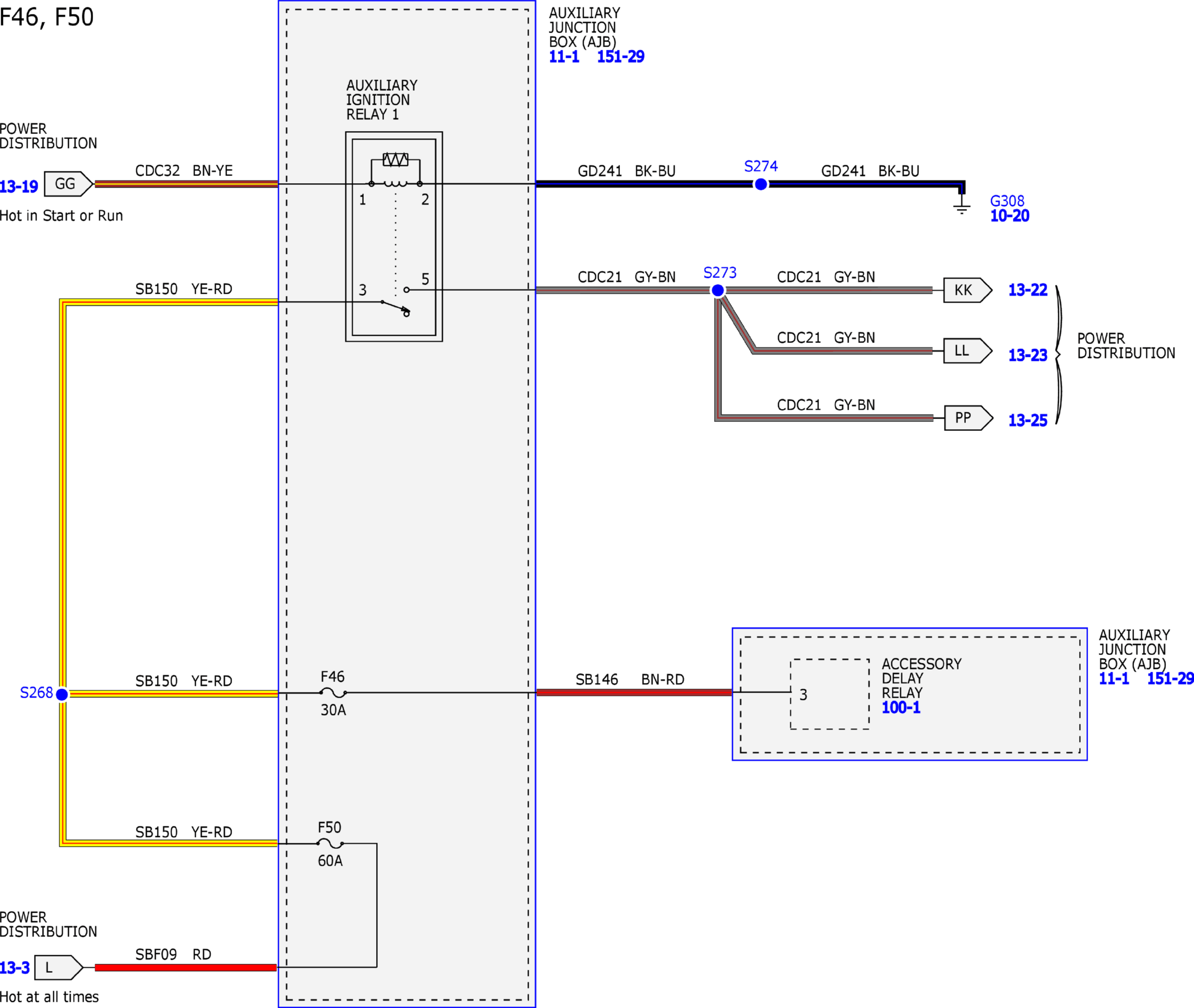

Fig 42: Power Distribution Wiring Diagram (42 of 65)

GFDW61671

Courtesy of FORD MOTOR COMPANY

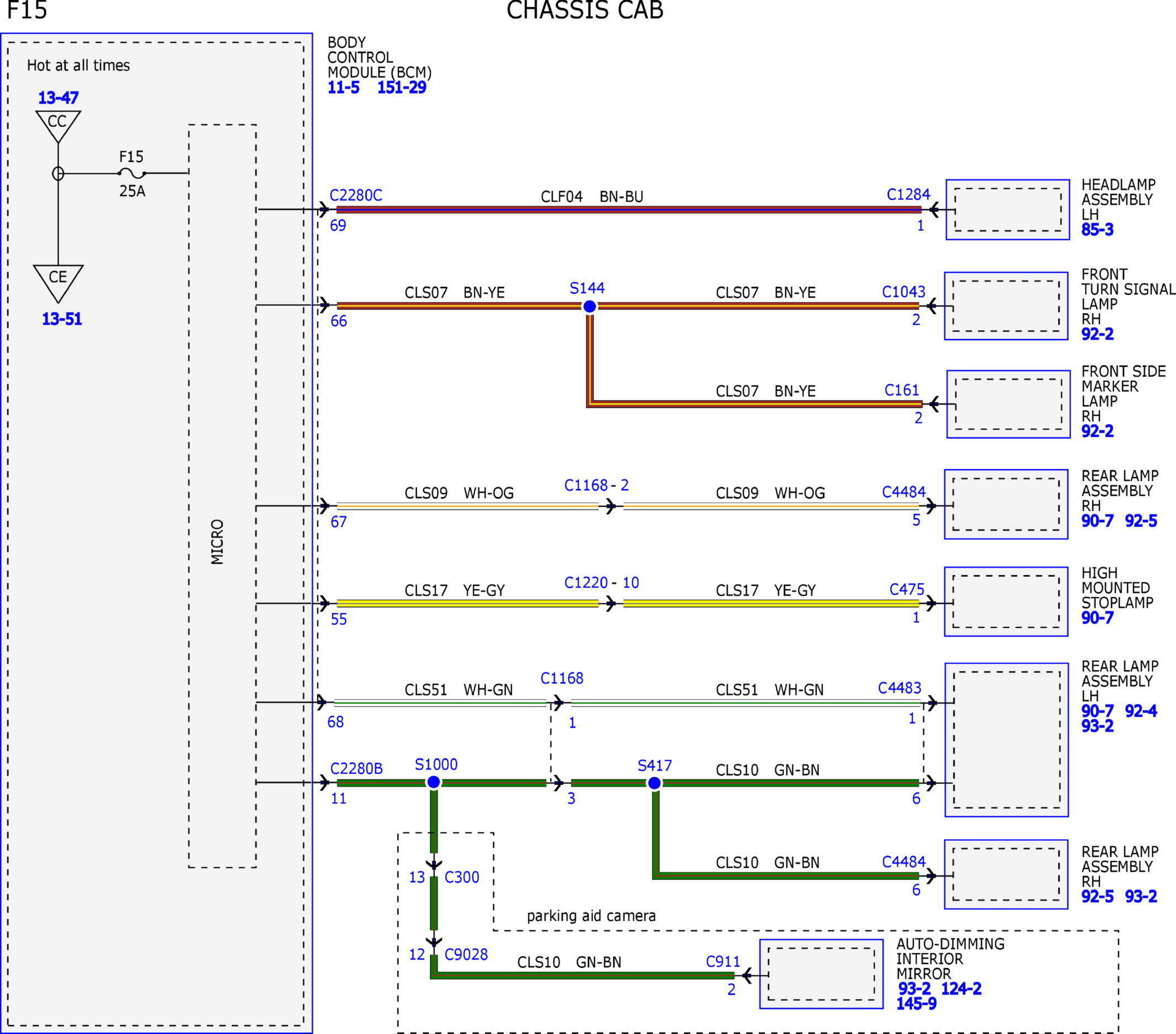

Fig 43: Power Distribution Wiring Diagram (43 of 65)

GFDW61672

Courtesy of FORD MOTOR COMPANY

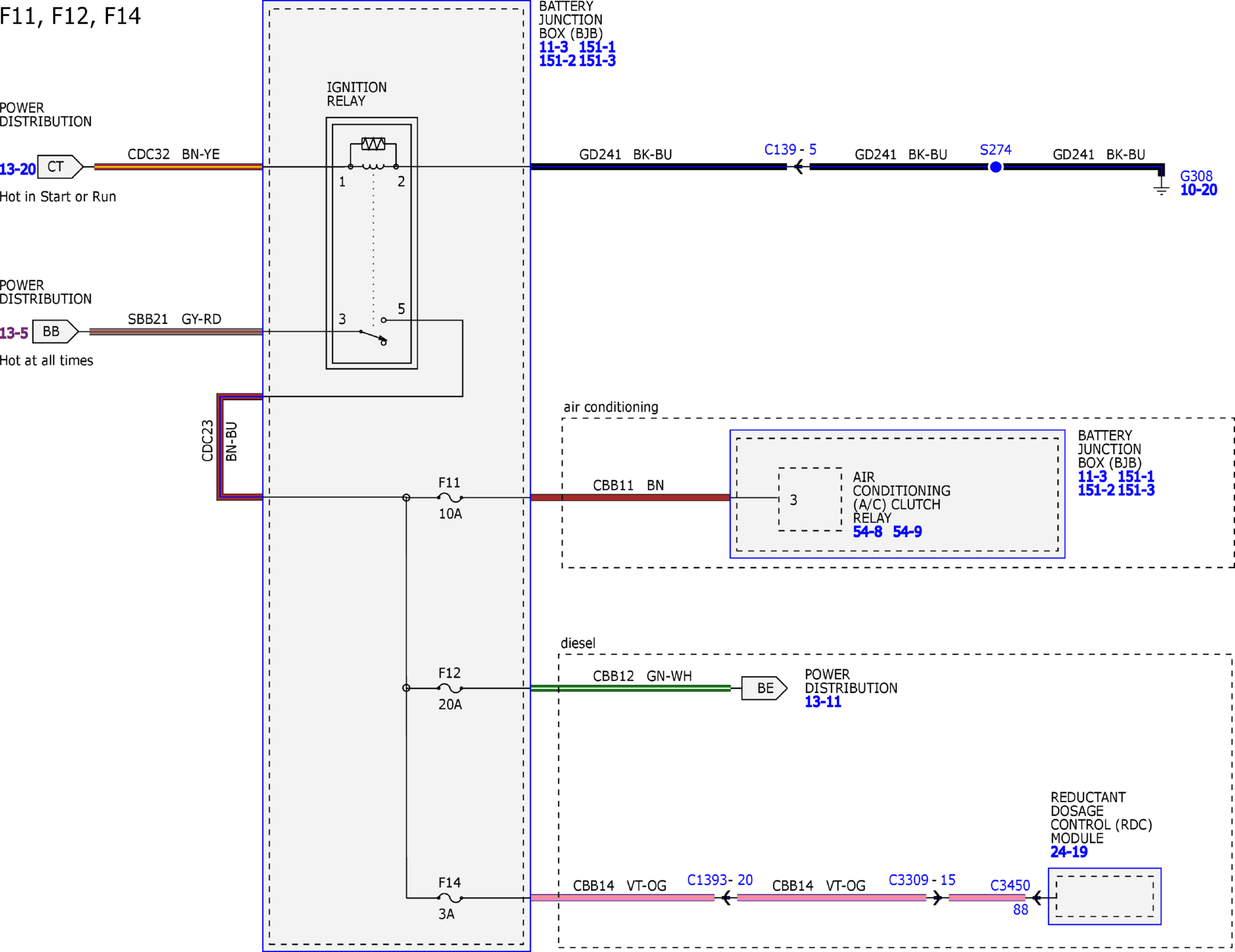

Fig 44: Power Distribution Wiring Diagram (44 of 65)

GFDW61673

Courtesy of FORD MOTOR COMPANY

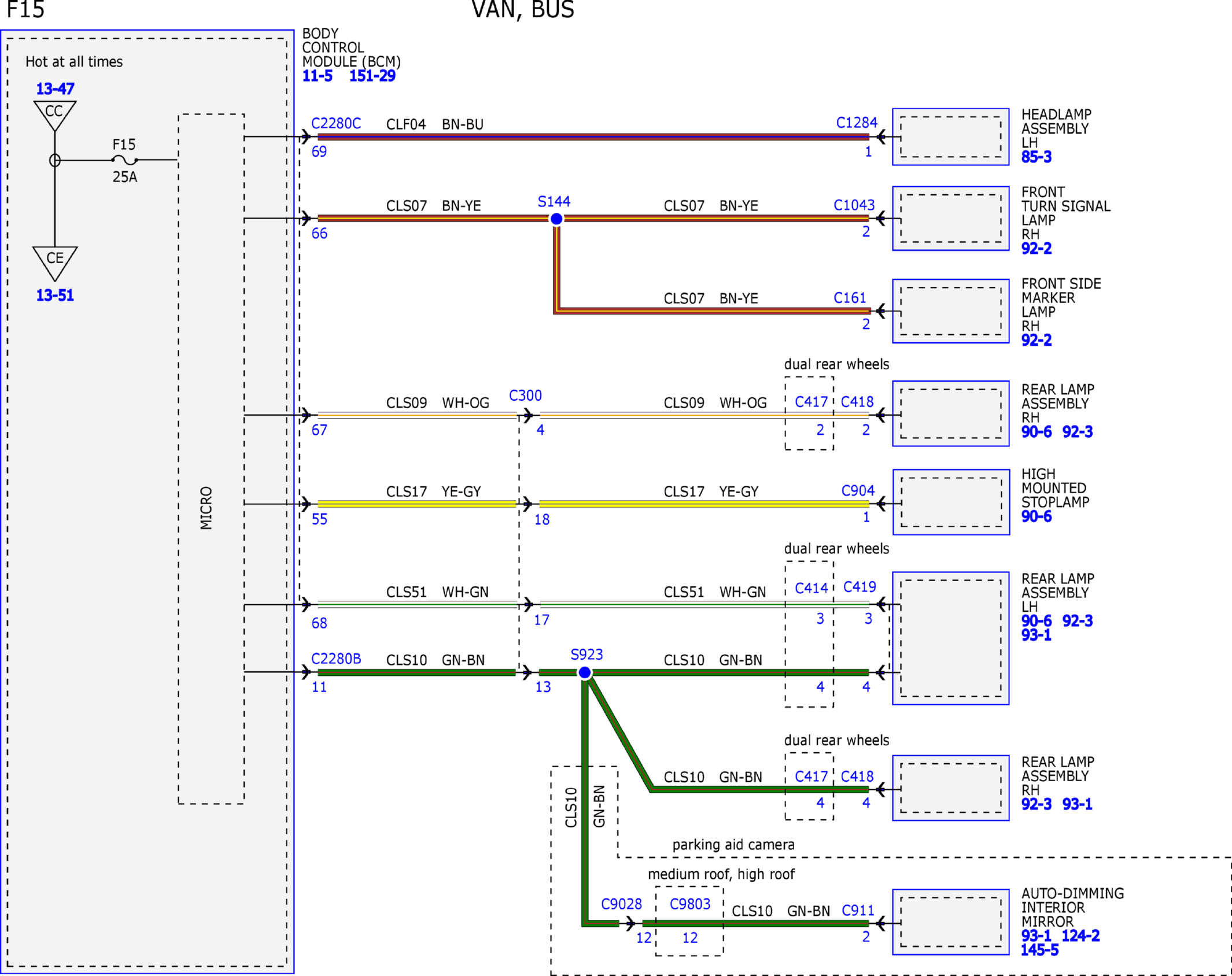

Fig 45: Power Distribution Wiring Diagram (45 of 65)

GFDW61674

Courtesy of FORD MOTOR COMPANY

Fig 46: Power Distribution Wiring Diagram (46 of 65)

GFDW61675

Courtesy of FORD MOTOR COMPANY

Fig 47: Power Distribution Wiring Diagram (47 of 65)

GFDW61676

Courtesy of FORD MOTOR COMPANY

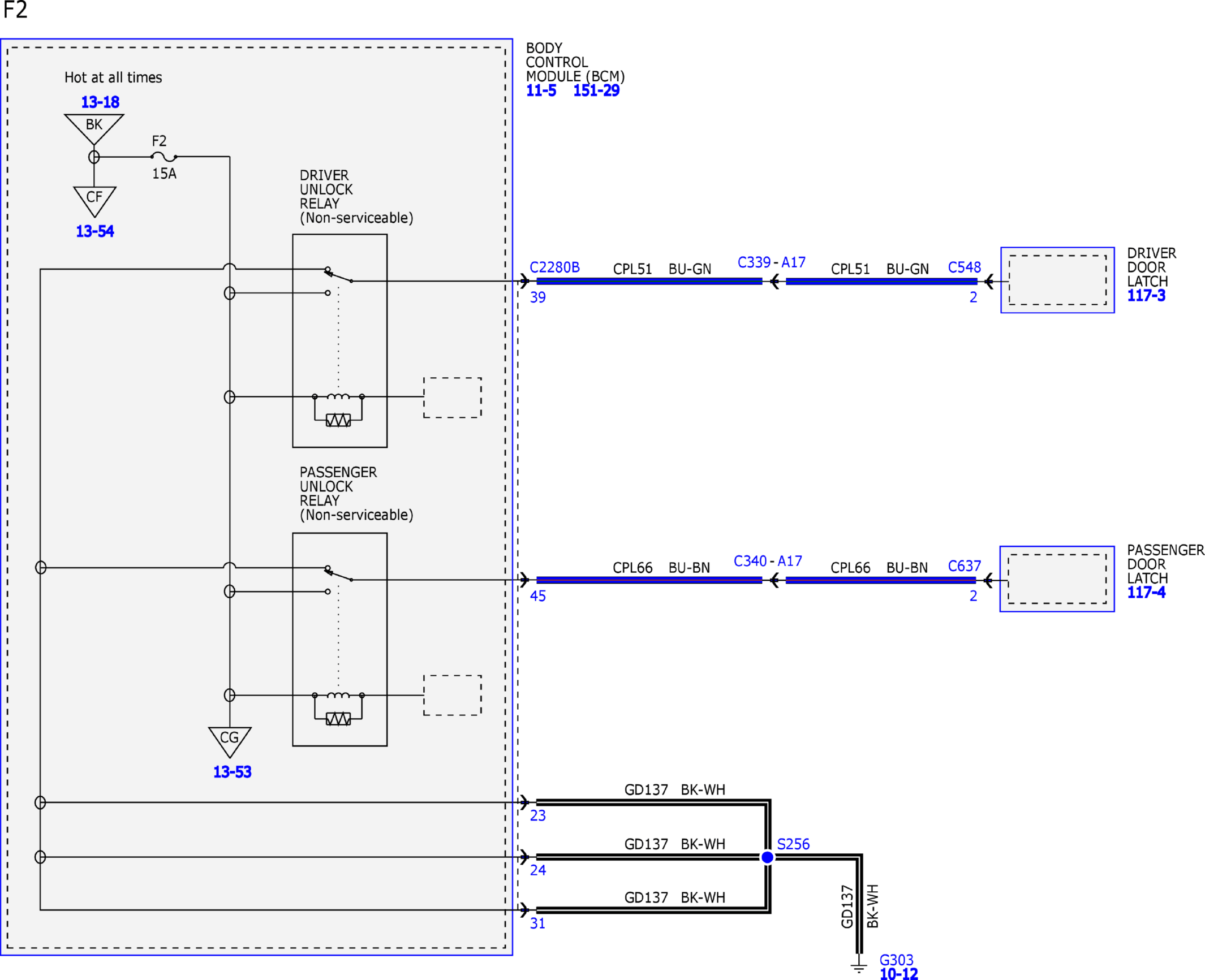

Fig 48: Power Distribution Wiring Diagram (48 of 65)

GFDW61677

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution Wiring Diagram (49 of 65)

GFDW61678

Courtesy of FORD MOTOR COMPANY

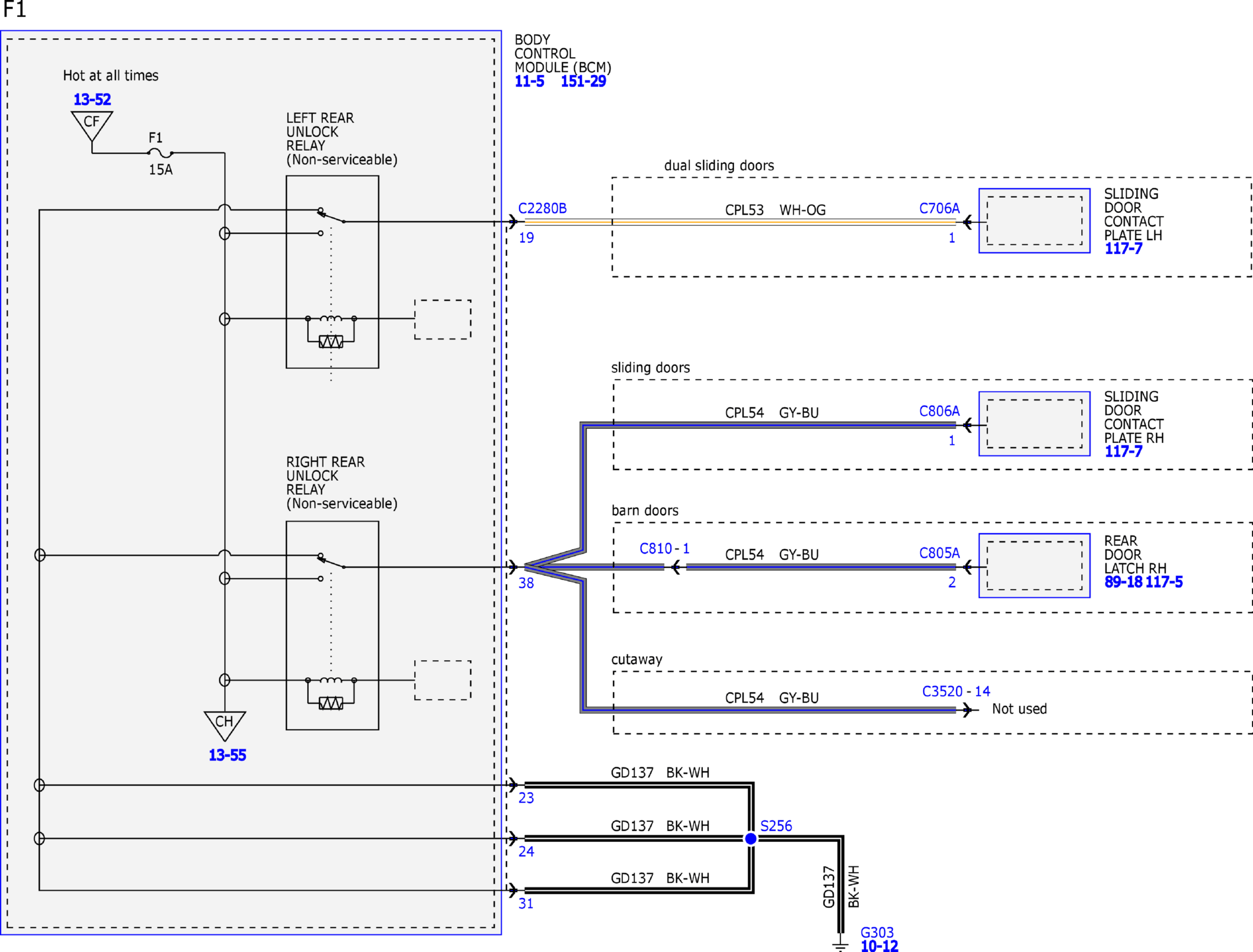

Fig 50: Power Distribution Wiring Diagram (50 of 65)

GFDW61679

Courtesy of FORD MOTOR COMPANY

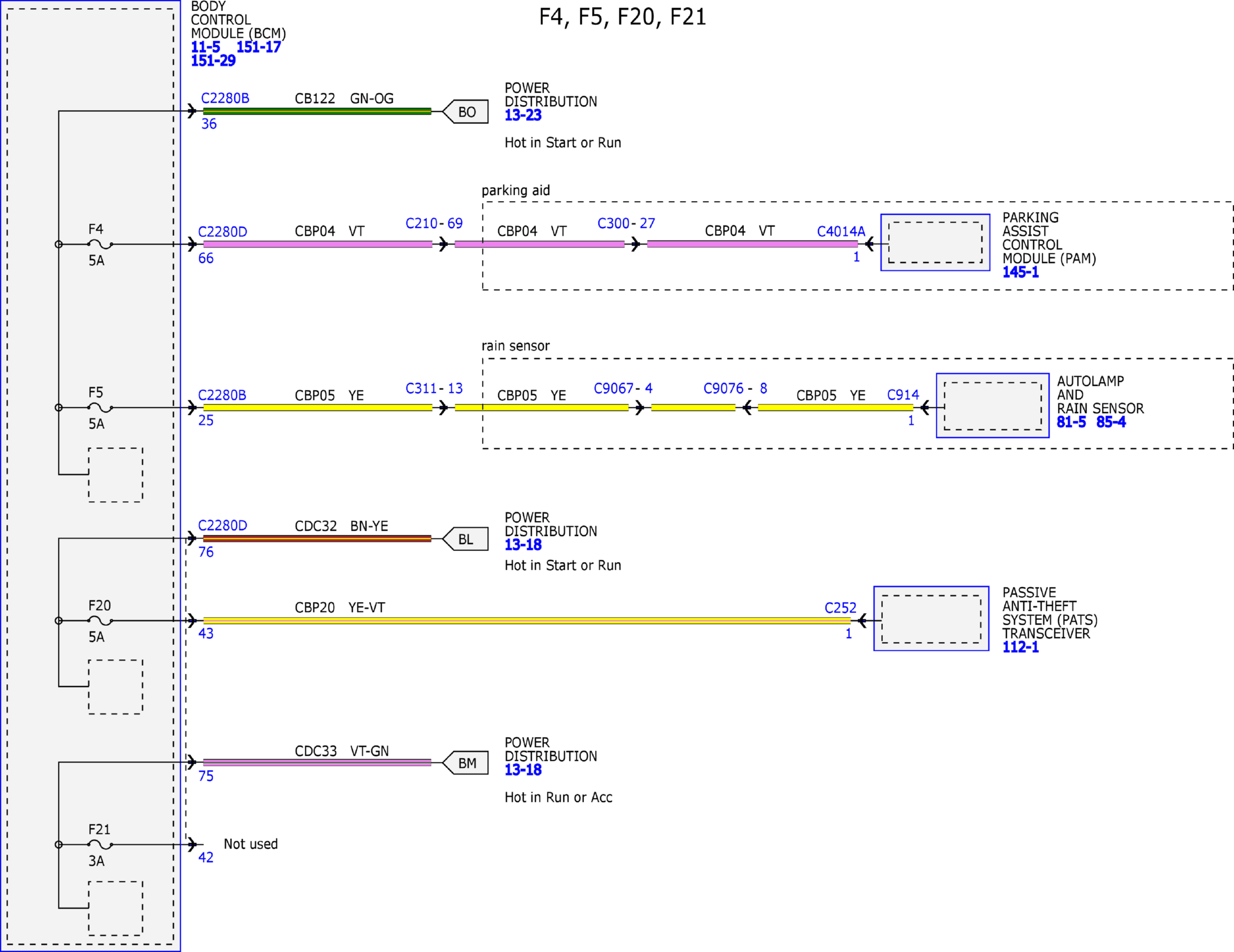

Fig 51: Power Distribution Wiring Diagram (51 of 65)

GFDW61680

Courtesy of FORD MOTOR COMPANY

Fig 52: Power Distribution Wiring Diagram (52 of 65)

GFDW61681

Courtesy of FORD MOTOR COMPANY

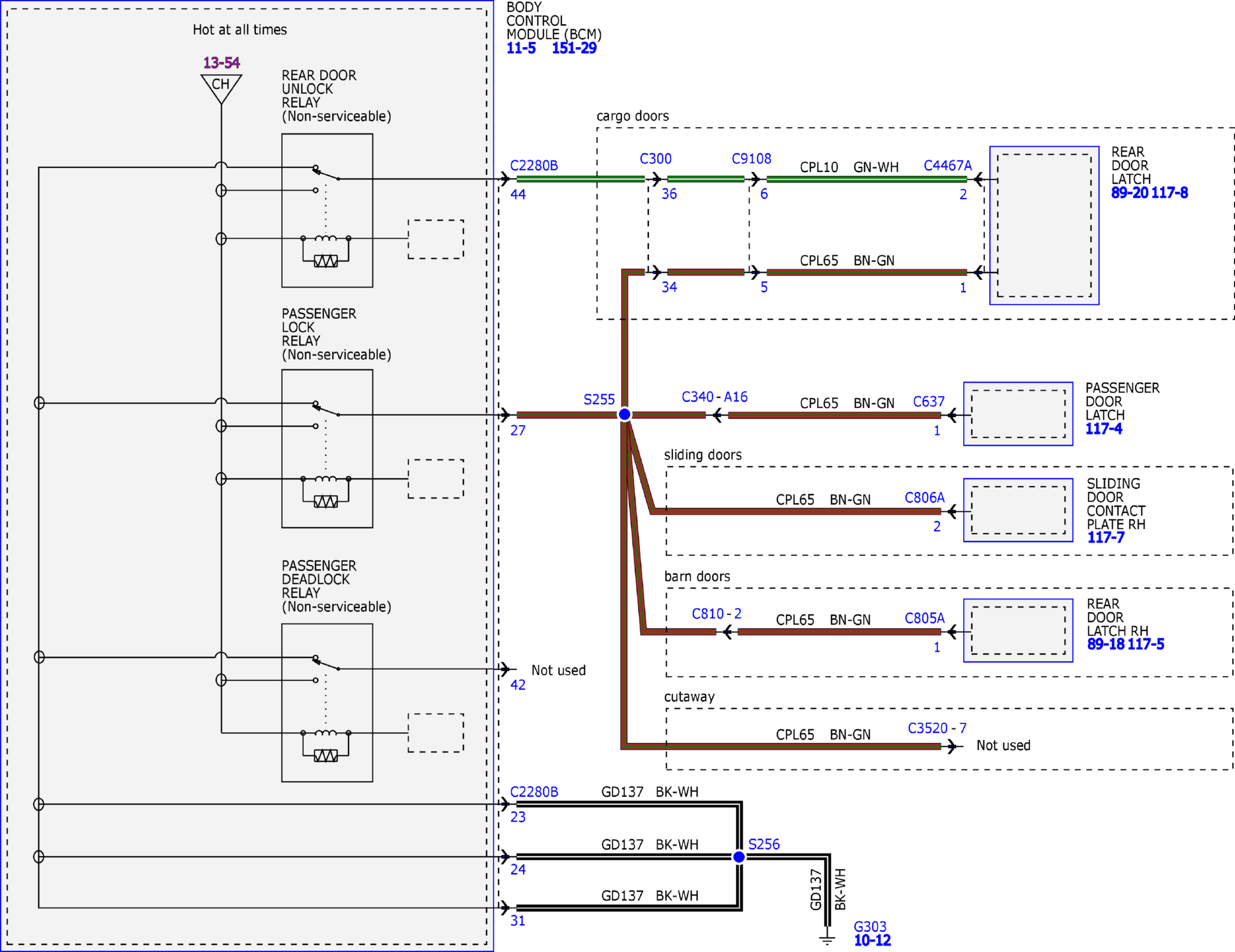

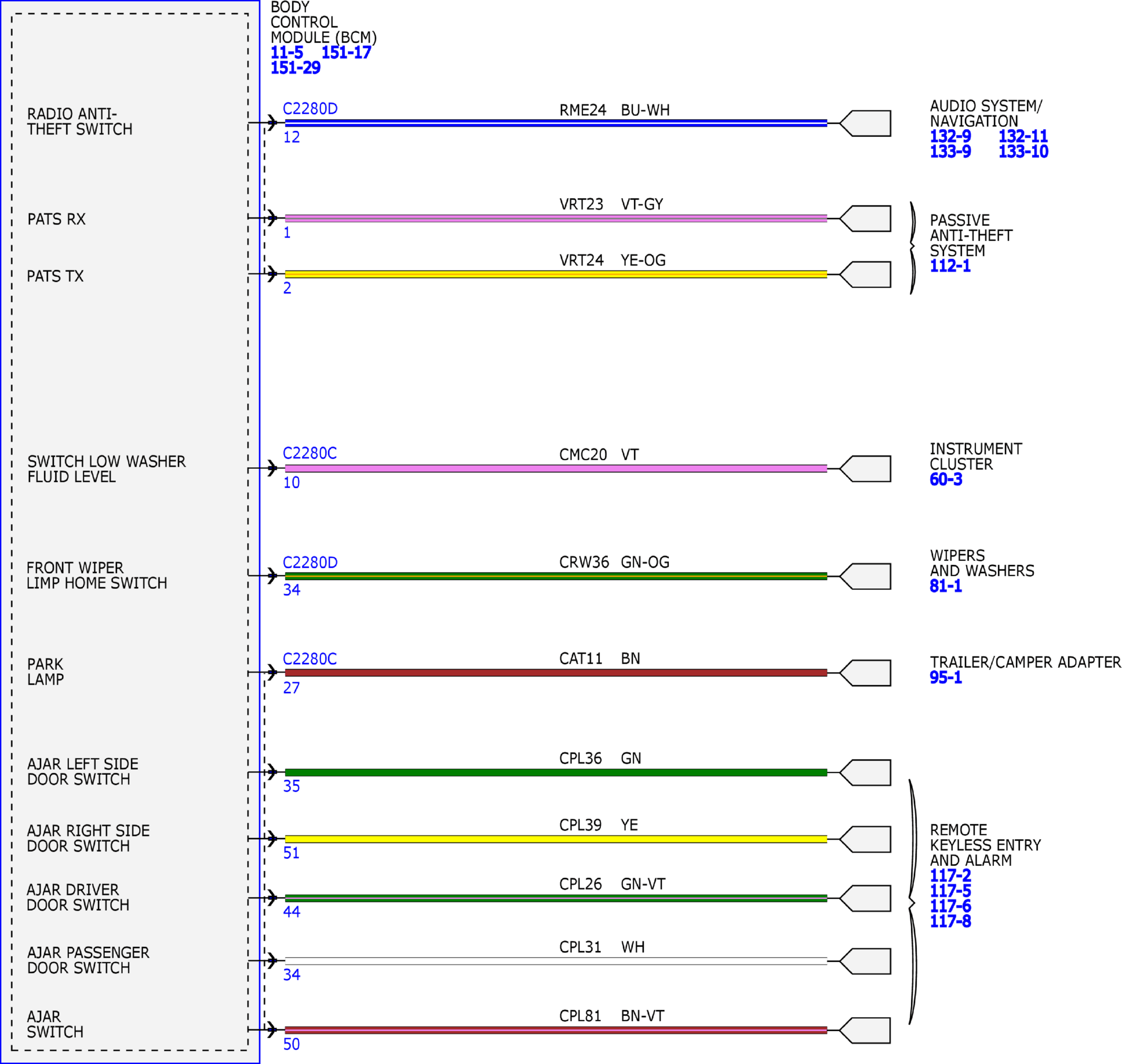

Fig 53: Power Distribution Wiring Diagram (53 of 65)

GFDW61682

Courtesy of FORD MOTOR COMPANY

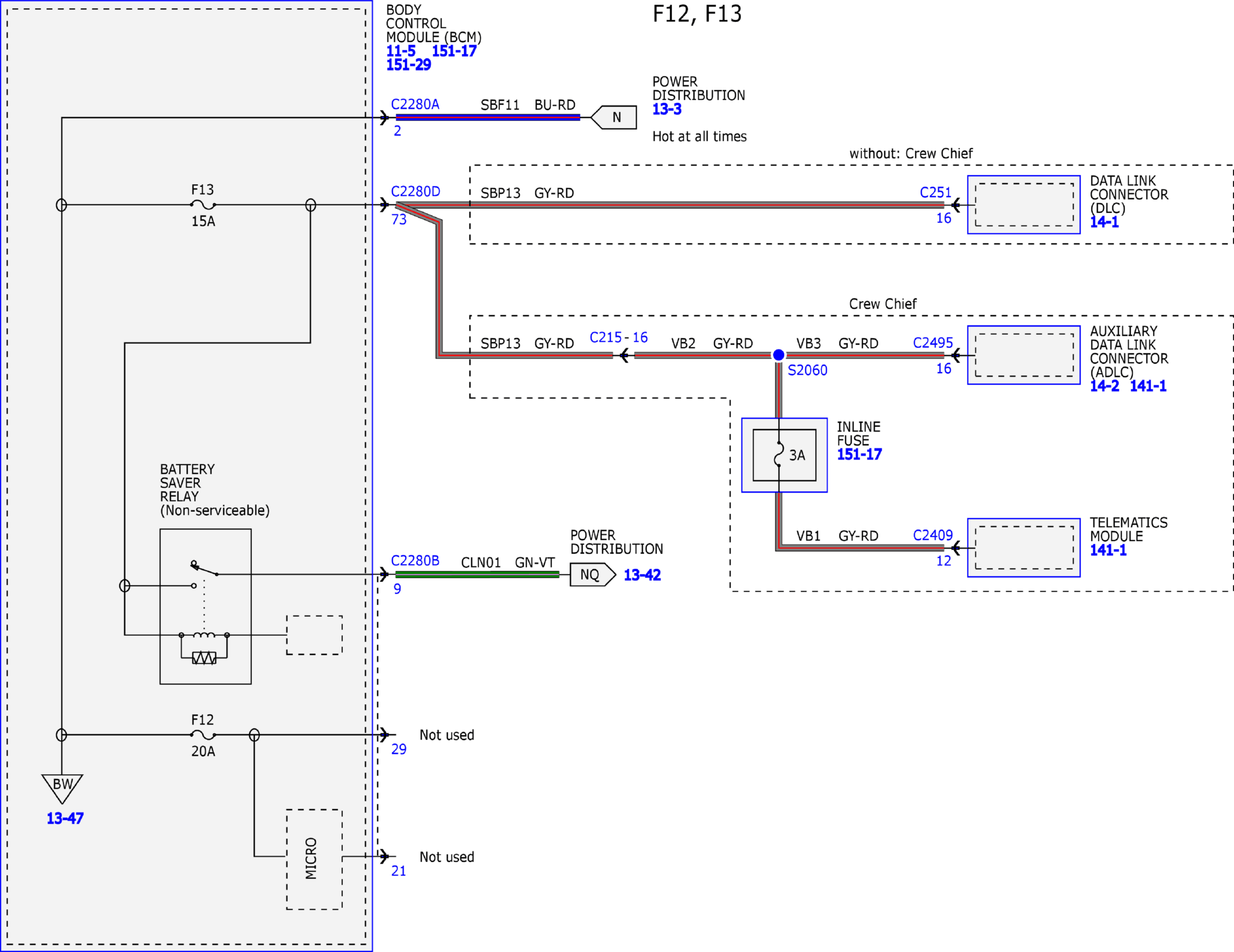

Fig 54: Power Distribution Wiring Diagram (54 of 65)

GFDW61683

Courtesy of FORD MOTOR COMPANY

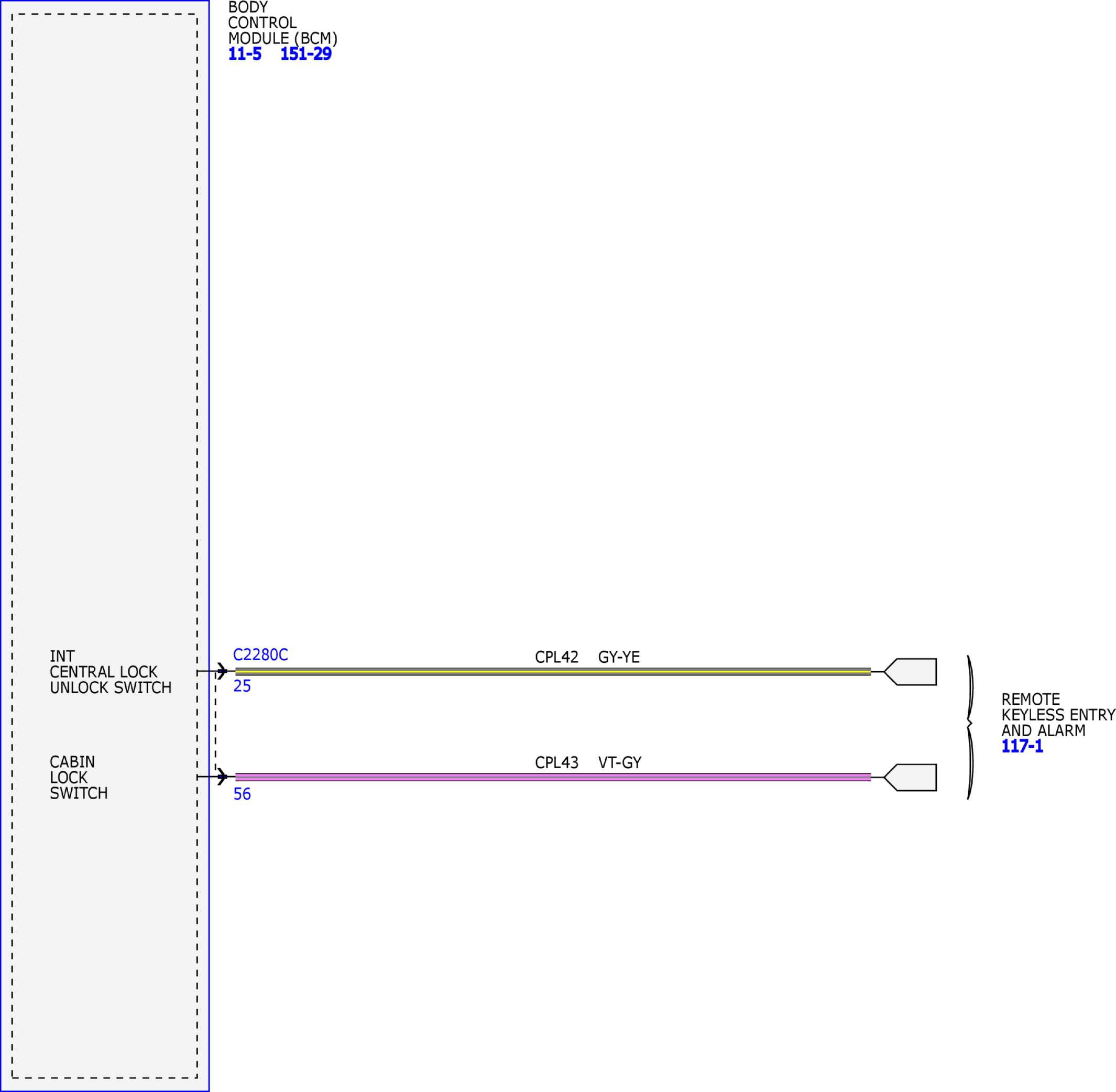

Fig 55: Power Distribution Wiring Diagram (55 of 65)

GFDW61684

Courtesy of FORD MOTOR COMPANY

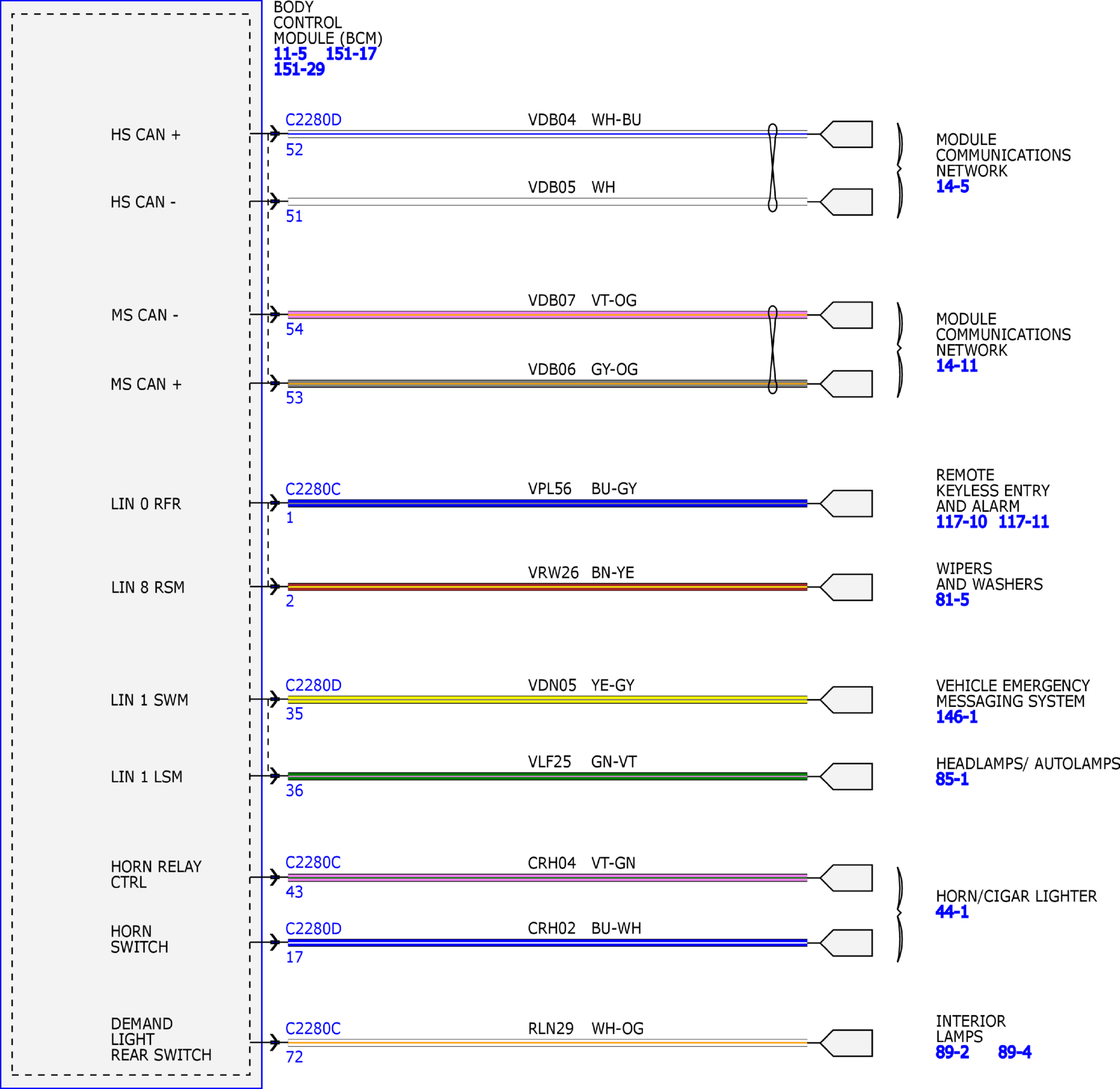

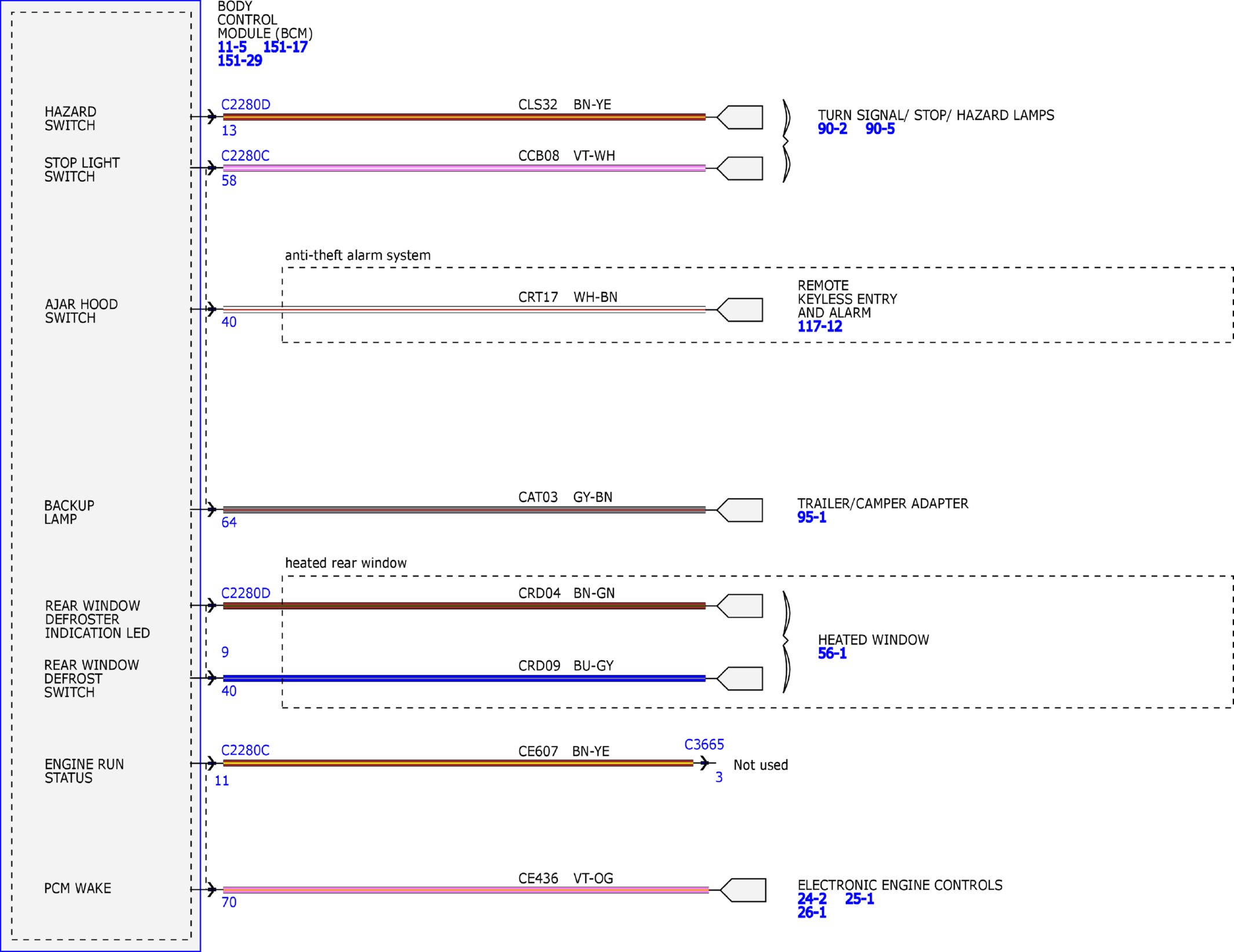

Fig 56: Power Distribution Wiring Diagram (56 of 65)

GFDW61685

Courtesy of FORD MOTOR COMPANY

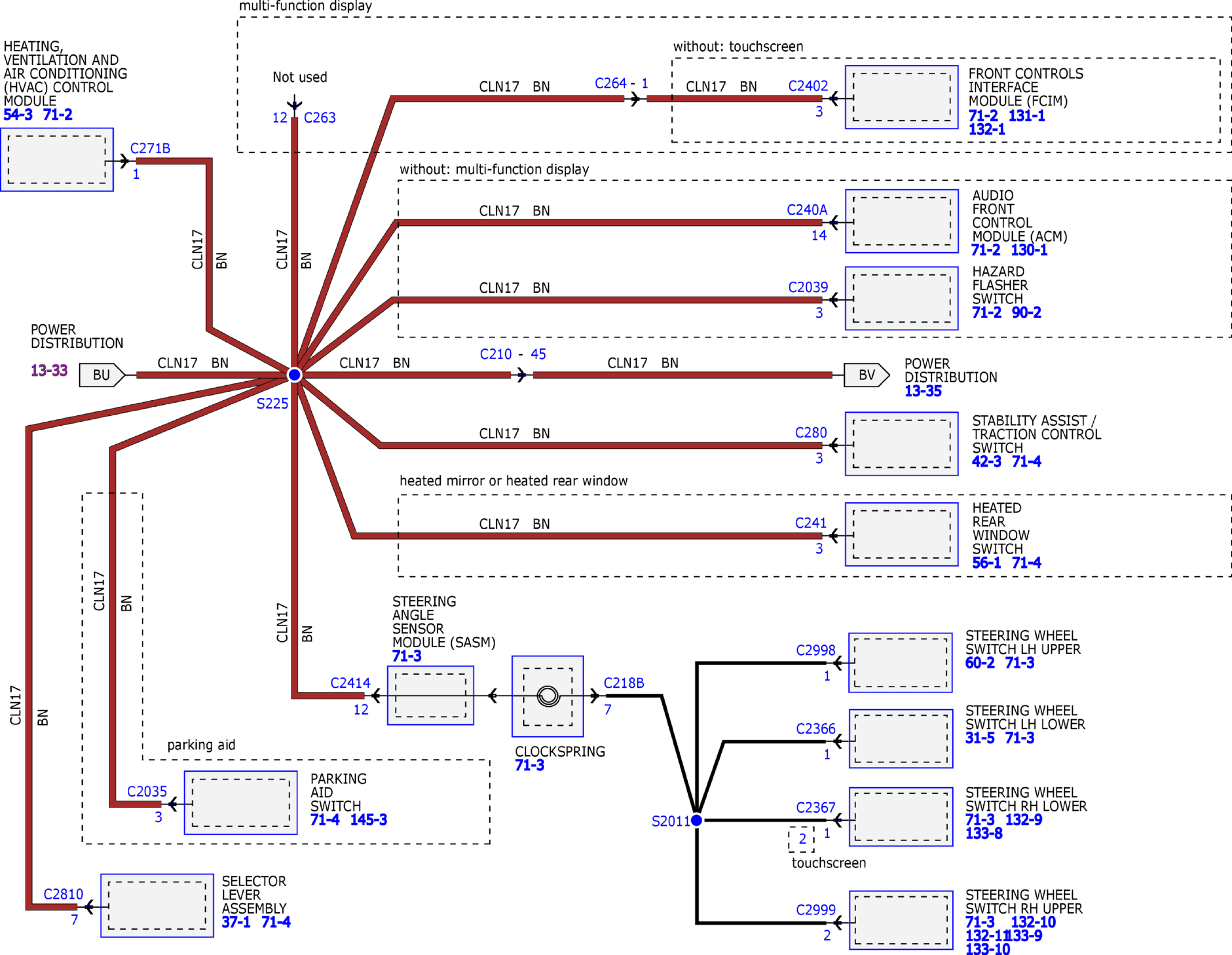

Fig 57: Power Distribution Wiring Diagram (57 of 65)

GFDW61686

Courtesy of FORD MOTOR COMPANY

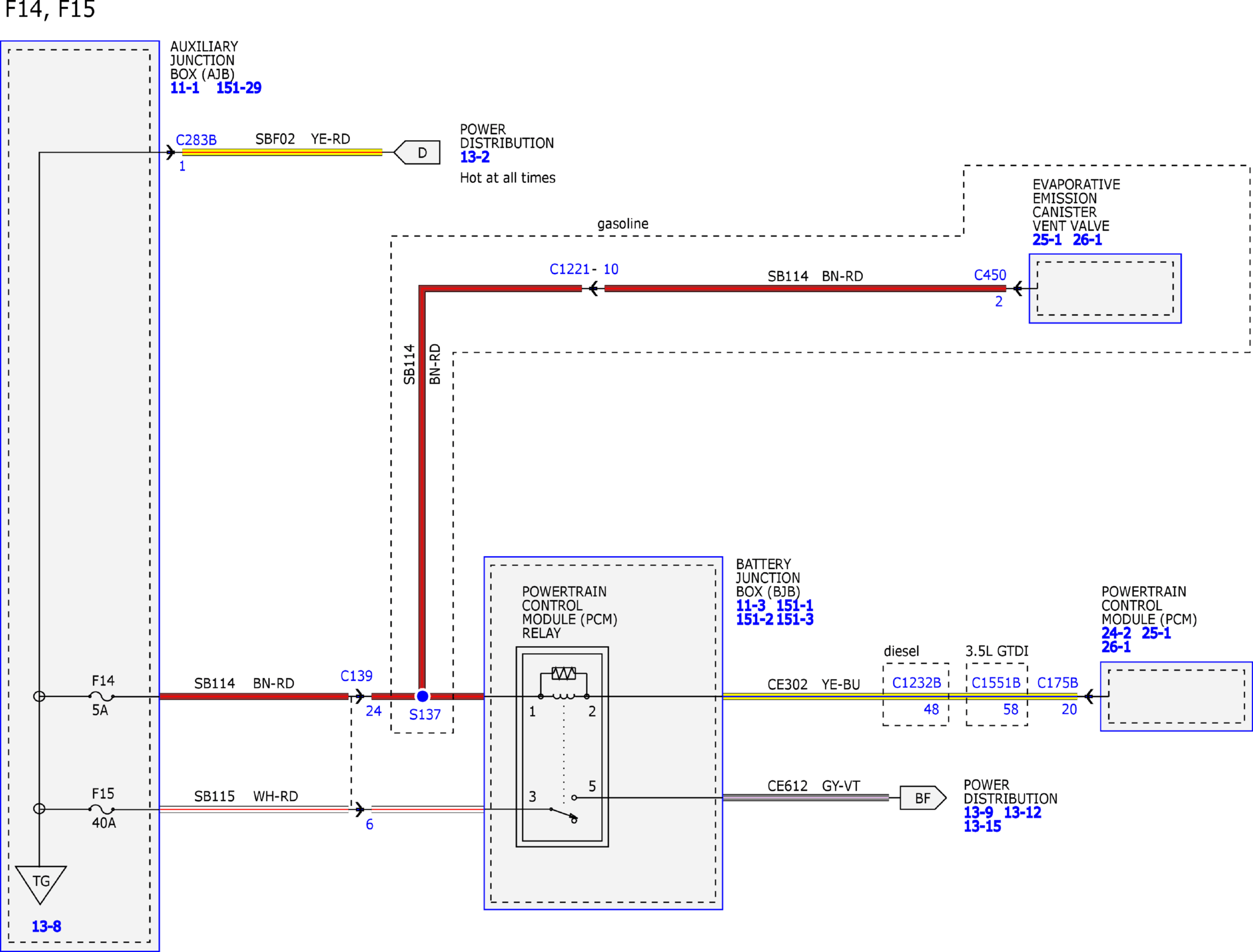

Fig 58: Power Distribution Wiring Diagram (58 of 65)

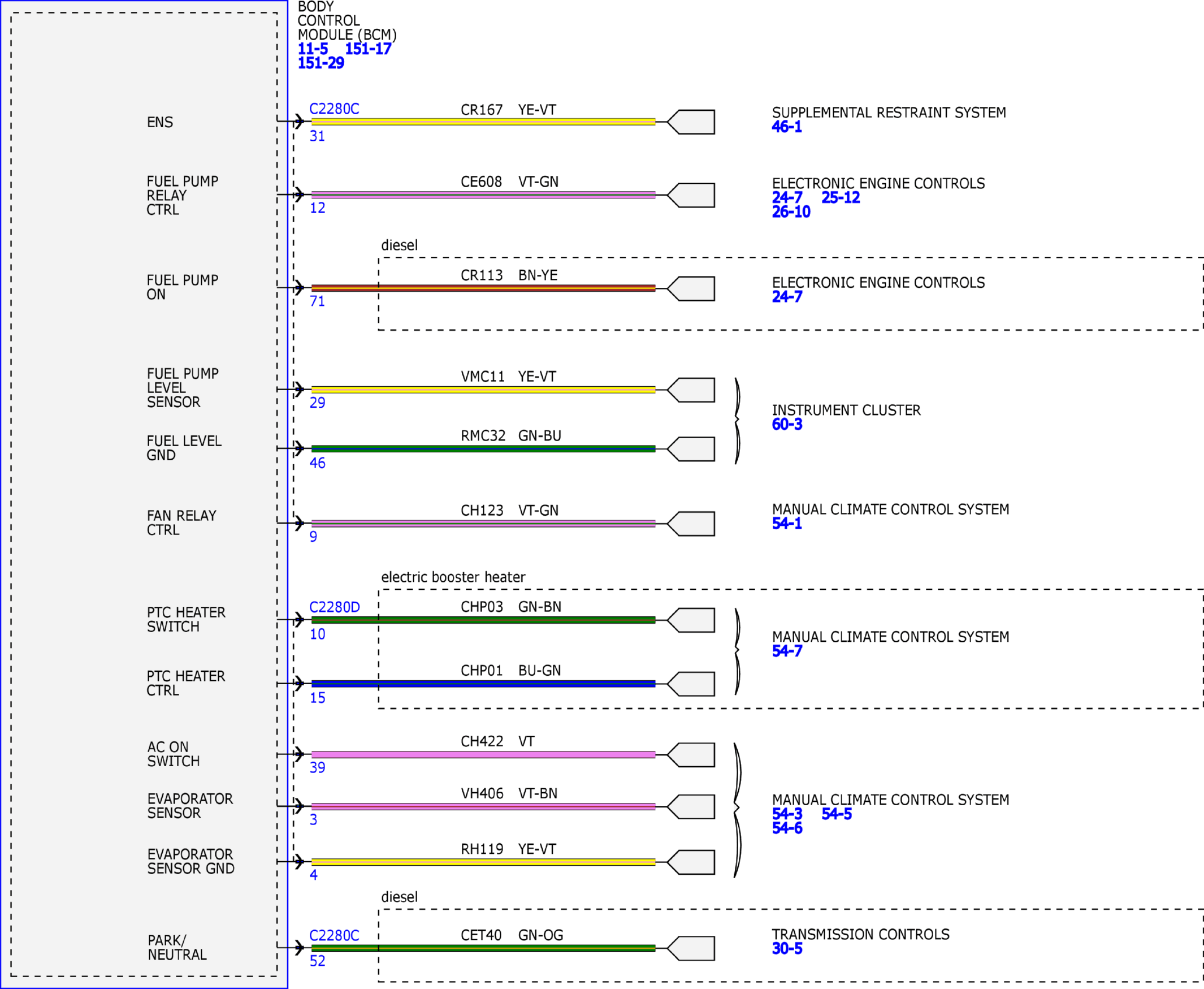

GFDW61687

Courtesy of FORD MOTOR COMPANY

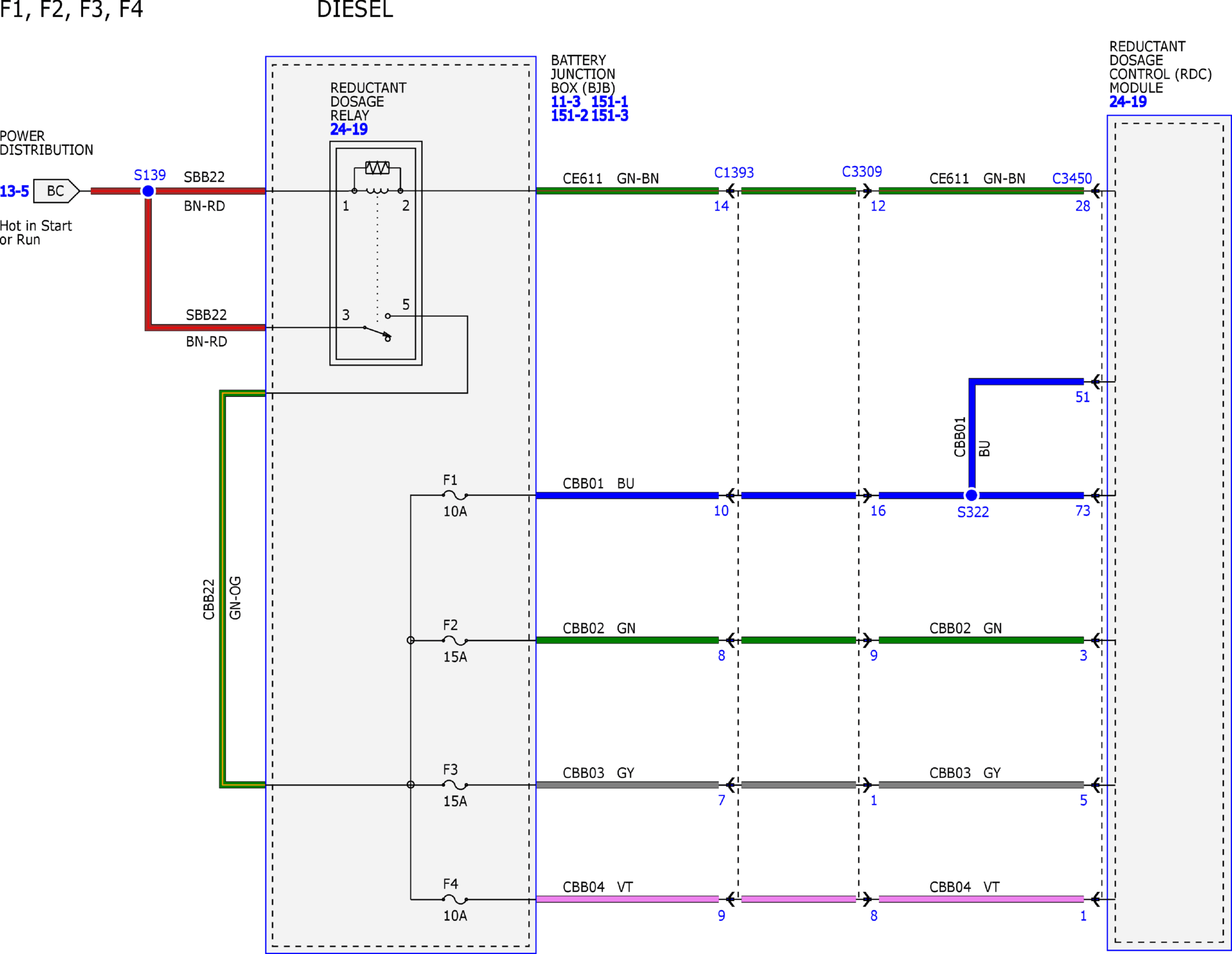

Fig 59: Power Distribution Wiring Diagram (59 of 65)

GFDW61688

Courtesy of FORD MOTOR COMPANY

Fig 60: Power Distribution Wiring Diagram (60 of 65)

GFDW61689

Courtesy of FORD MOTOR COMPANY

Fig 61: Power Distribution Wiring Diagram (61 of 65)

GFDW61690

Courtesy of FORD MOTOR COMPANY

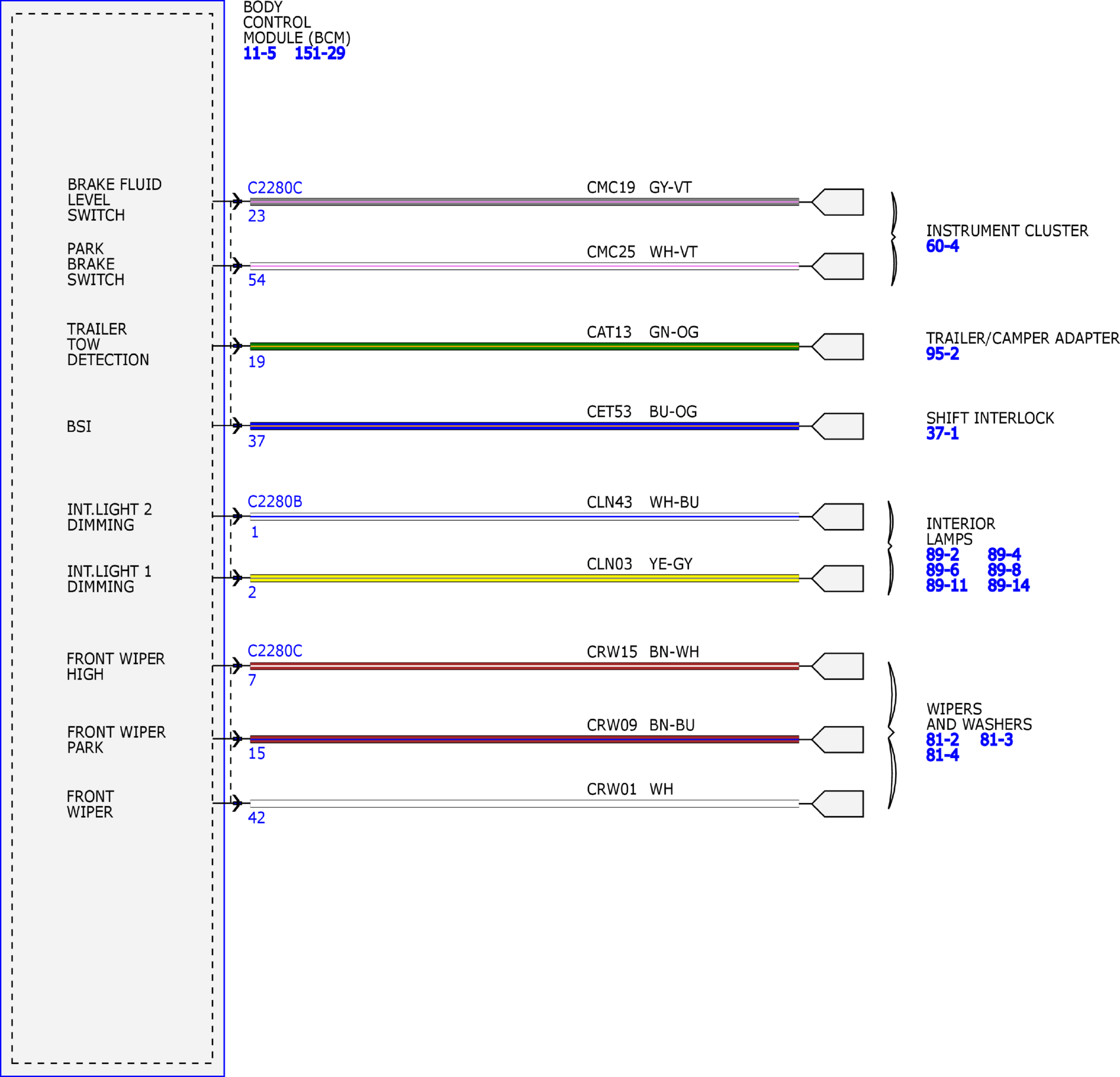

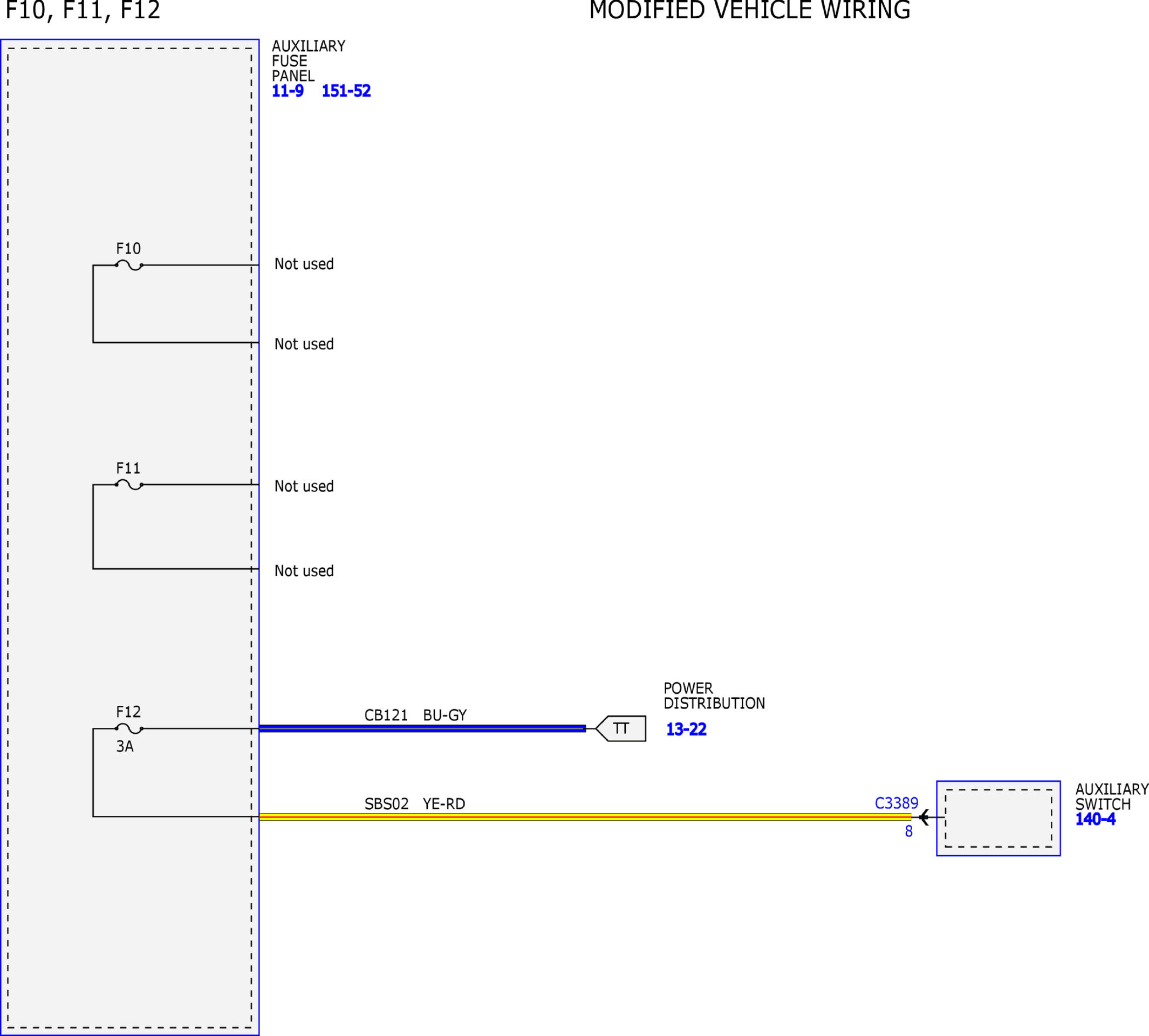

Fig 62: Power Distribution Wiring Diagram (62 of 65)

GFDW61691

Courtesy of FORD MOTOR COMPANY

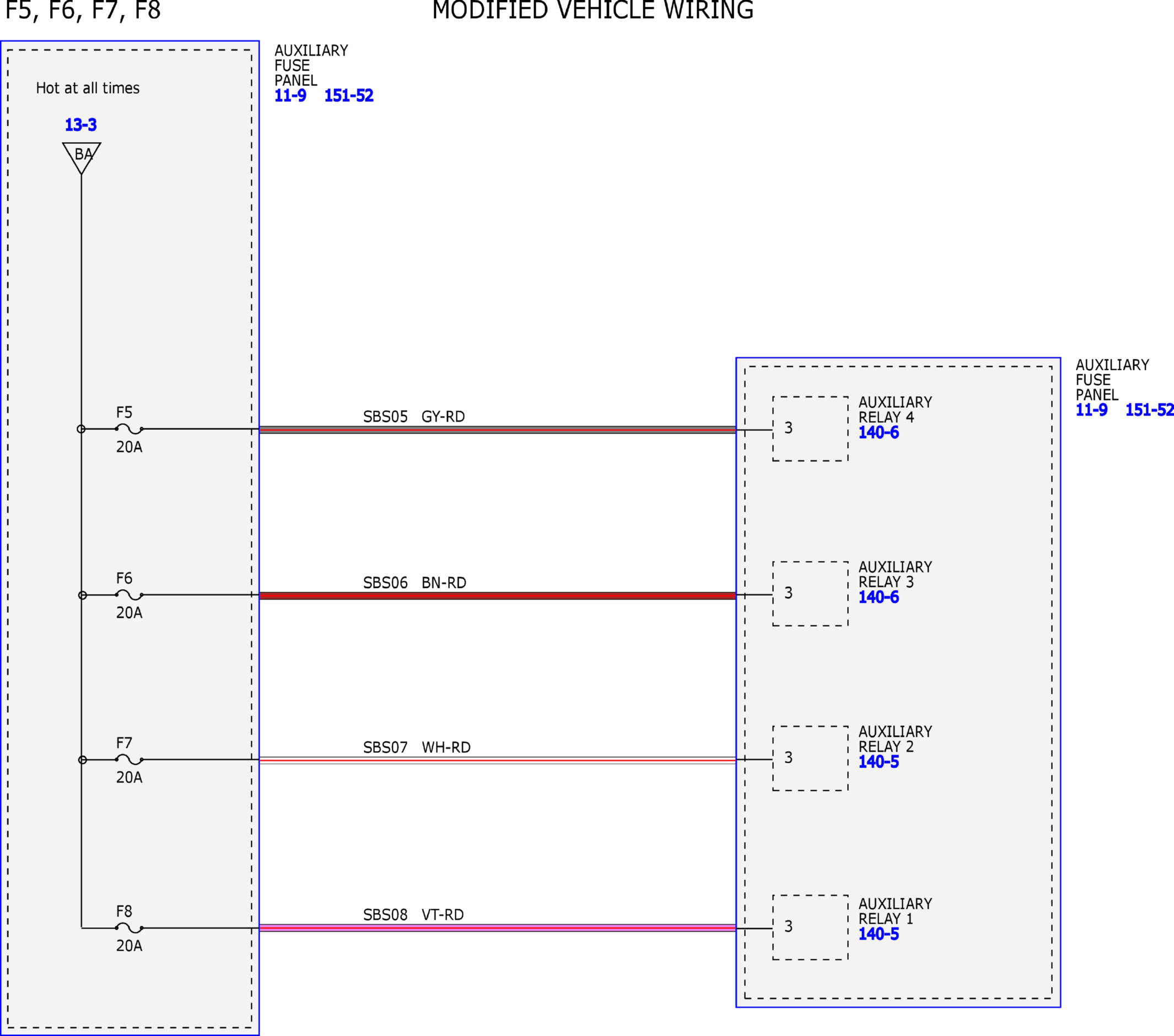

Fig 63: Power Distribution Wiring Diagram (63 of 65)

GFDW61692

Courtesy of FORD MOTOR COMPANY

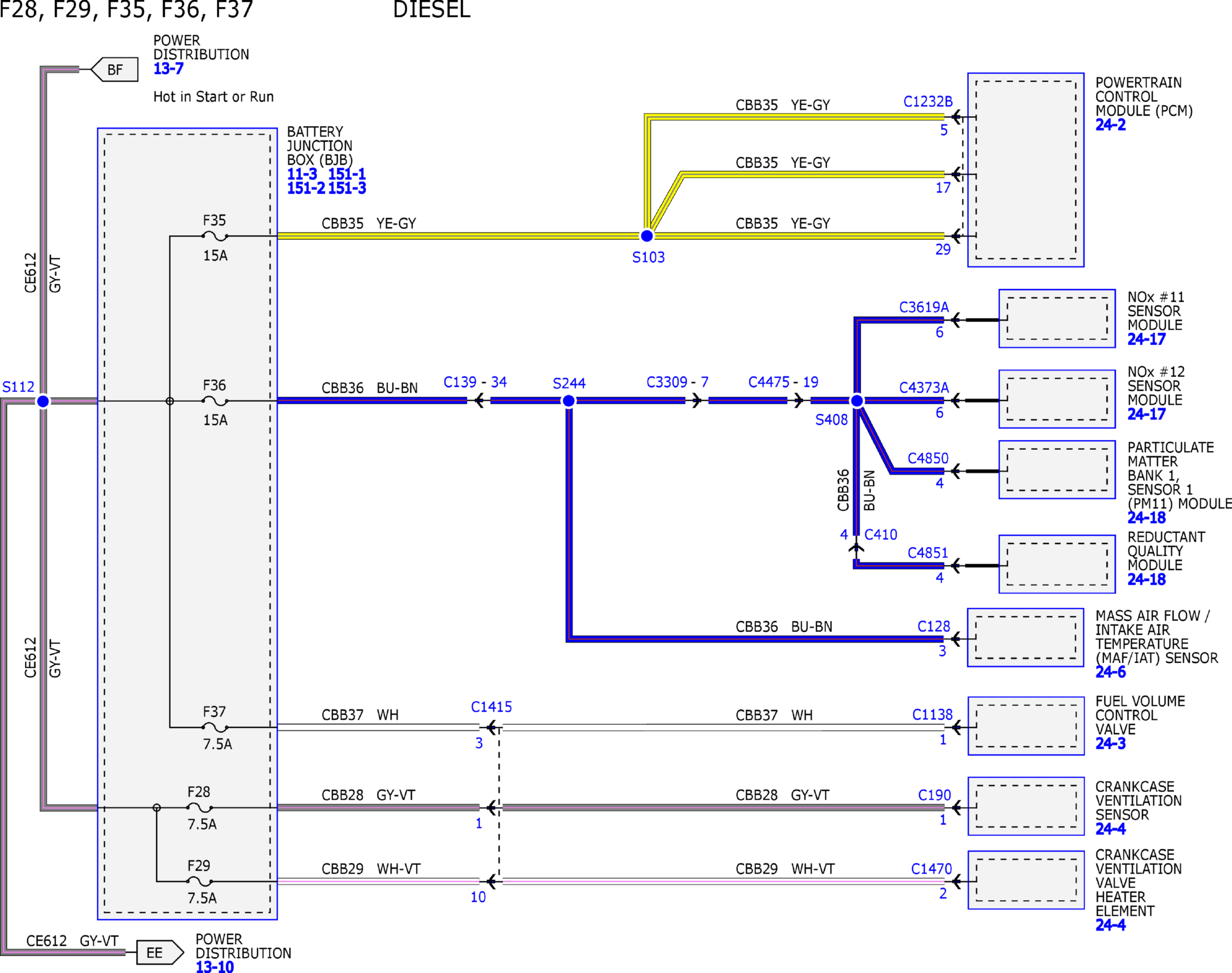

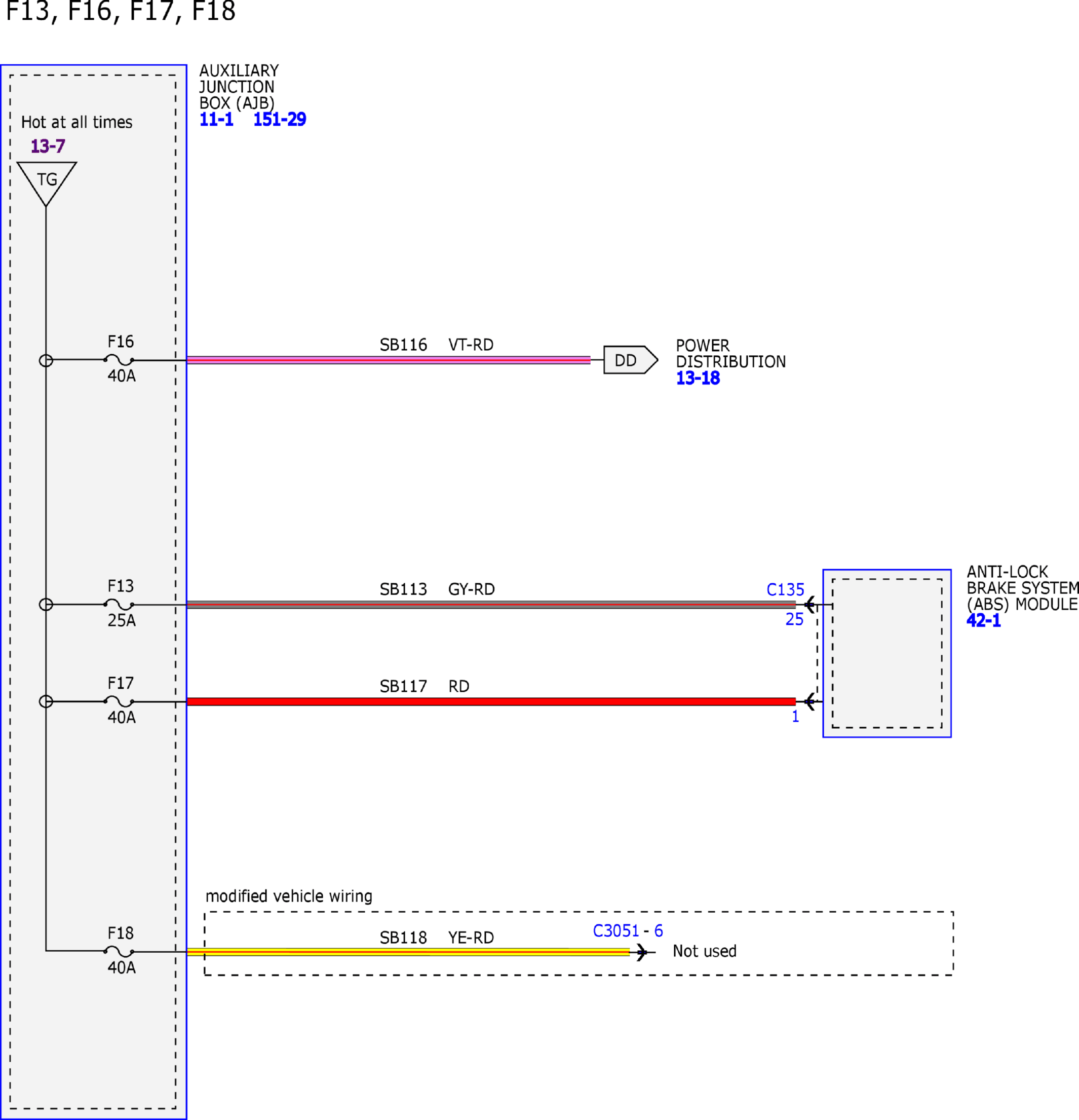

Fig 64: Power Distribution Wiring Diagram (64 of 65)

GFDW61693

Courtesy of FORD MOTOR COMPANY

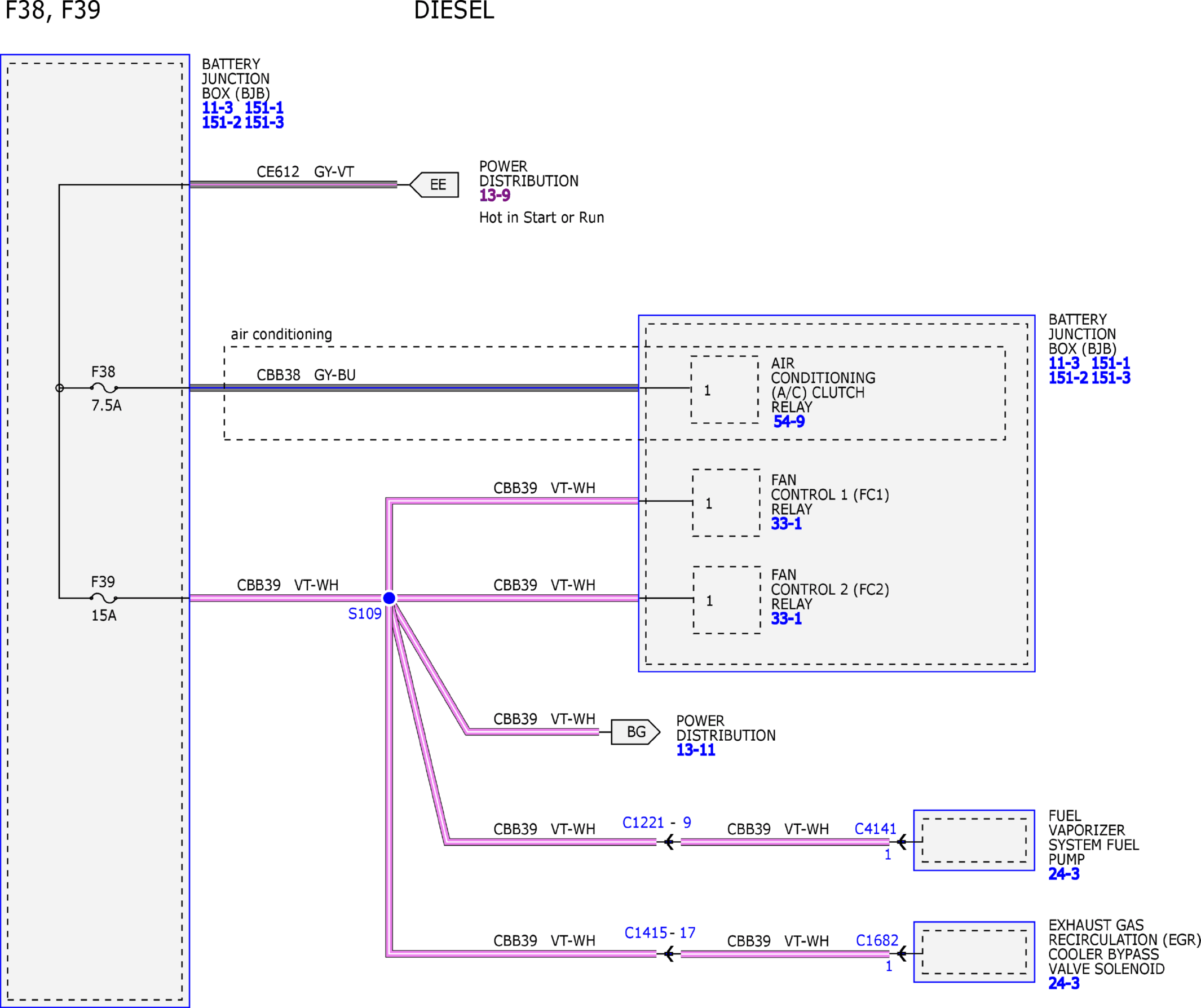

Fig 65: Power Distribution Wiring Diagram (65 of 65)

GFDW61694

Courtesy of FORD MOTOR COMPANY
