Intake Manifold Runner Control (IMRC) Position Sensor: Removal
WARNING: This page is about a different car, the 2017 Ford F-350 Super Duty and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. REFER to: Intake Manifold .
-

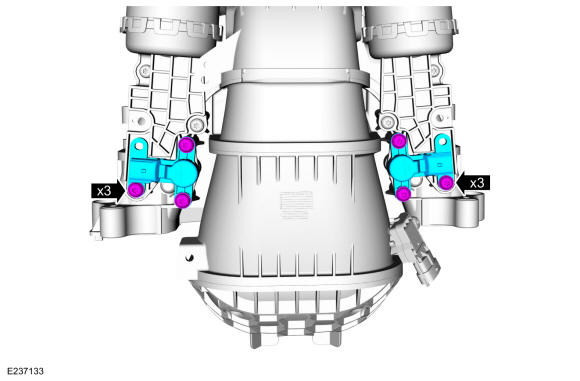

- Remove the retainers and the LHIMRC position sensor.
Torque
: 53 lb.in (6 Nm)
- Remove the retainers and the RHIMRC position sensor.
Torque
: 53 lb.in (6 Nm)
- Remove the retainers and the LHIMRC position sensor.
