Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

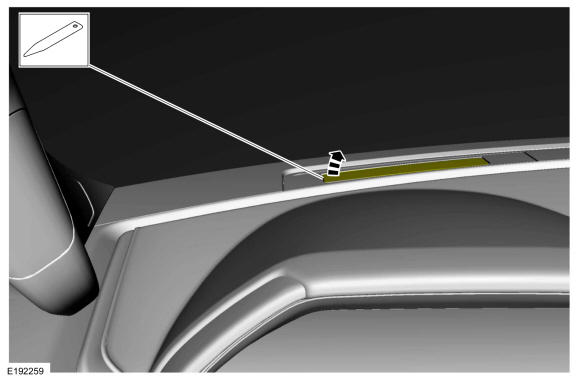

  1. Using a non-marring tool, release the heads up display tab and position the heads up display aside.
    GFD206106Courtesy of FORD MOTOR COMPANY

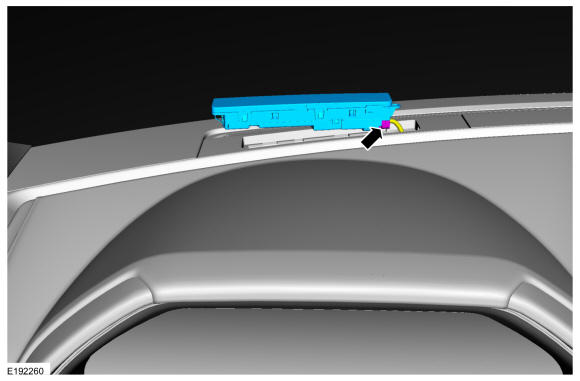

  2. Disconnect the electrical connector and remove the heads up display.
GFD206107Courtesy of FORD MOTOR COMPANY
