Visual Inspection and Diagnostic Pre-Checks

• Make sure AJB fuse 2 (4A) is OK.

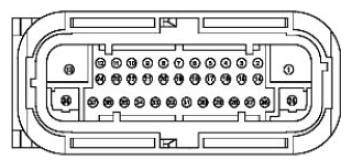

Fig 1: Antilock Braking System (ABS) Module Connector - C135

Courtesy of FORD MOTOR CO.

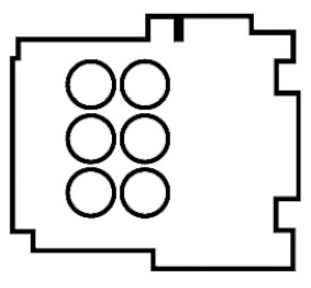

Fig 2: Traction Control Switch Connector - C280 (Harness Side)

Courtesy of FORD MOTOR CO.

Harness Side

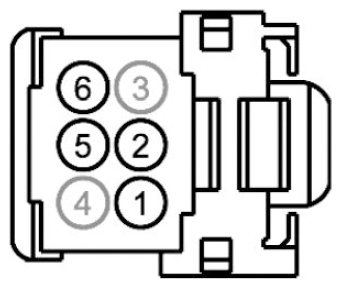

Fig 3: Traction Control Switch Connector - C280 (Component Side)

Courtesy of FORD MOTOR CO.

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may cause damage to the connector.

1. W1: CHECK THE TRACTION CONTROL SWITCH
   • Ignition OFF.
   • Traction Control Switch connector disconnected. (C280)
   • Measure the resistance between:

     (+) Traction Control Switch (C280) Connector, Component Side	(-) Traction Control Switch (C280) Connector, Component Side
     TCS - CCA15 (YELLOW/GRAY) - Pin 6	GND - GD184 - Pin 2

   • Press and release the traction control switch.
   • Is the resistance less than 3 ohms with the switch pressed and greater than 10, 000 ohms with the switch released?

     Yes	No
     If the indicator is inoperative, Go to  W2. If the indicator is always on, Go to  W6.	INSTALL a new traction control switch.

2. W2: CHECK THE TRACTION CONTROL SWITCH LED VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
   • Ignition ON, engine OFF.
   • Verify AJB fuse 2 (4A) is OK. If not OK, Refer to the OEM WIRING DIAGRAMS to identify the possible causes of the circuit short.
   • Measure the voltage between:

     (+) Traction Control Switch (C280) Connector, Harness Side	(-)
     IGN START/RUN - CB102 (GREEN) - Pin 1	Ground

   • Is the voltage greater than 11 volts?

     Yes	No
     Go to  W3.	REPAIR the circuit.

3. W3: CHECK THE INDICATOR CONTROL CIRCUIT FOR AN OPEN
   • Ignition OFF.
   • ABS Module connector disconnected. (C135)
   • Measure the resistance between:

     (+) ABS Module (C135) Connector, Harness Side	(-) Traction Control Switch (C280) Connector, Harness Side
     TCIL - CCA10 (WHITE/BROWN) - Pin 27	TCIL - CCA10 - Pin 5

   • Is the resistance less than 3 ohms?

     Yes	No
     Go to  W4.	REPAIR the circuit.

4. W4: CHECK THE TRACTION CONTROL SWITCH SIGNAL CIRCUIT FOR AN OPEN
   • Measure the resistance between:

     (+) ABS Module (C135) Connector, Harness Side	(-) Traction Control Switch (C280) Connector, Harness Side
     TCS - CCA15 (YELLOW/GRAY) - Pin 9	TCS - CCA15 - Pin 6

   • Is the resistance less than 3 ohms?

     Yes	No
     Go to  W5.	REPAIR the circuit.

5. W5: CHECK THE TRACTION CONTROL SWITCH GROUND CIRCUIT FOR AN OPEN
   • Measure the resistance between:

     (+) Traction Control Switch (C280) Connector, Harness Side	(-)
     GND - GD184 (BLACK/GRAY) - Pin 2	Ground

   • Is the resistance less than 3 ohms?

     Yes	No
     Go to  W8.	REPAIR the circuit.

6. W6: CHECK THE LED CONTROL CIRCUIT FOR A SHORT TO GROUND
   • Ignition OFF.
   • ABS Module connector disconnected. (C135)
   • Measure the resistance between:

     (+) Traction Control Switch (C280) Connector, Harness Side	(-)
     TCIL - CCA10 (WHITE/BROWN) - Pin 5	Ground

   • Is the resistance greater than 10, 000 ohms?

     Yes	No
     Go to  W7.	REPAIR the circuit.

7. W7: CHECK THE TRACTION CONTROL SWITCH SIGNAL CIRCUIT FOR A SHORT TO GROUND
   • Measure the resistance between:

     (+) Traction Control Switch (C280) Connector, Harness Side	(-)
     TCS - CCA15 (YELLOW/GRAY) - Pin 6	Ground

   • Is the resistance greater than 10, 000 ohms?

     Yes	No
     INSTALL a new traction control switch. TEST the system for normal operation. If the concern is still present, Go to  W8.	REPAIR the circuit.

8. W8: CHECK FOR CORRECT ABS MODULE OPERATION
   • Ignition OFF.
   • Disconnect and inspect the ABS module connector (if not previously disconnected).
   • Repair:
     • corrosion (install new connector or terminal - clean module pins)
     • damaged or bent pins - install new terminals or pins
     • pushed-out pins - install new pins as necessary
   • Reconnect the ABS module connector. Make sure it seats and latches correctly.
   • Operate the system and determine if the concern is still present.
   • Is the concern still present?

     Yes

     No

     INSTALL a new ABS module. CHECK OASIS for any applicable Technical Service Bulletins TSBs. If a TSB exists for this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSBs address this concern, INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) AND STABILITY CONTROL . ORDER a replacement ABS module and INCLUDE the RVC on the form. If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form. When complete, SELECT the "X" in the top right corner to CLOSE this procedure.

     The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues. If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form. When complete, SELECT the "X" in the top right corner to CLOSE this procedure.
