Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is necessary when installing a new HCU or ABS module.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

2.

Remove the LH headlamp assembly. Refer to: Headlamp Assembly .

3.

Disconnect the ABS module electrical connector.

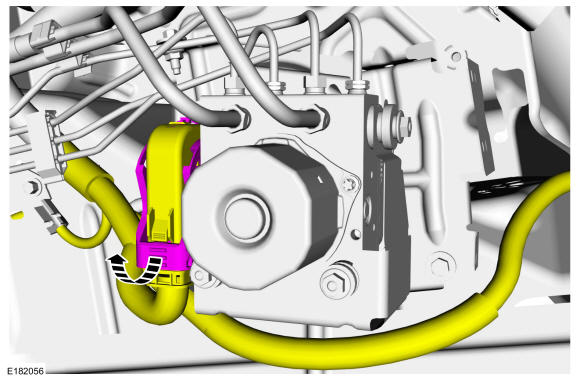

GFD73545

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Make sure that all openings are sealed.

Disconnect the 6 brake tube fittings.

Torque: 159 lb.in (18 Nm)

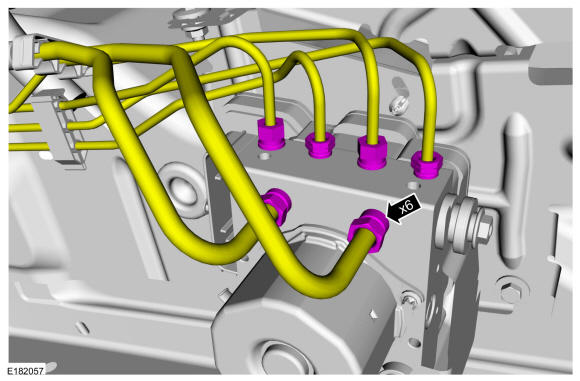

GFD73546

Courtesy of FORD MOTOR COMPANY

5.

Remove the 3 nuts and the HCU.
Torque: 177 lb.in (20 Nm)

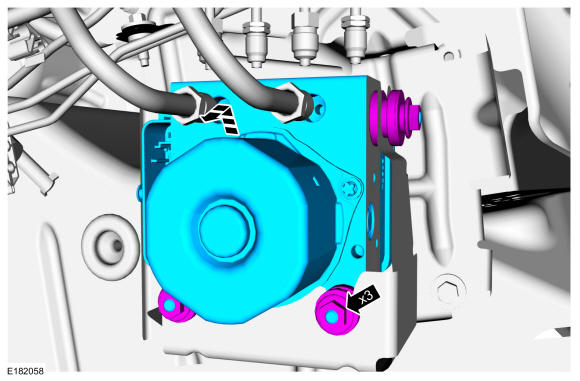

GFD73547

Courtesy of FORD MOTOR COMPANY
