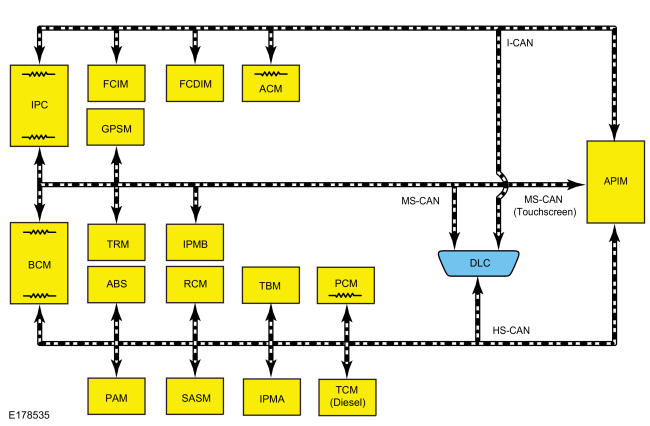

System Diagram
Module Network Chart
| Module Name | Network Type |
|---|---|
| APIM (if equipped) | HS-CAN |
| MS-CAN (Touchscreen only) | |
| I-CAN | |
| ABS module | HS-CAN |
| ACM | I-CAN |
| BCM | HS-CAN |
| MS-CAN | |
| FCIM (if equipped) | I-CAN |
| FCDIM | I-CAN |
| GPSM (if equipped) | MS-CAN |
| IPC | MS-CAN |
| I-CAN | |
| IPMA (if equipped) | HS-CAN |
| IPMB (if equipped) | MS-CAN |
| PAM (if equipped) | HS-CAN |
| PCM | HS-CAN |
| RCM | HS-CAN |
| SASM | HS-CAN |
| TRM (if equipped) | MS-CAN |
| TBM (if equipped) | HS-CAN |
| TCM (diesel only) | HS-CAN |
