Cruise Control System
Cruise Control System

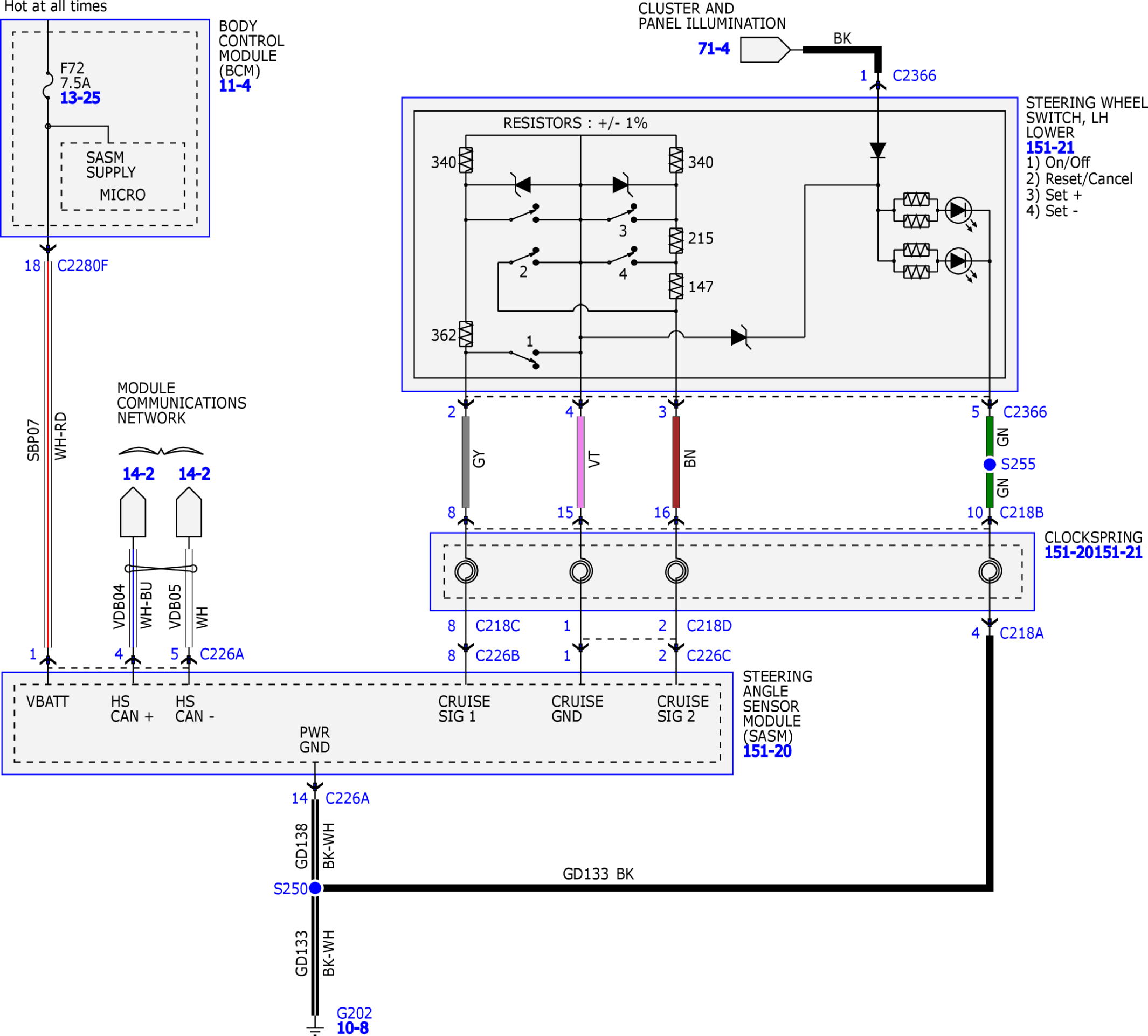

Fig 1: Cruise Control System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
