System Diagram

WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The TPM module is also known as Radio Transceiver Module (RTM).

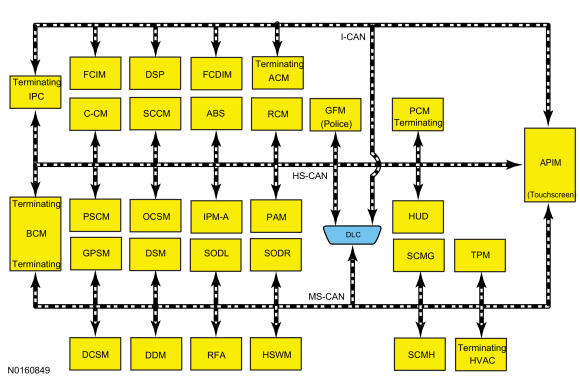

GFD111928Courtesy of FORD MOTOR COMPANY
