Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
The FPDM assembly is located beneath the rear seat cushion on the LH side.
- 1.
Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- 3.

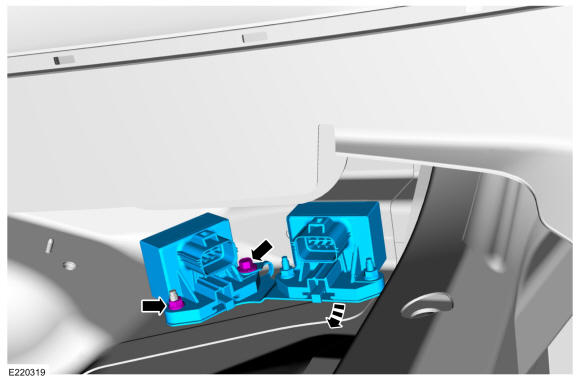

Remove the FPDM retainers, swing the FPDM assembly out from under the trim panel and then remove the FPDM assembly.
