Customer Satisfaction Program 15B20

SUBJECT

Certain 2015 Model Year Fusion S and Fusion SE

Oil Life Monitor Reset - Instrument Panel Cluster Reprogramming

PROGRAM TERMS

This program will be in effect through July 31, 2016. There is no mileage limit for this program.

EXPIRATION DATE

This Customer Satisfaction Program has an expiration date of July 31, 2016 to encourage dealers and customers to have this service performed as soon as possible.

We recommend dealers utilize their FSA VIN list name and address (available on June 15, 2015) to contact customers with affected vehicles.

AFFECTED VEHICLES

Vehicle	Model Year	Assembly Plant	Build Dates
Fusion (S & SE Models)	2015	Hermosillo	July 14, 2014 through February 7, 2015
Fusion (S & SE Models)	2015	Flat Rock	June 4, 2014 through February 13, 2015

Affected vehicles are identified in OASIS. In addition, for a list of vehicles assigned to your dealership, visit https://web.fsavinlists.dealerconnection.com . This information will be available on June 1, 2015.

REASON FOR THIS PROGRAM

In certain 2015 Model Year Fusion S and Fusion SE vehicles, the oil change reminder pop-up message (which first appears at 10,000 miles) in the instrument cluster does not reset when the customer holds the "OK" key to reset the oil life to 100%. The menu pop-up goes away for that key cycle (when the "OK" key is selected), but reappears upon each key cycle.

This inability to reset the oil life monitor has no effect on the operation or driveability of the vehicle.

SERVICE ACTION

Dealers are to reprogram the Instrument Cluster Panel software using IDS software 95.02 or later to correct this issue. This service must be performed on all affected vehicles at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters are expected to be mailed the week of June 8, 2015. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances and Parts Requirements
Attachment III: Technical Information

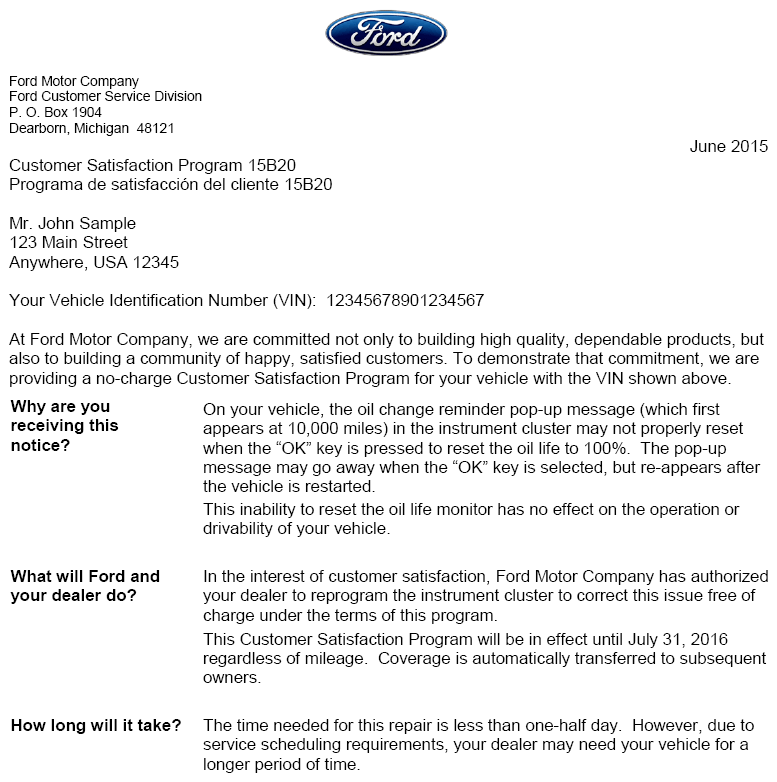

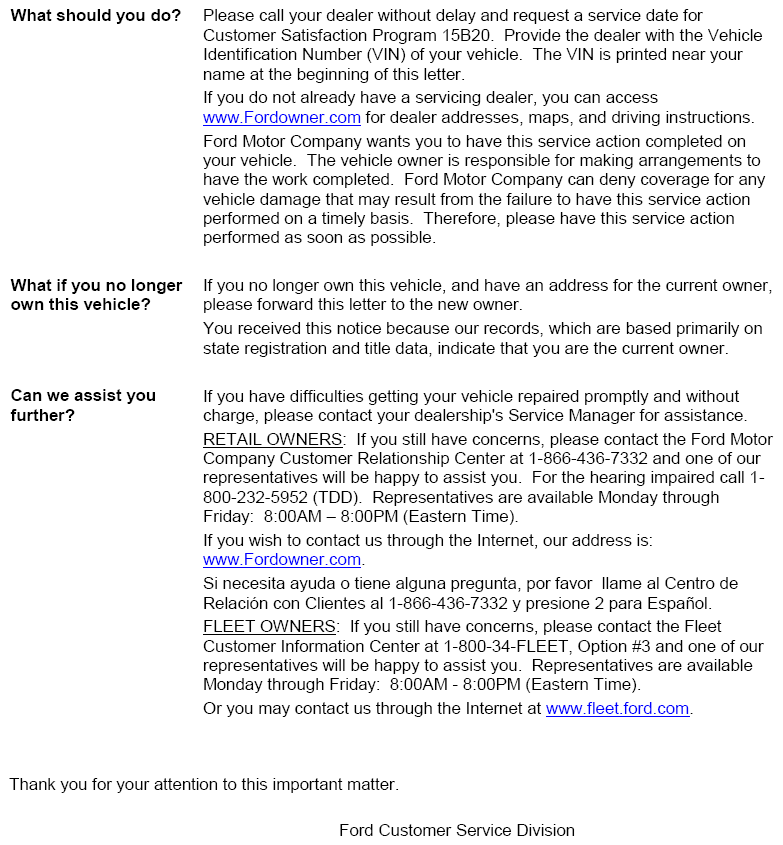

Owner Notification Letter

QUESTIONS & ASSISTANCE

Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621

OASIS ACTIVATED?

Yes, OASIS will be activated on June 1, 2015.

FSA VIN LIST ACTIVATED?

Yes, FSA VIN list will be available through https://web.fsavinlists.dealerconnection.com on June 1, 2015. Owner names and addresses will be available by June 15, 2015.

NOTE: Your FSA VIN list may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this program is a violation of law in several states, provinces, and countries. Accordingly, you must limit the use of this listing to the follow-up necessary to complete this service action.

STOCK VEHICLES

Correct all affected units in your new vehicle inventory before delivery.
Use OASIS to identify any affected vehicles in your used vehicle inventory.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.

TITLE BRANDED / SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

ADDITIONAL LABOR TIME AND/OR PARTS

Contact the Special Service Support Center (SSSC) if you have any of the following:

Damage that you believe was caused by the covered condition.
A condition that requires additional labor and/or parts to complete the repair.
Aftermarket equipment or non-Ford modifications to the vehicle which might prevent the repair of the covered condition.

Contact the SSSC prior to the repair. Please be prepared to provide your requested additional warranty part cost, estimated additional labor time, and dealer specific labor rate. Requests for approval after completion of the repair may not be granted. Ford Motor Company reserves the right to deny coverage for related damage in cases where the vehicle owner has not had this service action performed on a timely basis. Additional related damage parts are subject to random selection for return to the Ford Warranty Parts Analysis Center (WPAC).

RENTAL VEHICLES

The use of rental vehicles is not approved for this program.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE) or One Warranty Solution (OWS).
- DWE: refer to ACESII manual for claims preparation and submission information.
- OWS: when entering claims in DMS software, select claim type 31: Field Service Action. The FSA number (15B20) is the sub code.
Refer to ACESII manual for claims preparation and submission information.
Additional labor and/or parts must be claimed as related damage on a separate repair line from which the FSA is claimed. Additional labor and /or parts require prior approval from the Special Service Support Center.
PROGRAM TERMS: This program will be in effect through July 31, 2016. There is no mileage limit for this program.

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
Reprogram the instrument panel cluster using IDS version 95.02 or higher	15B20B	0.3 Hours

PARTS REQUIREMENTS / ORDERING INFORMATION

Parts are not required to complete this repair.

OVERVIEW

In certain 2015 Model Year Fusion S and Fusion SE vehicles, the oil change reminder pop-up message (which first appears at 10,000 miles) in the instrument cluster does not reset when the customer holds the "OK" key to reset the oil life to 100%. The menu pop-up goes away for that key cycle (when the "OK" key is selected), but reappears upon each key cycle. This inability to reset the oil life monitor has no effect on the operation or driveability of the vehicle.

Dealers are to reprogram the Instrument Panel Cluster software using IDS software 95.02 or higher to correct this issue. This service must be performed on all affected vehicles at no charge to the vehicle owner.

SERVICE PROCEDURE

Module Reprogramming

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

Reprogram the Instrument Panel Cluster using IDS release 95.02 or higher.

NOTE: Calibration files may also be obtained at www.motorcraftservice.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedure.

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12V battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, headlamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Recovering a module when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!

Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
Disconnect the VCM from the Data Link Connector (DLC) and the IDS.
Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
Once the session is loaded, the failed process should resume automatically.
If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
Follow all on-screen prompts/instructions.
The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.
