Fuel Level Sensor Assembly Mounted Sender

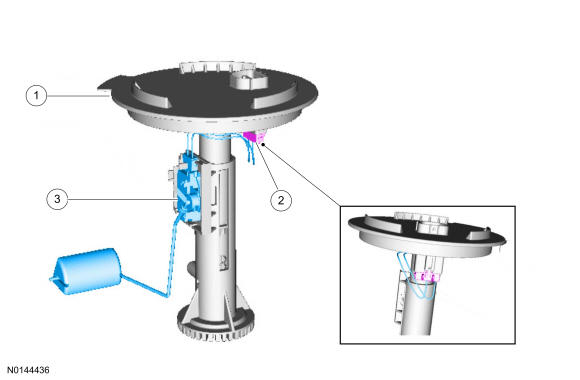

GFD58478Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9275 Fuel level sensor assembly
2 - Fuel level sender electrical connector (part of 9A299)
3 9A299 Fuel level sender
