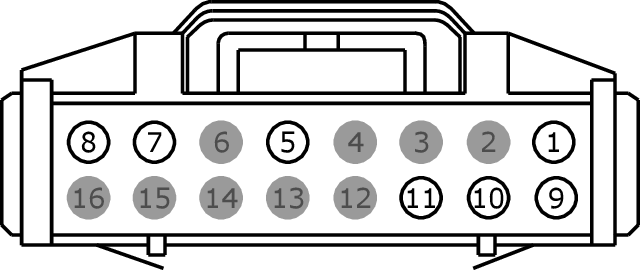

Connector End View (C218C) - CLOCKSPRING
Connector: C218C
Description
CLOCKSPRING
Color
Harness
PIA
Base Part #
8v5t-14489-ama
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRH03 (BN) |
20 |
CTRL MOD. - STEERING WHEEL # HORN |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
RME54 (WH-VT) |
20 |
GROUND - CROSS CAR BEAM # 2ND STUD |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CLN04 (BU-BN) |
20 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
8 |
VES10 (WH) |
20 |
SWITCH - SPEED CONTROL COMMAND (SCCS) |
|
|
9 |
RES08 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SPEED CONTROL COMMAND RETURN (SCCSRTN) |
|
|
10 |
VME14 (GY-YE) |
20 |
CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO |
|
|
11 |
RME24 (BU-WH) |
20 |
SWITCH - REDUNDANT AUDIO |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1466 |
Service Part Number: FU2Z-14S411-AEA Gauge: 20 Pin material: Tin (greased) Cavities: 16 Vehicle Uses Clockspring |
