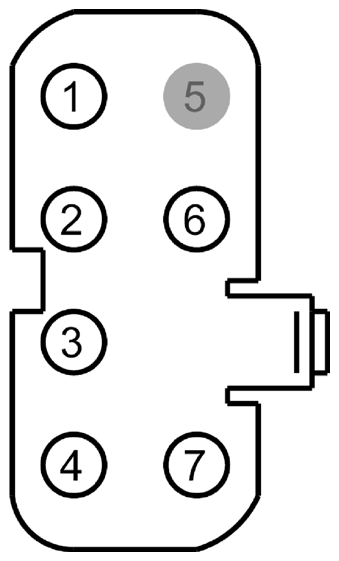

Window Control Switch, Left Rear Connector End View (C717)

Fig 1: Identifying Window Control Switch, Left Rear Connector (C717)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW22 (GN-VT)	12	SWITCH - POWER WINDOW REAR LEFT # UP
2	RPW07 (GY-OG)	12	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN
3	CPW21 (BN)	12	SWITCH - POWER WINDOW REAR LEFT # DOWN
4	GD134 (BK-VT)	20	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT (OBSOLETE)
5	*	*	Not Used
6	CPW22 (GN-VT)	12	SWITCH - POWER WINDOW REAR LEFT # UP
7	CPW21 (BN)	12	SWITCH - POWER WINDOW REAR LEFT # DOWN

Available Pigtail Kits

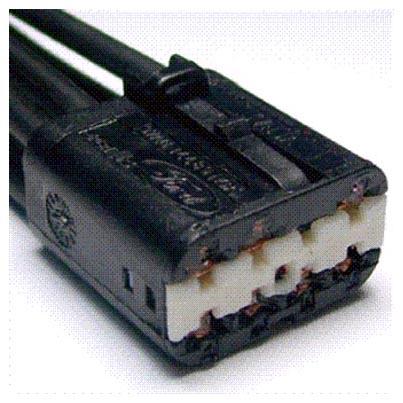

Pigtail Kit Part Number WPT-1267	Service Part Number: 3U2Z-14S411-PKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Sliding Rear Window Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Traction Control
Pigtail Kit Part Number WPT-578	Service Part Number: 3U2Z-14S411-PKA  Gauge: 14  Pin material: Tin  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Window - Passenger (Front)
