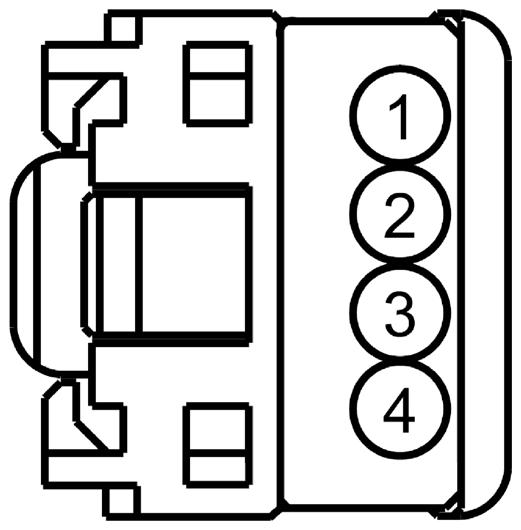

Window Control Switch, Left Rear Connector End View (C701)

Fig 1: Identifying Window Control Switch, Left Rear Connector (C701)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW06 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION
2	CPW16 (BK)	22	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP
3	CPW15 (BK)	22	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN
4	RPW07 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN

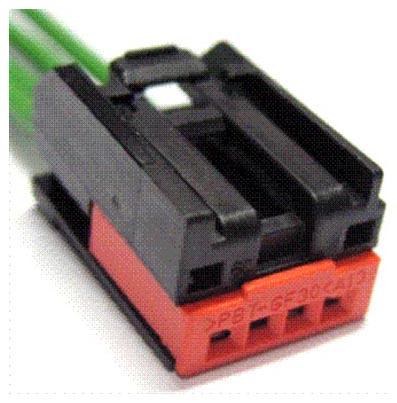

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
