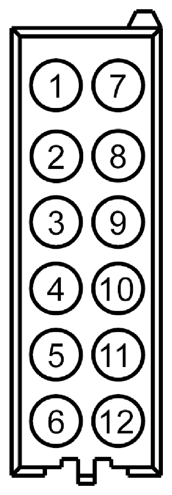

Parking Assist Control Module (PAM) Connector End View (C9071B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | |
| 2 | LMP06 (VT-GY) | 26 | CTRL MOD. - PARKING AID # SENSORS FRONT + | |
| 3 | RMP08 (VT-OG) | 22 | CTRL MOD. - PARKING AID # SOUNDER FRONT - | |
| 4 | CMP08 (GN-BU) | 22 | CTRL MOD. - PARKING AID # SOUNDER FRONT + | |
| 5 | VMP11 (BU-GN) | 26 | SENSOR - PARKING AID # FRONT # (LEFT OUTER) | |
| 6 | VMP10 (WH-BU) | 22 | SENSOR - PARKING AID # FRONT # (LEFT INNER) | |
| 7 | VMP12 (BU-GY) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | |
| 8 | VMP13 (BU-OG) | 26 | SENSOR - PARKING AID # FRONT # (RIGHT OUTER) | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |

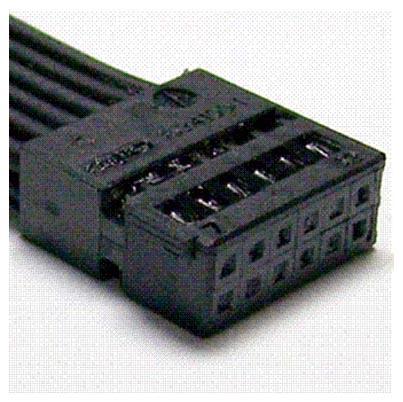

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1178 | Service Part Number: BU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses
|
