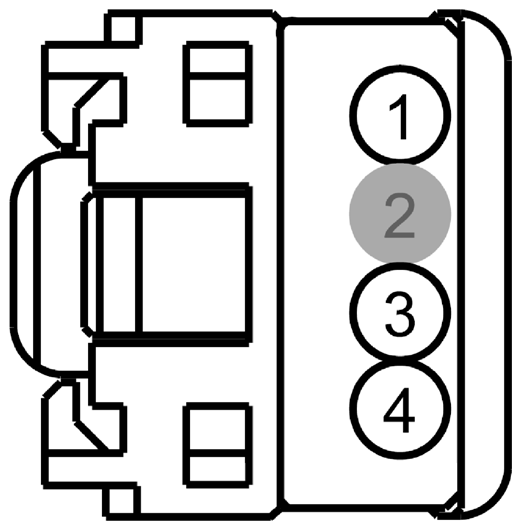

Master Window Control Switch Connector End View (C535)

Fig 1: Identifying Master Window Control Switch Connector (C535)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP17 (BK)	20	FUSE - 17 OR CIRCUIT BREAKER
2	*	*	Not Used
3	VPW32 (BK)	22	CTRL MOD. - REAR DOOR CTRL MOD. DRIVER SIDE LIN BUS
4	GD135 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (OBSOLETE)

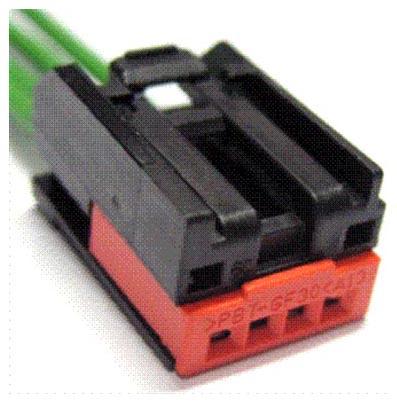

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
