Heated Seat Module, Driver Side Front Connector End View (C359)

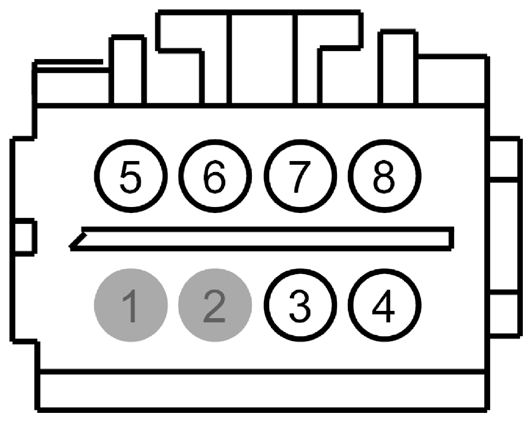

Fig 1: Identifying Heated Seat Module, Driver Side Front Connector (C359)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	* (YE)	*	GROUND - PILLAR D LEFT
5	* (BN)	*	FUSE OUTPUT OR CIRCUIT BREAKER
6	* (BK)	*	SWITCH - SEATS HEATER
7	* (YE-BK)	*	DRIVER HEATER FEED
8	*	*	Not Used
