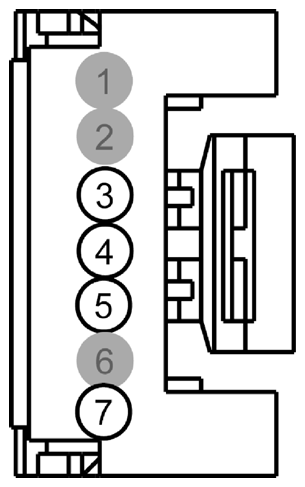

Front Distance Sensing Module (FDSM) Connector End View (C9024)

Fig 1: Identifying Front Distance Sensing Module Connector (C9024)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
5	CMF01 (WH-BU)	22	CTRL MOD. - FORWARD SENSING # INDICATOR 1 +
6	*	*	Not Used
7	GD113 (BK)	22	GROUND - COWL TOP RIGHT
