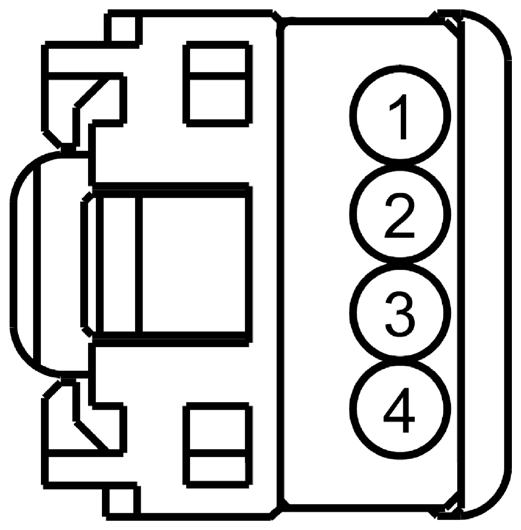

Driver Door Lock Control Switch Connector End View (C505)

Fig 1: Identifying Driver Door Lock Control Switch Connector (C505)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL42 (BK)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK
2	RPL63 (BK)	20	CTRL MOD. - DOOR LOCK # LATCH DRIVER
3	CPL43 (BK)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK
4	CLN17 (BK)	22	SWITCH - IP/SWITCH ILLUMINATION

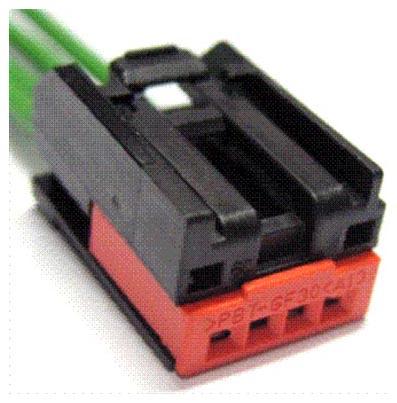

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
