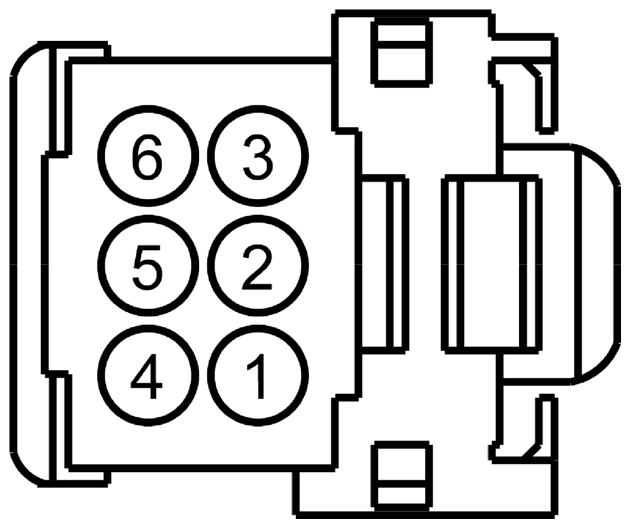

A/C Control Switch Connector End View (C3462)

Fig 1: Identifying A/C Control Switch Connector (C3462)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CH425 (GN-BN)	22	SWITCH - AC HEAD PRESSURE (ACPSW)
2	GD311 (BK-WH)	22	GROUND - CONSOLE FRONT CENTER
3	CH425 (BN)	22	SWITCH - AC HEAD PRESSURE (ACPSW)
4	*	*	Not Used
5	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION
6	CH434 (BN)	22	SWITCH - CLIMATE MODE # AC

Available Pigtail Kits

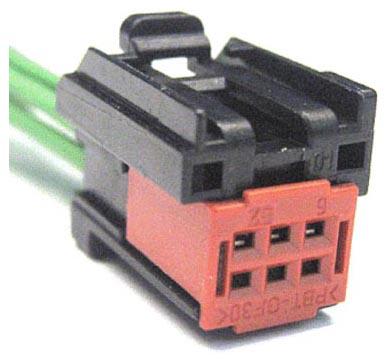

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

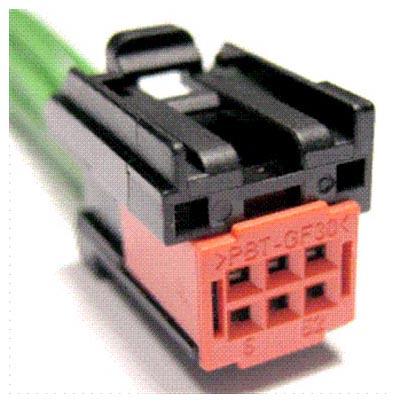

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
