Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position aside the RH  load space trim panel.
    G09739829

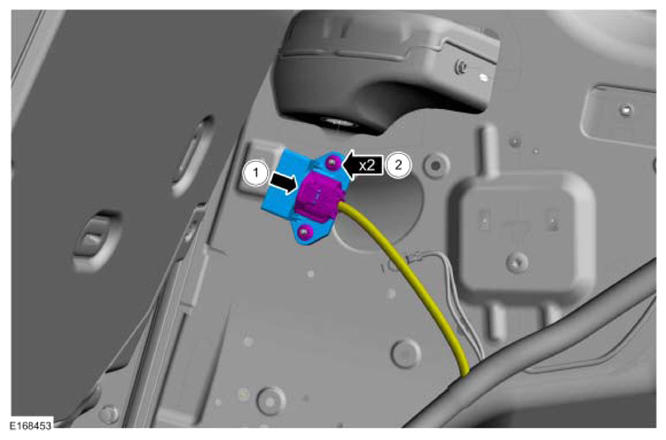

    1. Disconnect the FPDM  electrical connector.
    2. Remove the FPDM  retaining nuts and the FPDM  .

      Torque:  89 lb.in (10 Nm)

      G09738605
