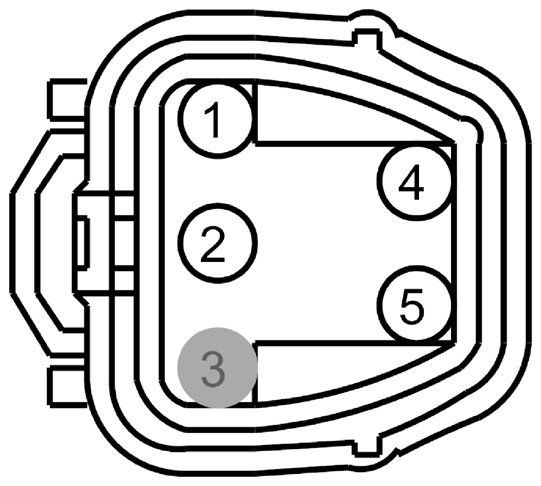

Fuel Pump (FP) Module Connector End View (C3127)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RMC32 (GN-BU) | 22 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 2 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | |
| 3 | * | * | Not Used | |
| 4 | RE515 (WH-BN) | 14 | FUEL PUMP RETURN (FPRTN) | |
| 5 | CE515 (YE-GY) | 14 | FUEL PUMP POWER (FPPWR) |

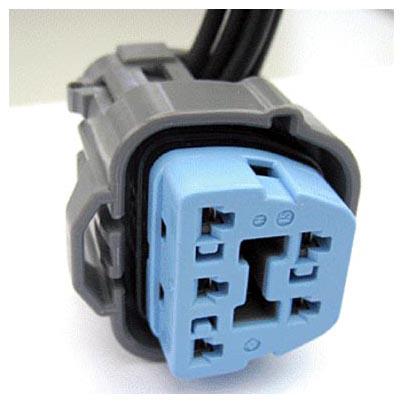

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-909 | Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses
|
