Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

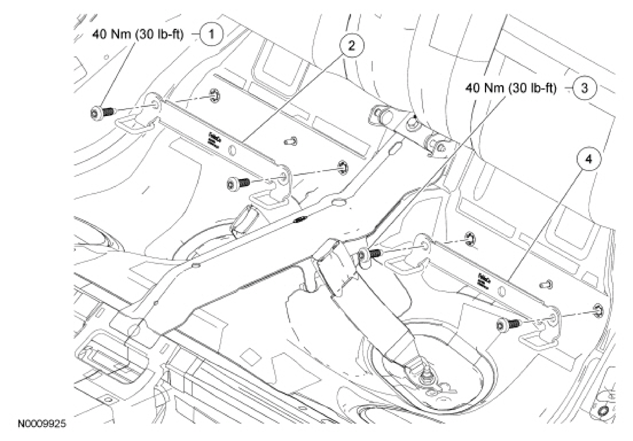

Fig 1: Identifying Child Safety Seat Tether Anchor Latch Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Lower anchors and tethers for children bolt (part of 601B28) (2 required)
2	601B28	Lower anchors and tethers for children
3	-	Lower anchors and tethers for children bolt (part of 601B28) (2 required)
4	601B28	Lower anchors and tethers for children
