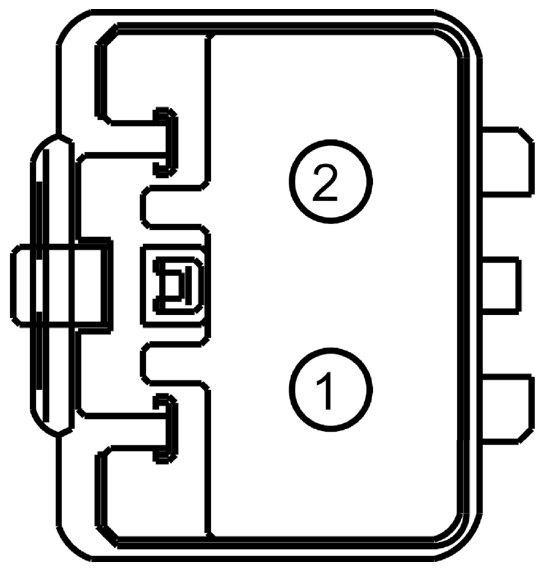

Rear Window Defrost Grid Connector End View (C402)

Fig 1: Identifying Rear Window Defrost Grid Connector (C402)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRD17 (BK-GY)	12	RELAY - REAR WINDOW DEFROST GRID
2	GD110 (BK-WH)	12	GROUND - COMBINED REAR LAMP RIGHT

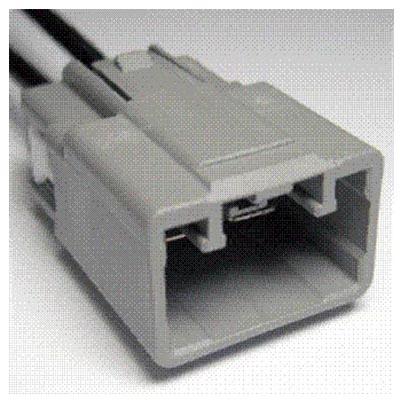

Available Pigtail Kits
Pigtail Kit Part Number WPT-1190	Service Part Number: 3U2Z-14S411-EFAB  Gauge: 10  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Terminal - Rear Window Defroster Grid
