Passive Anti-Theft Transceiver Connector End View (C2007)

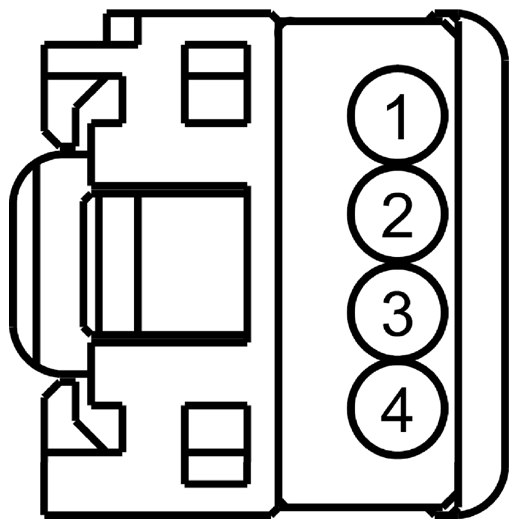

Fig 1: Identifying Passive Anti-Theft Transceiver Connector (C2007)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP36 (BU-BN)	22	FUSE - 36 OR CIRCUIT BREAKER
2	GD116 (BK-VT)	22	GROUND - CROSS CAR BEAM # 3RD STUD
3	VRT23 (VT)	26	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN)
4	VRT24 (YE)	26	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL

Available Pigtail Kits

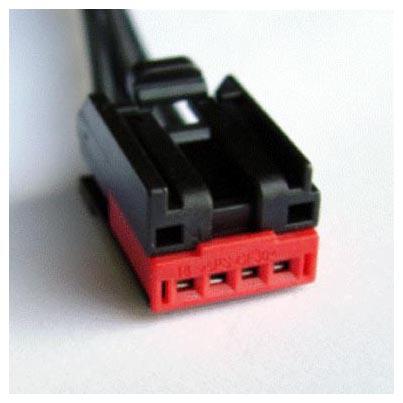

Pigtail Kit Part Number WPT-465	Service Part Number: 3U2Z-14S411-PRA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)

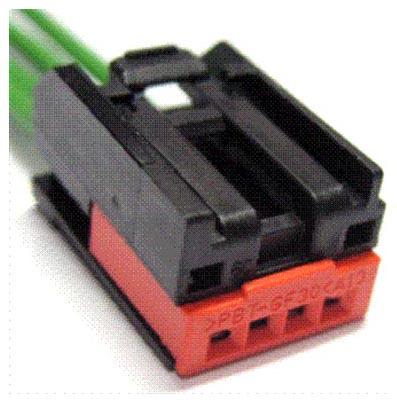

Pigtail Kit Part Number WPT-1139	Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
