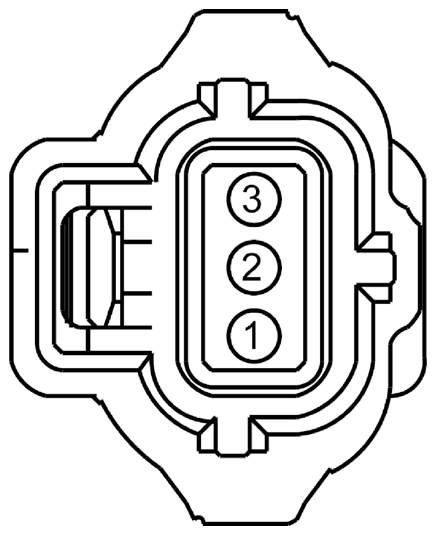

Brake Fluid Level Switch Connector End View (C124)

Fig 1: Identifying Brake Fluid Level Switch Connector (C124)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD129 (BK-YE)	20	GROUND - HEADLAMP PANEL LEFT
2	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID
3	RMC19 (YE-GY)	20	SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK)

Available Pigtail Kits

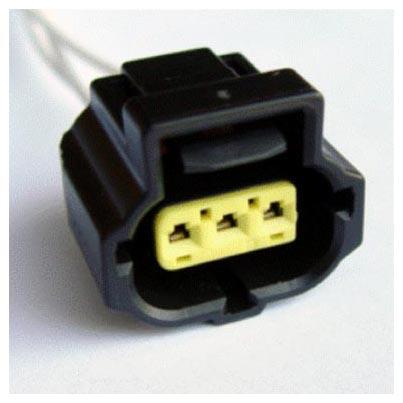

Pigtail Kit Part Number WPT-118	Service Part Number: 1U2Z-14S411-TA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position

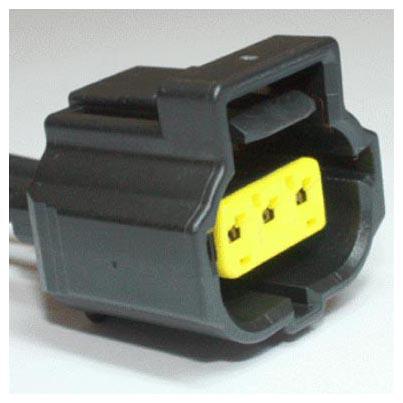

Pigtail Kit Part Number WPT-777	Service Part Number: 3U2Z-14S411-ESAA  Gauge: 18  Pin material: Gold  Cavities: 3  Vehicle Uses Pretensioner - Seat Belt (Passenger)
