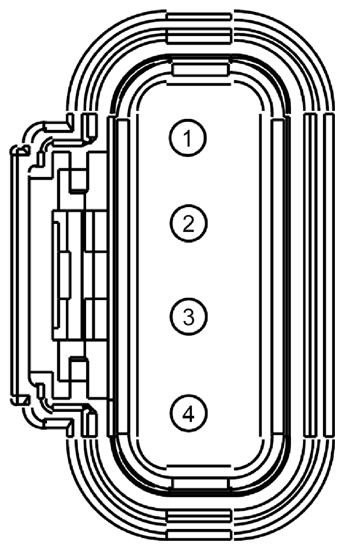

Blower Motor Speed Control Connector End View (C2185)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD114 (BK-BU) | 12 | GROUND - CROSS CAR BEAM | |
| 2 | CH426 (YE-OG) | 12 | SWITCH - FRONT BLOWER # POSITION 0 (OFF OR IDLE) | |
| 3 | VH101 (WH-VT) | 22 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
| 4 | CH402 (YE-GN) | 12 | RELAY - FRONT BLOWER |

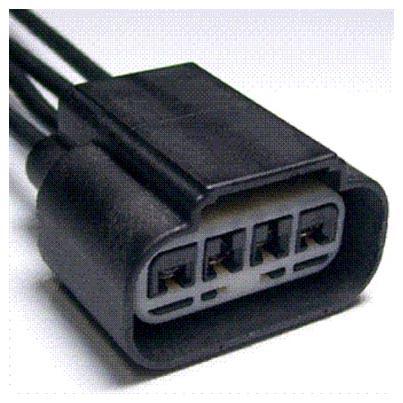

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1252 | Service Part Number: CU2Z-14S411-FA Gauge: 12 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
