HO2S and CMS
NOTE:
For HO2S
removal and installation, refer to HEATED OXYGEN SENSOR (HO2S) .
NOTE:
If necessary, lubricate the CMS
with penetrating and lock lubricant to assist in removal.
NOTE:
Apply anti-seize to the threads of the CMS
prior to installing.
NOTE:
The correct torque wrench setting must be calculated when using the Exhaust Gas Oxygen Sensor Socket to install the CMS
. Refer to the Torque Wrench Adapter Formulas in the illustration below
.

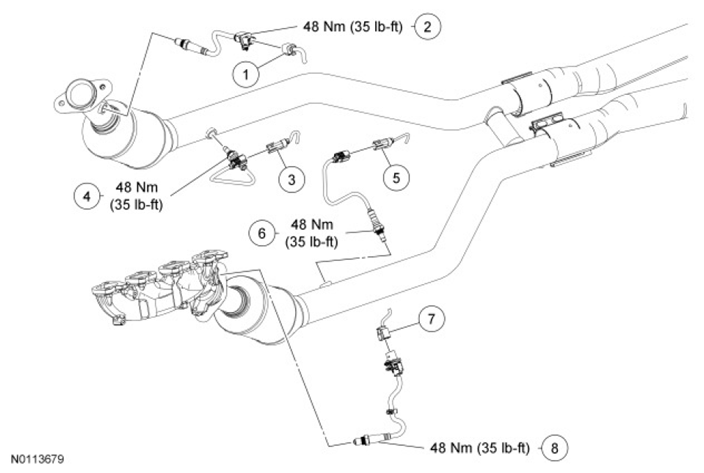

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH HO2S electrical connector |
| 2 | 9G444 | RH HO2S |
| 3 | - | RH CMS electrical connector |
| 4 | 9F472 | RH CMS |
| 5 | - | LH CMS electrical connector |
| 6 | 9F472 | LH CMS |
| 7 | - | LH HO2S electrical connector |
| 8 | 9G444 | LH HO2S |
