Electrical Short Inside The Harness

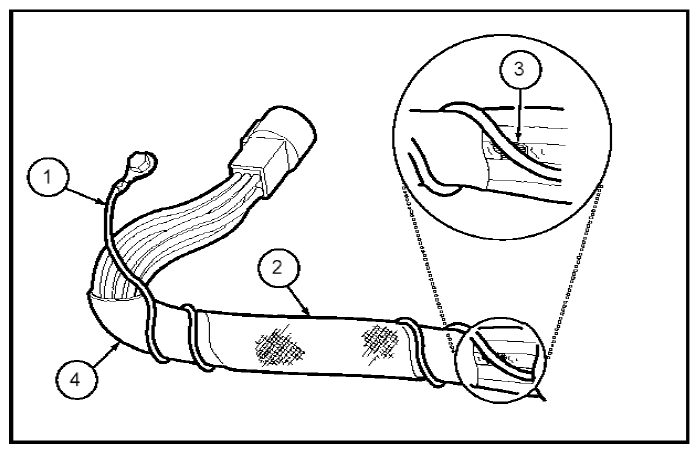

1 = Solder coated wire to ground

2 = Harness protective tape

3 = Intermittent short

Solder coated wire pierced through the insulation of another circuit.

4 = Grounding foil

Fig 1: Identifying Electrical Short Inside Harness
G09283070Courtesy of FORD MOTOR CO.
