Deformed (Enlarged) Female Terminals

1 = Enlarged

2 = Normal

Any probe entering the terminal may enlarge the contact spring opening creating an intermittent signal.

Insert the correct mating terminal (Location A) from the service kit and feel for a loose fit.

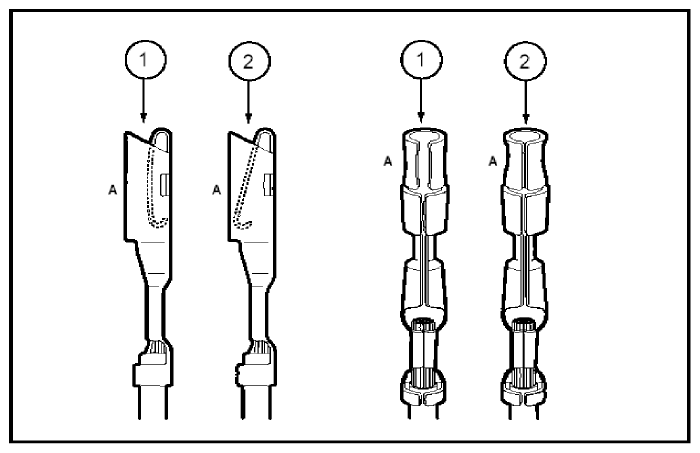

Fig 1: Identifying Enlarged And Normal Female Terminals

Courtesy of FORD MOTOR CO.
