Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.

All vehicles

NOTE: This step is only necessary if the TRM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.
Vehicles equipped with adjustable pedals
Move the pedals to the full forward (away from the driver) position.
All vehicles

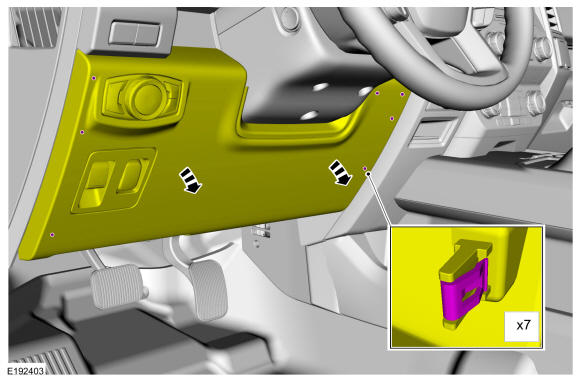

Pull outward on the steering column opening cover detaching the 7 clips and allow the cover to hinge downward.

Courtesy of FORD MOTOR COMPANY

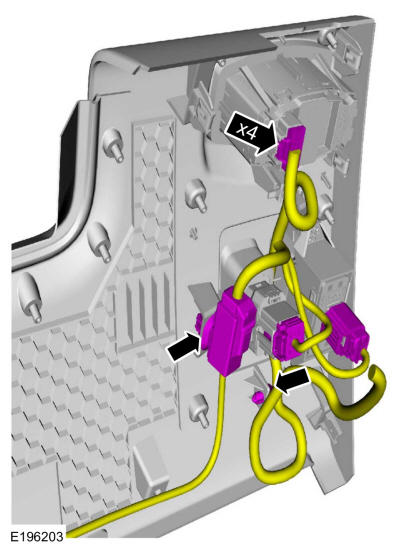

Disconnect the electrical connector(s) and the wiring retainer(s).

Courtesy of FORD MOTOR COMPANY

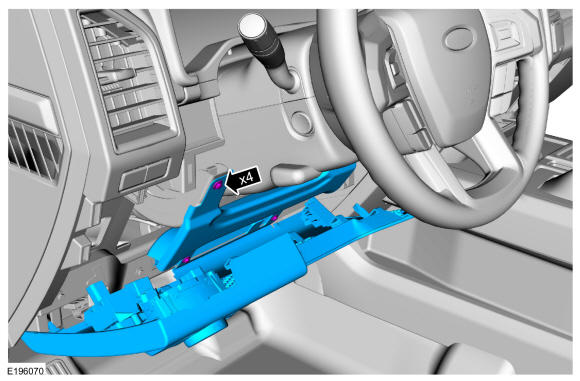

Remove the 4 bolts and the steering column opening trim panel and reinforcement.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

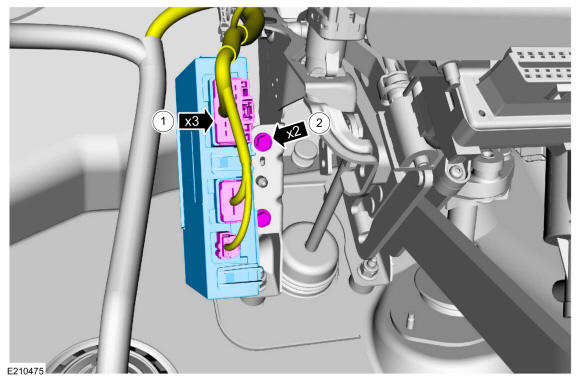

Remove the TRM.
1. Disconnect the TRM electrical connectors.
2. Remove the bolts.
  Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
