Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .

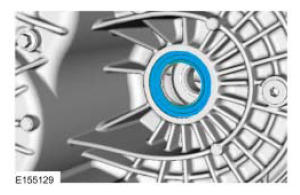

  2. G08064299

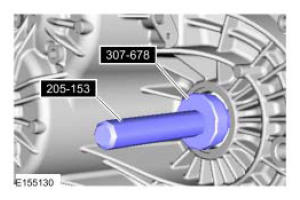

  3. Use Special Service Tool: 205-153 (T80T-4000-W) Handle  ., 307-678 Remover, Bearing Cone  .
    G08064300

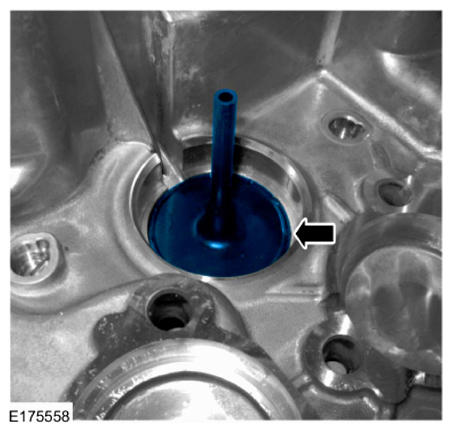

  4. NOTE: This step only applies to transmissions built after April-2013.

    Remove the oil spout.

    G09551549
