Defective Insulation Stripping

WARNING: This page is about a different variant/trim than selected.
  1. Proper crimp
  2. Insulation not removed
  3. Wire strands missing
  4. Intermittent signals through pierced insulation

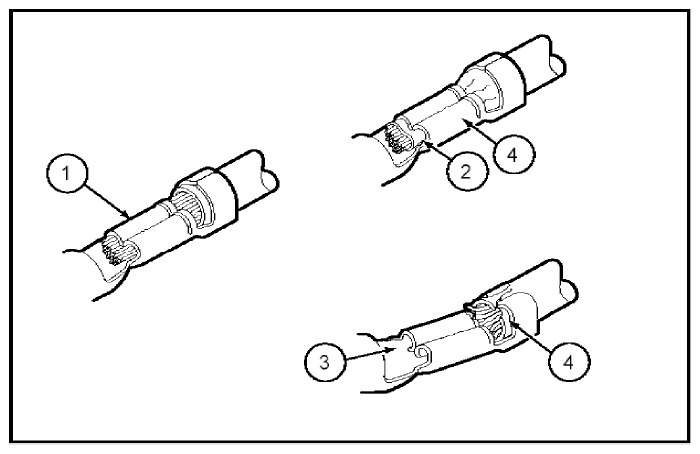

    Fig 1: Identifying Defective Insulation Stripping
    G09260732Courtesy of FORD MOTOR CO.
