RH Engine

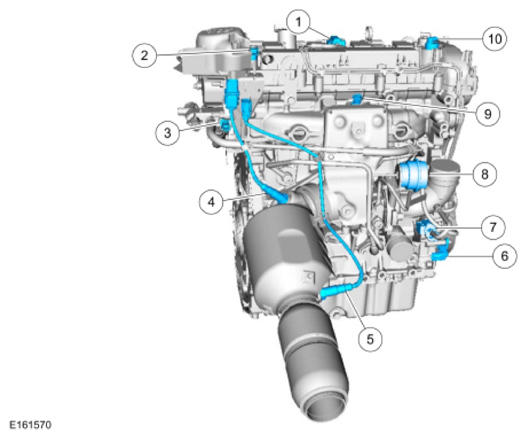

G09600494
Item Description
1 Turbocharger bypass valve solenoid
2 Exhaust CMP  sensor
3 ECT
4 HO2S
5 Catalyst monitor sensor
6 CKP  sensor
7 Turbocharger wastegate regulating valve solenoid
8 Wastegate actuator
9 CHT  sensor
10 Exhaust VCT  oil control solenoid
